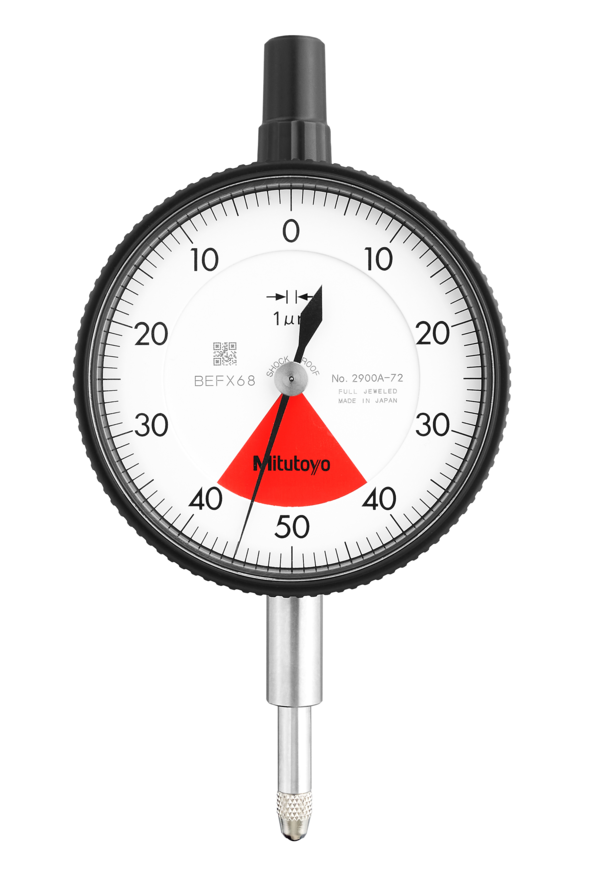

Dial Gauge, Lug Back, ISO Type One Revolution, Jewelled Bearing, Shock- & Dustproof, 0,08mm, 0,001mm 2900-72
Dial Gauge, Lug Back, ISO Type One Revolution, Jewelled Bearing, Shock- & Dustproof, 0,08mm, 0,001mm 2900-72
Dial Gauge, Lug Back, ISO Type One Revolution, Jewelled Bearing, Shock- & Dustproof, 0,08mm, 0,001mm 2900-72
Dial Gauge, Lug Back, ISO Type One Revolution, Jewelled Bearing, Shock- & Dustproof, 0,08mm, 0,001mm 2900-72
Dial Gauge, Lug Back, ISO Type One Revolution, Jewelled Bearing, Shock- & Dustproof, 0,08mm, 0,001mm 2900-72
Roll over image to zoom in Click on image to zoom
Dial Gauge, Lug Back, ISO Type One Revolution, Jewelled Bearing, Shock- & Dustproof, 0,08mm, 0,001mm 2900-72Dial Gauge, Lug Back, ISO Type One Revolution, Jewelled Bearing, Shock- & Dustproof, 0,08mm, 0,001mm 2900-72Dial Gauge, Lug Back, ISO Type One Revolution, Jewelled Bearing, Shock- & Dustproof, 0,08mm, 0,001mm 2900-72Dial Gauge, Lug Back, ISO Type One Revolution, Jewelled Bearing, Shock- & Dustproof, 0,08mm, 0,001mm 2900-72Dial Gauge, Lug Back, ISO Type One Revolution, Jewelled Bearing, Shock- & Dustproof, 0,08mm, 0,001mm 2900-72

Dial Gauge, Lug Back, ISO Type One Revolution, Jewelled Bearing, Shock- & Dustproof, 0,08mm, 0,001mm 2900-72

Mitutoyo SKU: 2900-72
List price: €167.00 Offer price: €129.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?
Graduation 0,001 mm

This is a one revolution dial indicator. It offers you the following benefits:
  • Bezel clamp and lifting lever (optional) can be attached to either right or left side.
  • No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.
  • It eliminates the possibility of reading errors due to miscounting multiple revolutions.

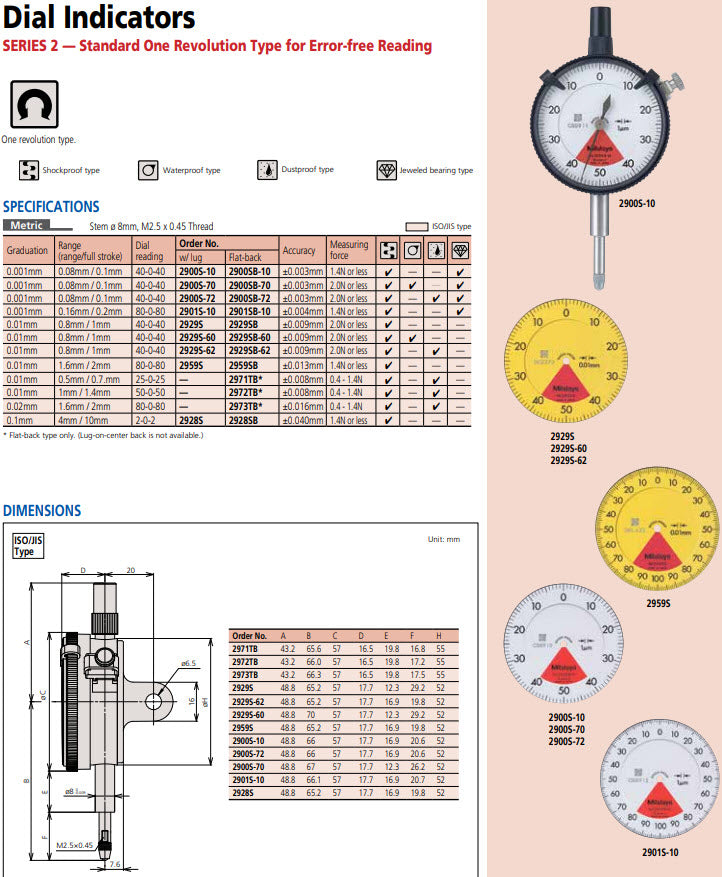

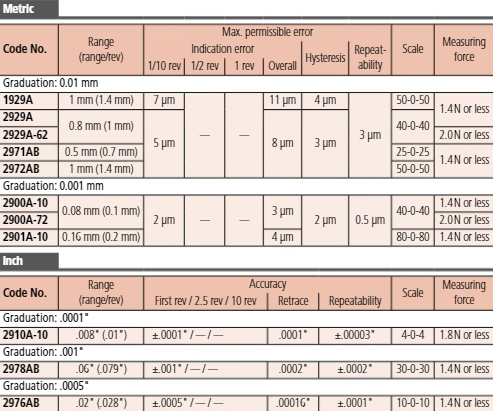

Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Functions:
ISO type
Delivered:
With certificate of inspection
Range:
0.08 mm
Plunger Stroke:
4 mm
Range
per rev.:
0.1 mm
Dial reading:
40-0-40
Graduation:
0.001 mm
Measuring force:
0.4-2 N
MPE any 1/10
revolution:
2 µm
MPE measuring range:
3 µm
H MPE
(Hysteresis):
2 µm
R MPE
(Repeatability):
1 µm
Mass:
150 g
Stem:
8 mm
Contact point:
Carbide tipped, thread: M 2.5 x 0.45 mm
One revolution:
Yes
Shockproof:
Yes

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
