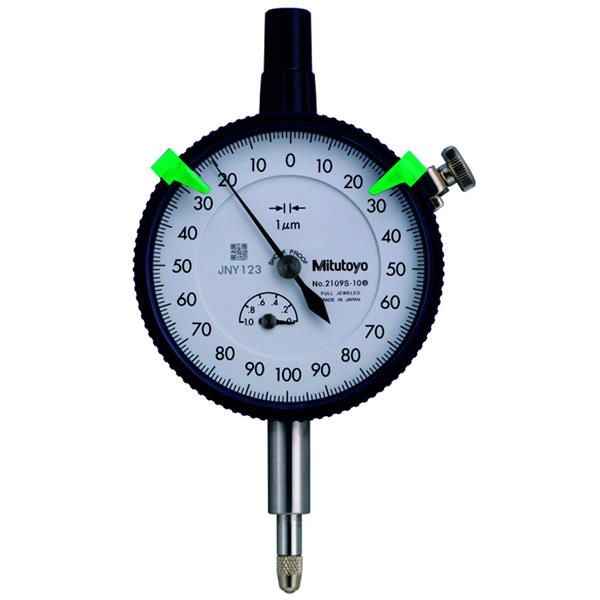

Dial Gauge, Lug Back, ISO Type Jewelled Bearing, Shockproof, 1mm, 0,001mm 2109S-10

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ISO Type Jewelled Bearing, Shockproof, 1mm, 0,001mm 2109S-10

Name: Dial Gauge, Lug Back, ISO Type Jewelled Bearing, Shockproof, 1mm, 0,001mm 2109S-10
Brand: Mitutoyo
SKU: 2109S-10
Price: 64.0 EUR
Availability: InStock

MitutoyoSKU: 2109S-10

Price:

€64.00 €95.10

Quantity:

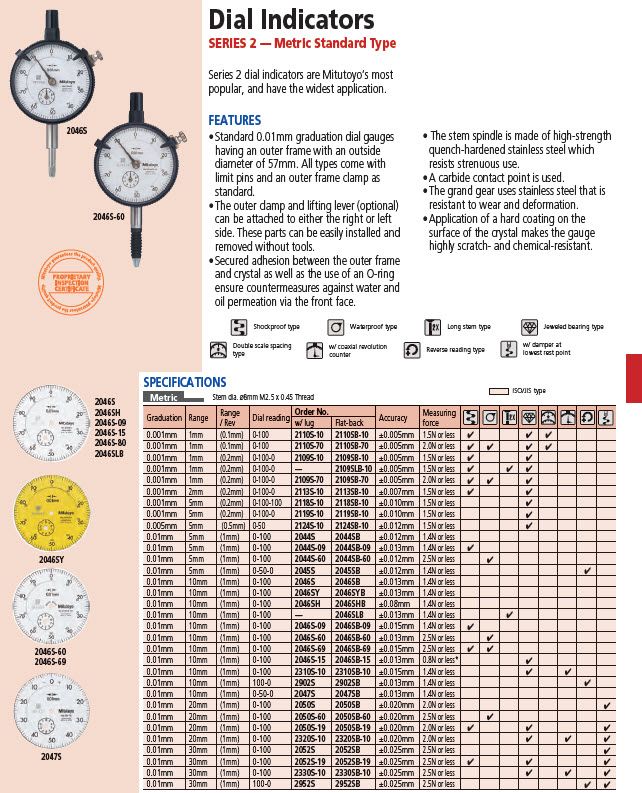

Standard Type, 1 mm Range, 0,001 mm Graduation

This is a standard dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Product Information
Part Number	2109S-10
Measuring Range	1mm
Graduation	.001mm
Accuracy	.005mm
Unit of Measurement	Metric
Measuring Force	≤1.5N
Type	Lug Back
Repeatability	.0005mm
Dial Reading	0-100-0

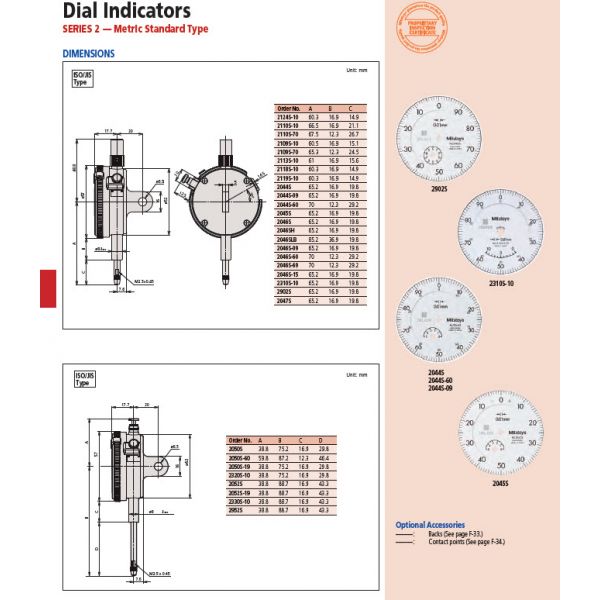

Dial Face Size Ø	57mm
Hysteresis	.002mm
Stem	8mm
Stem Diameter	8mm
Back	Flat back
Range Per Rev	0.2mm
Scale	0-100-0
Calibration Code	CAL14 B1
Stem	8mm

Digital/Analog:	Analog
Inch-Metric:	Metric
Functions:	ISO type
Delivered:	With certificate of inspection
Range:	1 mm
Range per rev.:	0.2 mm
Dial reading:	0-100-0
Graduation:	0.001 mm
Measuring force:	0,4-1,5
MPE any 1/10 revolution:	2.5 µm
MPE any 1/2 revolution:	4 µm
MPE any 1 revolution:	4.5 µm
MPE measuring range:	5 µm
H MPE (Hysteresis):	2 µm
R MPE (Repeatability):	1 µm
Mass:	139 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Balanced dial:	Yes
Shockproof:	Yes
