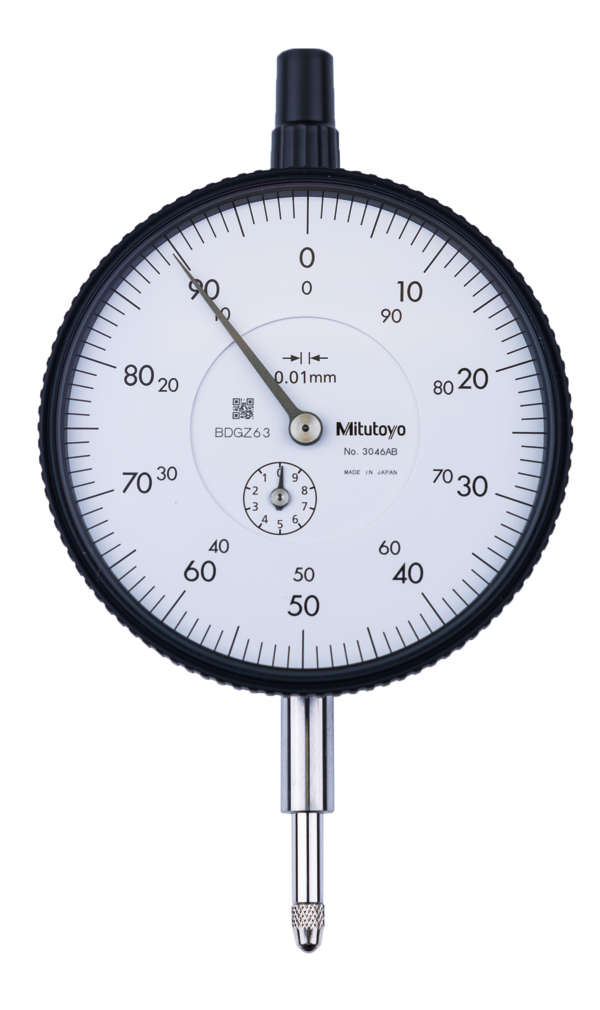

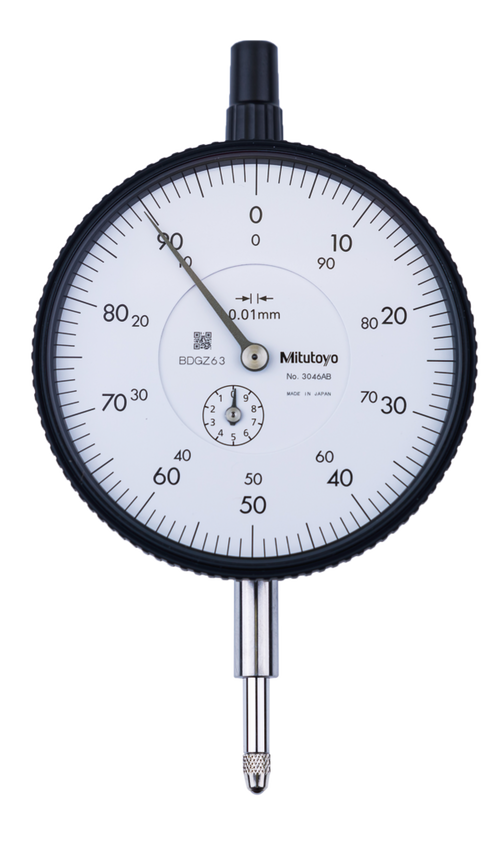

Dial Gauge, Lug Back, ISO Type 10mm, 0,01mm 3046A Scale ±0-100

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ISO Type 10mm, 0,01mm 3046A Scale ±0-100

Name: Dial Gauge, Lug Back, ISO Type 10mm, 0,01mm 3046A Scale ±0-100
Brand: Mitutoyo
SKU: 3046A
Price: 127.0 EUR
Availability: InStock

MitutoyoSKU: 3046A

Price:

€127.00 €169.00

Quantity:

This is a standard dial indicator. It offers you the following benefits:

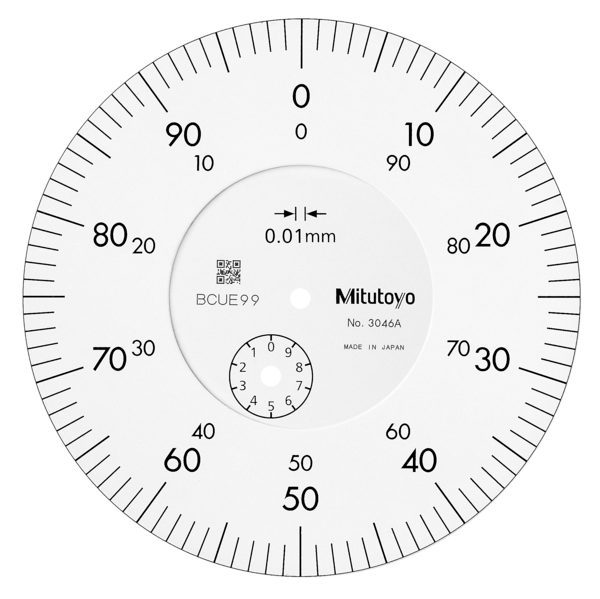

Large-diameter dial face ø = 78 mm for easy reading
0,01 / 0,001 mm graduation

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	3046A
Measuring Range	10mm
Accuracy	[".015mm"]
Graduation	.01mm
Accuracy	.015mm
Unit of Measurement	Metric
Measuring Force	≤1.4N
Type	Lug Back
Repeatability	.003mm
Dial Reading	+/-0-100
Dial Face Size Ø	78mm
Hysteresis	.003mm
Stem	8mm
Stem Diameter	8mm
Back	Centre Lug Back
Range Per Rev	1mm
Scale	±0-100
Calibration Code	CAL14 B1
Stem	8mm

Digital/Analog:	Analog
Inch-Metric:	Metric

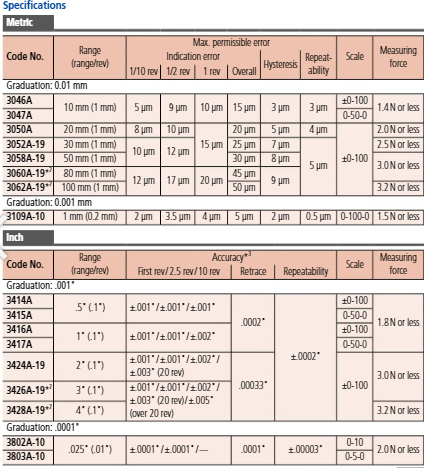

Type:	EN ISO Standard
Delivered:	With certificate of inspection
Range:	10 mm
Range per rev.:	1 mm
Dial reading:	±0-100
Graduation:	0.01 mm
MPE any 1/10 revolution:	5 µm
MPE any 1/2 revolution:	9 µm
MPE any 1 revolution:	10 µm
MPE measuring range:	15 µm
H MPE (Hysteresis):	3 µm
R MPE (Repeatability):	3 µm
Measuring force:	0,4-1,4 N
Mass:	252 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:	Yes
