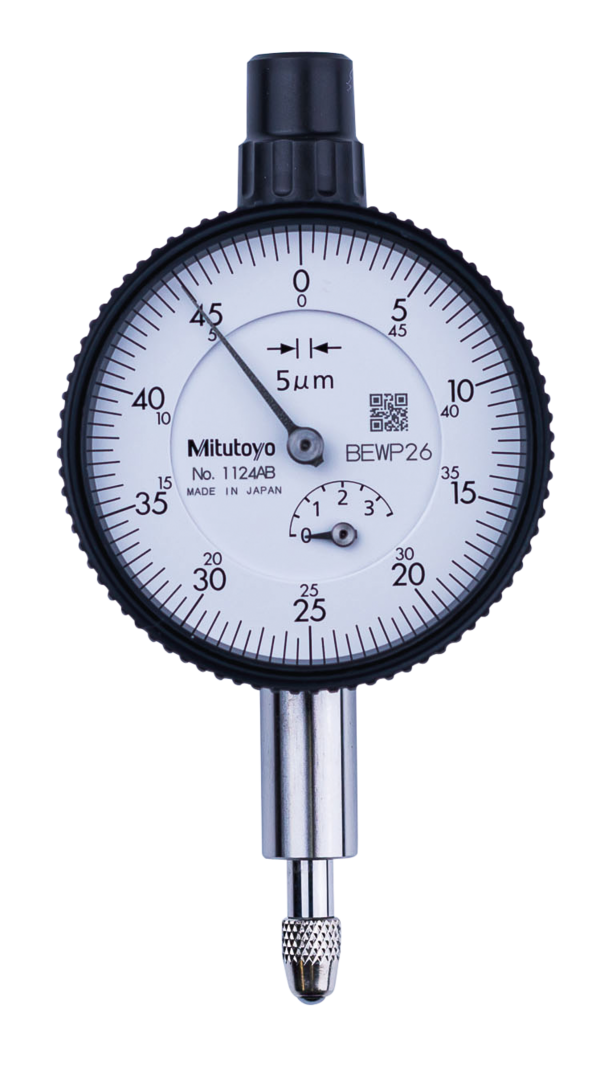

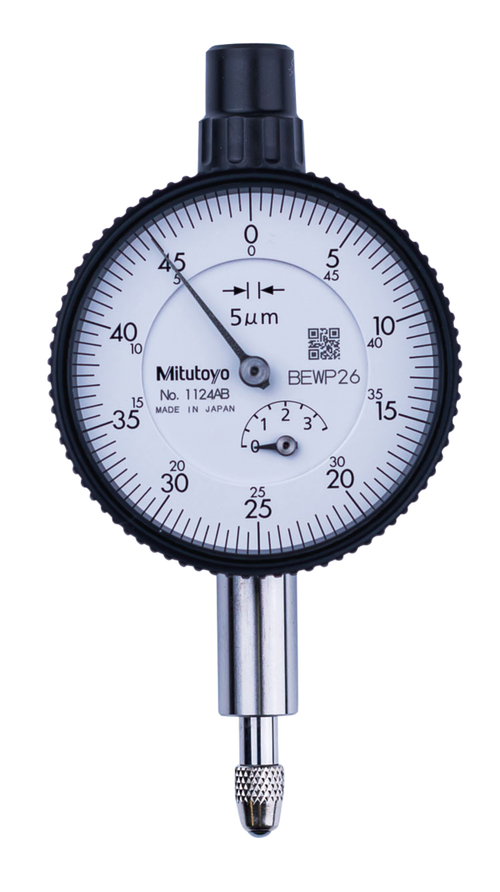

Dial Gauge, Lug Back, ISO Type 3,5mm, 0,005mm 1124S

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ISO Type 3,5mm, 0,005mm 1124S

Name: Dial Gauge, Lug Back, ISO Type 3,5mm, 0,005mm 1124S
Brand: Mitutoyo
SKU: 1124S
Price: 93.0 EUR
Availability: InStock

MitutoyoSKU: 1124S

Price:

€93.00 €124.00

Quantity:

Compact Type 1 and 3,5 mm Range Small Diameter - Metric

This is a compact, dial indicator with a bezel ∅ 40 mm. It offers you the following benefits:

It is ideal for use in applications where space is limited.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	1124S
Measuring Range	3.5mm
Resolution	["0.005mm"]
Graduation	.005mm
Accuracy	.012mm
Unit of Measurement	Metric
Measuring Force	≤1.4N
Type	Lug Back
Repeatability	.003mm
Dial Face Size Ø	40mm
Hysteresis	.0035mm
Stem	8mm
Back	Centre Lug Back
Range Per Rev	0.5mm
Scale	±0-50
Calibration Code	CAL14 B1
Stem	8mm

Digital/Analog:	Analog
Inch-Metric:	Metric
Delivered:	With certificate of inspection
Range:	3.5 mm
Range per rev.:	0,5 mm
Dial reading:	±0-50
Graduation:	0.005 mm
MPE any 1/10 revolution:	5 µm
MPE any 1/2 revolution:	8 µm
MPE any 1 revolution:	9 µm
MPE measuring range:	12 µm
H MPE (Hysteresis):	3 µm
R MPE (Repeatability):	3 µm
Measuring force:	0,4-1,4 N
Mass:	70 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:	Yes
Type:	EN ISO Standard
