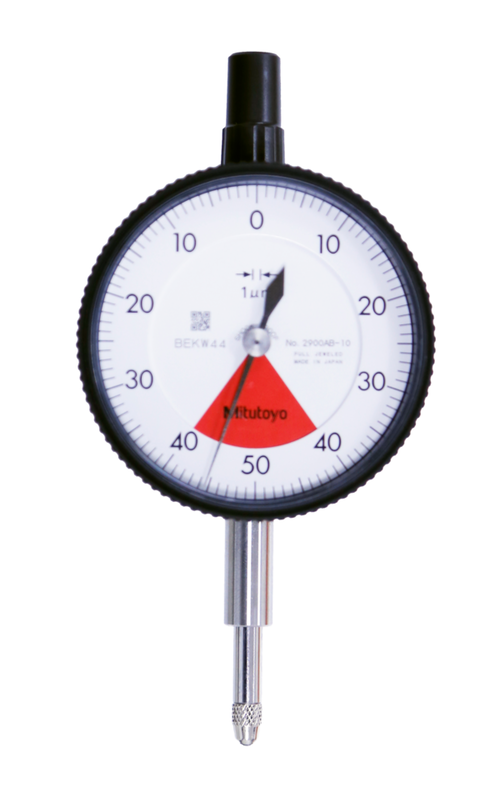

Dial Gauge, Lug Back, ISO Type One Revolution, Jewelled Bearing, Shockproof, 0,08mm, 0,001mm 2900A-10

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ISO Type One Revolution, Jewelled Bearing, Shockproof, 0,08mm, 0,001mm 2900A-10

Name: Dial Gauge, Lug Back, ISO Type One Revolution, Jewelled Bearing, Shockproof, 0,08mm, 0,001mm 2900A-10
Brand: Mitutoyo
SKU: 2900A-10
Price: 121.0 EUR
Availability: InStock

MitutoyoSKU: 2900A-10

Price:

€121.00 €160.24

Quantity:

Graduation 0,001 mm

This is a one revolution dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side.
No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.
It eliminates the possibility of reading errors due to miscounting multiple revolutions.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	2900A-10
Measuring Range	0.08mm
Graduation	.001mm
Accuracy	.003mm
Unit of Measurement	Metric
Measuring Force	≤1.4N
Type	Lug Back
Repeatability	.0005mm
Dial Reading	40-0-40
Dial Face Size Ø	57mm
Hysteresis	.002mm
Stem	8mm
Stem Diameter	8mm
Back	Centre Lug Back
Range Per Rev	.1mm
Scale	40-0-40
Calibration Code	CAL14 B1
Stem	8mm

Digital/Analog:	Analog
Inch-Metric:	Metric
Functions:	ISO type
Delivered:	With certificate of inspection
Range:	0.08 mm
Plunger Stroke:	4 mm
Range per rev.:	0.1 mm
Dial reading:	40-0-40
Graduation:	0.001 mm
Measuring force:	0.4-1.4 N
MPE any 1/10 revolution:	2 µm
MPE measuring range:	3 µm
H MPE (Hysteresis):	2 µm
R MPE (Repeatability):	1 µm
Mass:	149 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
One revolution:	Yes
Shockproof:	Yes
