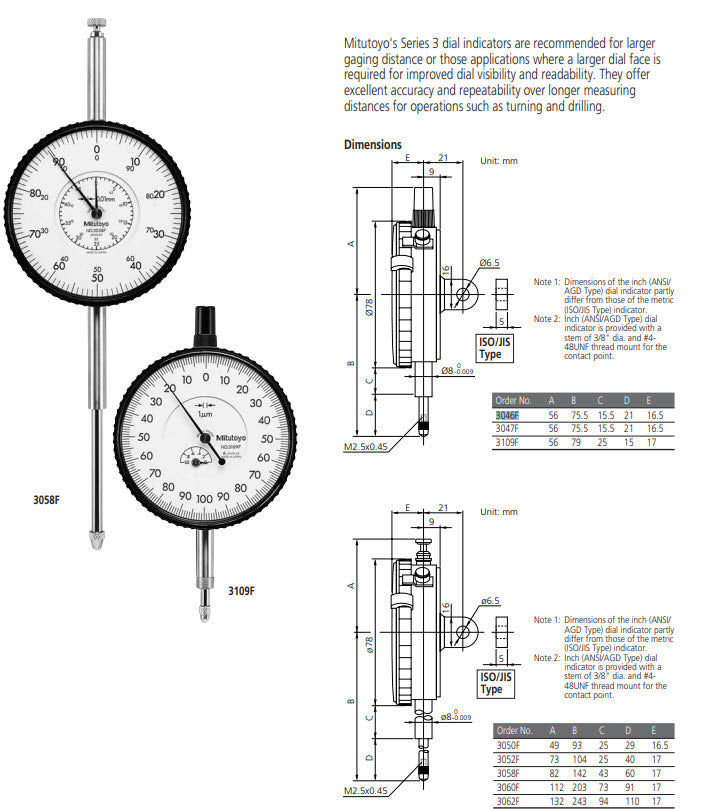

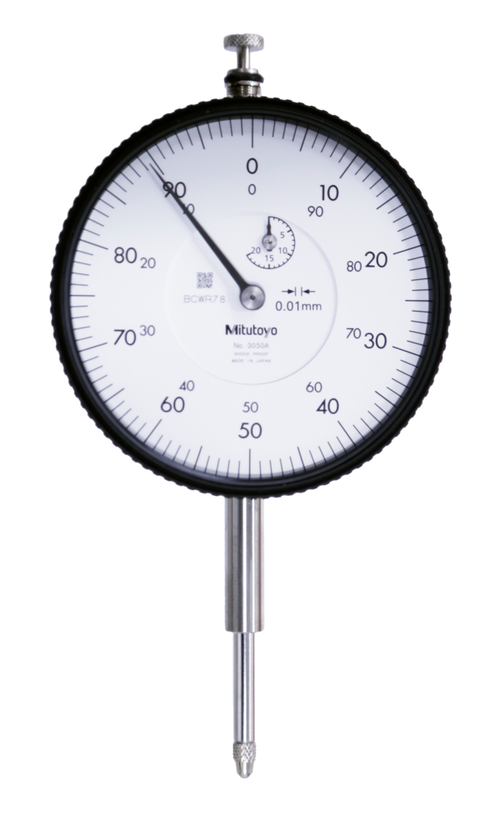

3050F Mitutoyo Series 3 Dial Indicator with Large Dial Face: 0-20mm

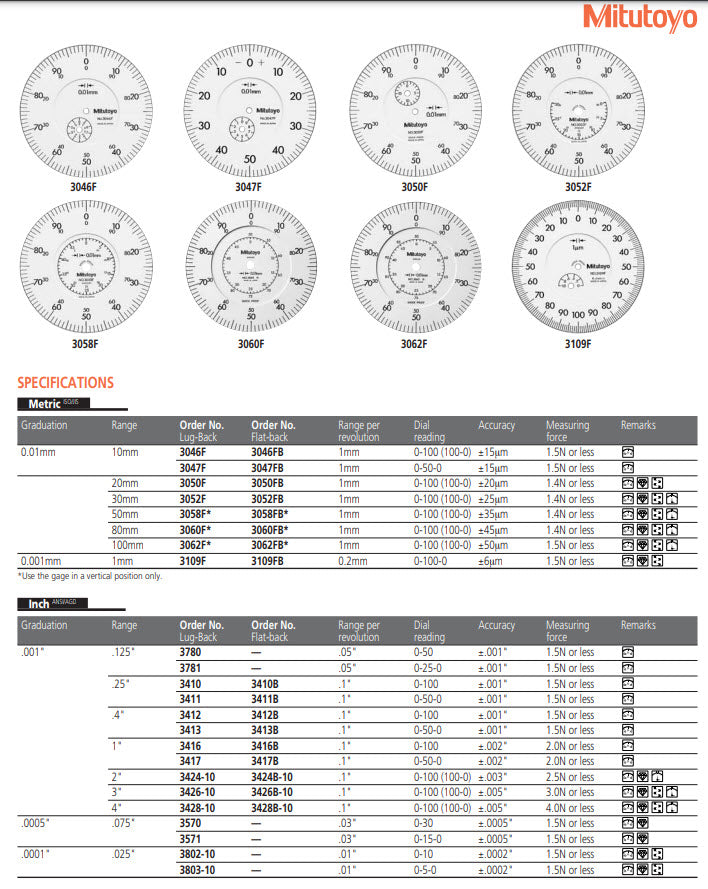

The Mitutoyo 3050Fial Indicator with Large Dial Face has the following specifications:
- Range: 0-20mm
- Graduation: 0.01mm
- Range/Rev: 1mm
- Dial Reading: 0-100
- Type: with flat
- Accuracy: +/- 0.020mm
- Measuring force: 2.0N or less
- Stem/Shank: 8mm
- Contact Point: M2.5 x 0.45 Thread
- Shockproof Type: No
- Jewelled Bearing Type: No
- With Coaxial Revolution Counter Type: No
- With Damper at Lowest Rest Point Type: Yes
- Type: ISO/JIS
The Mitutoyo large dial face dial indicator combines excellent accuracy and reliability with a large, easy-to-read dial face. The 3050F stem design provides a long clamping range for use in many different applications. The spindle and stem are constructed of hardened, high-strength steel, and the jeweled bearing provides wear resistance and low friction movements for smooth, precise operations. The absence of a through screw hole helps protect the indicator against water and oil permeation. The crystal has a scratch and glare-resistant coating for clearer readings and better durability. The outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of tools.
