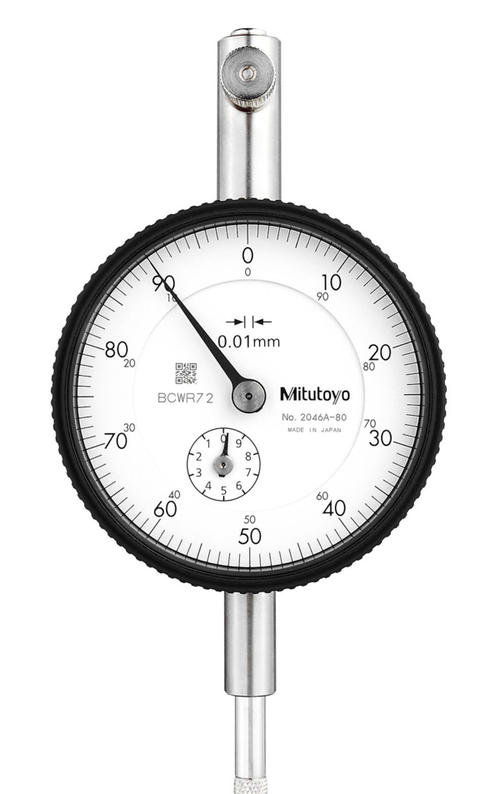

Dial Gauge, Lug Back, ISO Type Peak Hold Type, 10mm, 0,01mm 2046A-80

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ISO Type Peak Hold Type, 10mm, 0,01mm 2046A-80

Name: Dial Gauge, Lug Back, ISO Type Peak Hold Type, 10mm, 0,01mm 2046A-80
Brand: Mitutoyo
SKU: 2046A-80
Price: 122.28 EUR
Availability: InStock

MitutoyoSKU: 2046A-80

Price:

€122.28 €167.50

Quantity:

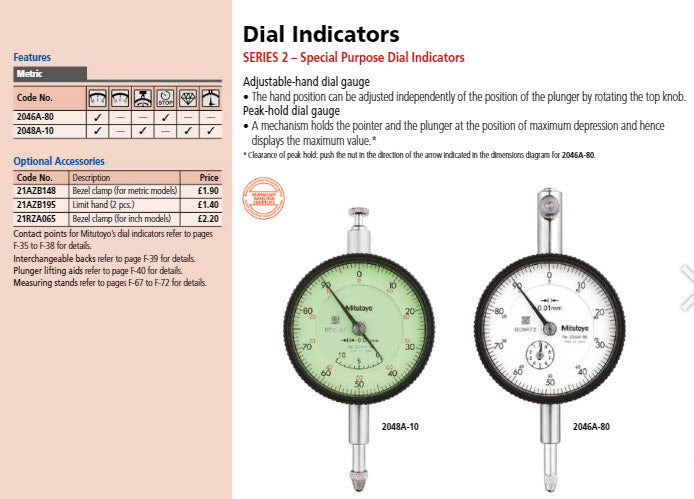

This special dial indicators offer you the following benefits:

In an adjustable pointer type the pointer can be adjusted independently of the position of the spindle by rotating the top knob.
In a peak hold type a mechanism holds the pointer and the spindle at the position of maximum depression and hence displays the maximum value.

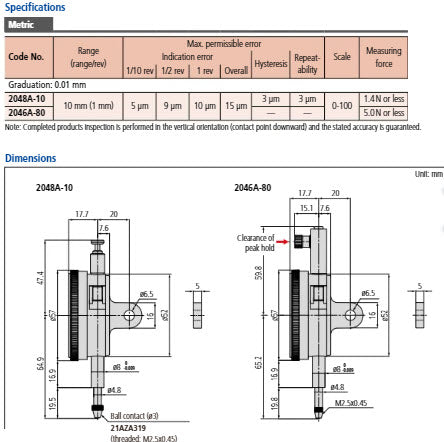

Product Information
Part Number	2046A-80
Measuring Range	10mm
Graduation	.01mm
Accuracy	.015mm
Unit of Measurement	Metric
Measuring Force	≤5N
Repeatability	.003mm
Dial Reading	0-100
Dial Face Size Ø	57mm
Hysteresis	.003mm
Stem	8mm
Stem Diameter	8mm
Back	Centre Lug Back
Range Per Rev	1mm
Scale	0-100
Calibration Code	CAL14 B1
Stem	8mm

Digital/Analog:	Analog
Inch-Metric:	Metric
Functions:	ISO type
Type:	EN ISO Standard
Delivered:	With certificate of inspection
Range:	10 mm
Range per rev.:	1 mm
Dial reading:	±0-100
Graduation:	0.01 mm
Measuring force:	0,4-5
MPE any 1/10 revolution:	5 µm
MPE any 1/2 revolution:	9 µm
MPE any 1 revolution:	10 µm
MPE measuring range:	15 µm
H MPE (Hysteresis):	3 µm
R MPE (Repeatability):	3 µm
Mass:	158 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:	Yes
Peak retaining:	Yes
