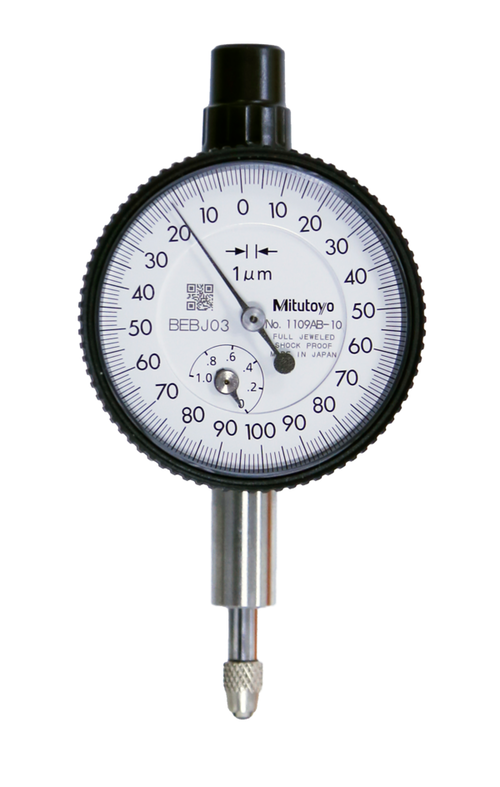

Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 1mm, 0,001mm 1109A-10

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 1mm, 0,001mm 1109A-10

Name: Dial Gauge, Lug Back, ISO Type Jewelled Bearing, 1mm, 0,001mm 1109A-10
Brand: Mitutoyo
SKU: 1109A-10
Price: 158.78 EUR
Availability: InStock

MitutoyoSKU: 1109A-10

Price:

€158.78 €217.50

Quantity:

Compact Type 1 and 3,5 mm Range Small Diameter - Metric

This is a compact, dial indicator with a bezel ∅ 40 mm. It offers you the following benefits:

It is ideal for use in applications where space is limited.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	1109A-10
Measuring Range	1mm
Resolution	0.001mm
Graduation	.001mm
Accuracy	.005mm
Unit of Measurement	Metric
Measuring Force	≤1.5N
Type	Lug Back
Repeatability	.001mm
Dial Face Size Ø	40mm
Hysteresis	.002mm
Stem	8mm
Back	Centre Lug Back
Range Per Rev	0.2mm
Scale	0-100-0
Calibration Code	CAL14 B1
Stem	8mm

Digital/Analog:	Analog
Inch-Metric:	Metric
Delivered:	With certificate of inspection
Range:	1 mm
Range per rev.:	0,2 mm
Dial reading:	0-100-0
Graduation:	0.001 mm
MPE any 1/10 revolution:	2.5 µm
MPE any 1/2 revolution:	4 µm
MPE any 1 revolution:	4.5 µm
MPE measuring range:	5 µm
H MPE (Hysteresis):	2 µm
R MPE (Repeatability):	1 µm
Measuring force:	0,4-1,5 N
Mass:	95 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Balanced dial:	Yes
Shockproof:	Yes
Type:	EN ISO Standard
