Mitutoyo SKU: 2805AB-10
List price: €173.00 Offer price: €134.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

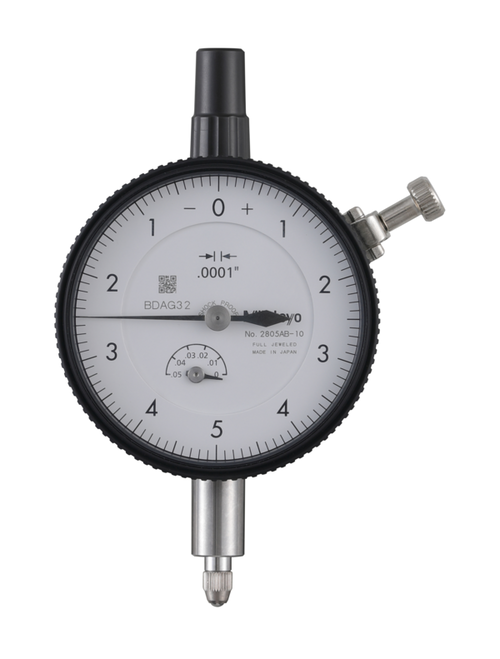

This is a standard, inch dial indicator. It offers you the following benefits:
  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
  • No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

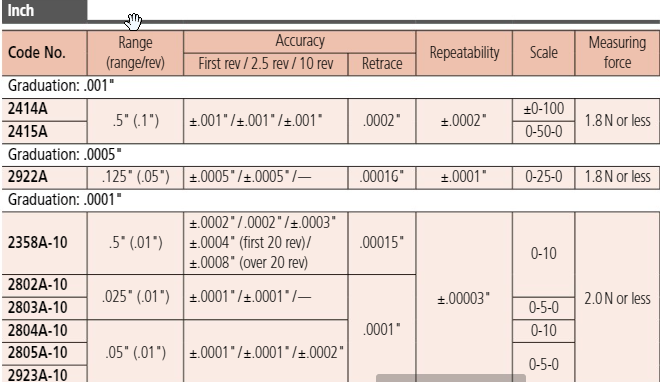

Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Functions:
ANSI/AGD type
Range:
0,05" "
Range
per rev.:
0.01"
Graduation:
0,0001"
Accuracy:
±0,0002"
H MPE (Hysteresis):
0,0001"
R MPE (Repeatability):
±0,00003"
Measuring force:
0,4-2
Error of indication one revolution:
±0,0002"
MPE first one revolution:
±0,0001"
MPE first 2 1/2 revolutions:
±0,0001"
MPE > 2 1/2-10 revolutions:
±0,0002"
Type:
ANSI/AGD Standard
Mass:
164 g

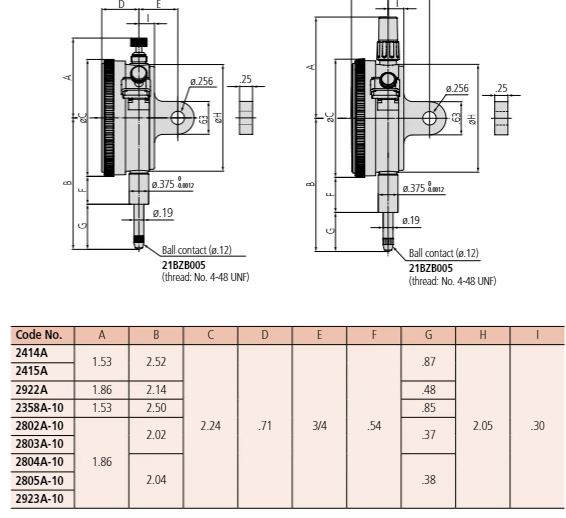

Stem:
9.52 mm / 0.375"
Contact point:
Carbide tipped, thread: 4-48UNF

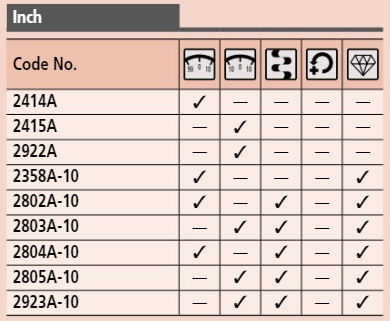

Balanced dial:
Yes
Continuous dial:
Yes
Shockproof:
Yes
