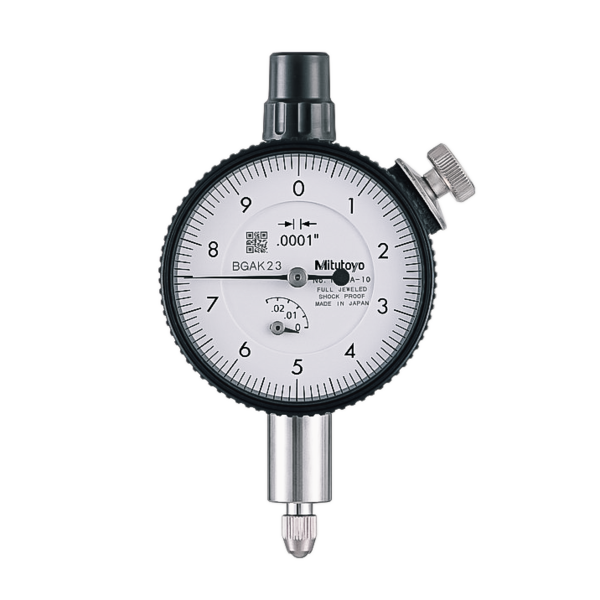

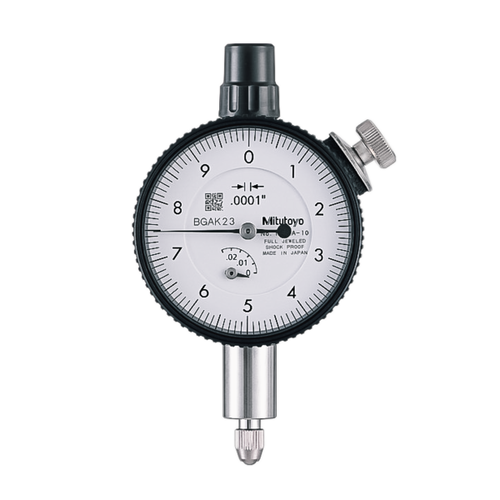

Dial Gauge, Lug Back, ANSI/AGD Type Jewelled Bearing, Shockproof, 0,025", 0,0001" 1802F-10

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ANSI/AGD Type Jewelled Bearing, Shockproof, 0,025", 0,0001" 1802F-10

Name: Dial Gauge, Lug Back, ANSI/AGD Type Jewelled Bearing, Shockproof, 0,025", 0,0001" 1802F-10
Brand: Mitutoyo
SKU: 1802F-10
Price: 90.0 EUR
Availability: InStock

MitutoyoSKU: 1802F-10

Price:

€90.00 €180.00

Quantity:

Compact Type, Small Diameter - Inch

This is a compact, inch dial indicator with a bezel Ø 40 mm. It offers you the following benefits:

It is ideal for use in applications where space is limited.
Green limit markers are a standard accessory.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

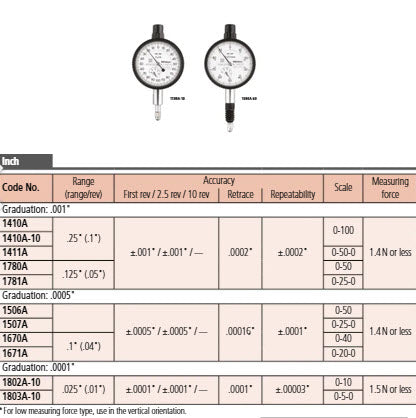

Product Information
Part Number	1802F-10
Measuring Range	0.025"
Resolution	["0.0001\""]
Graduation	.0001"
Accuracy	.0001"
Unit of Measurement	Inch
Measuring Force	≤1.5N
Type	Lug Back
Repeatability	±.00003"
Dial Face Size Ø	40mm
Hysteresis	.0001"
Stem	9.52mm/3/8"
Back	Centre Lug Back
Range Per Rev	.01"
Scale	0-10
Calibration Code	CAL14 B1
Stem	9.52mm/3/8"

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	With certificate of inspection, bezel clamp
Range:	0,025 "
Range per rev.:	0,01"
Graduation:	0,0001"
H MPE (Hysteresis):	0,0001"
R MPE (Repeatability):	±0,00003"
MPE first one revolution:	±0,0001"
MPE first 2 1/2 revolutions:	±0,0001"
Type:	ANSI/AGD Standard
Measuring force:	0,4-1,5 N
Mass:	95 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Continuous dial:	Yes
Shockproof:	Yes
