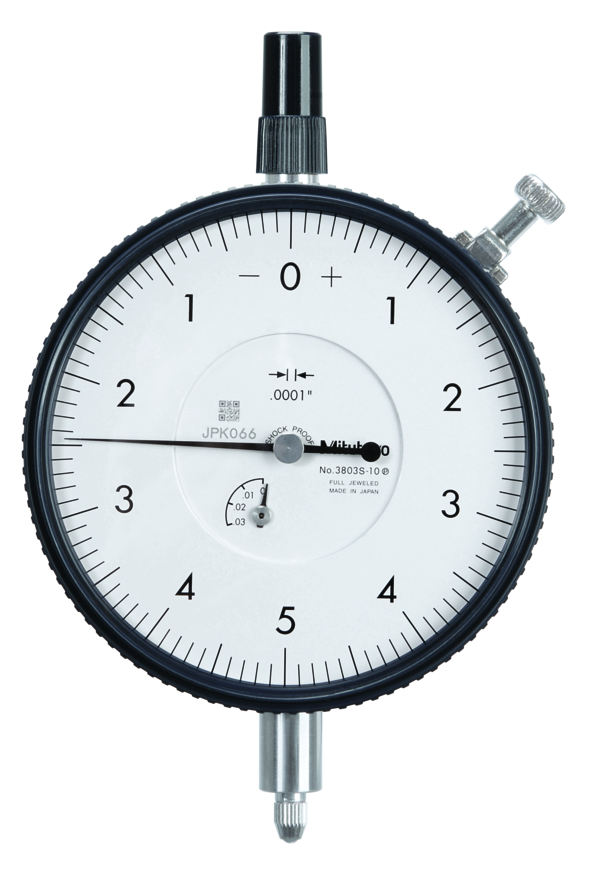

Dial Gauge, Lug Back, ANSI/AGD Type 3803A-10 Grad .0001" Range .02" Reading 0-5-0

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ANSI/AGD Type 3803A-10 Grad .0001" Range .02" Reading 0-5-0

Name: Dial Gauge, Lug Back, ANSI/AGD Type 3803A-10 Grad .0001" Range .02" Reading 0-5-0
Brand: Mitutoyo
SKU: 3803A-10
Price: 179.76 EUR
Availability: InStock

MitutoyoSKU: 3803A-10

Price:

€179.76 €246.25

Quantity:

This is a standard, inch dial indicator. It offers you the following benefits:

Large-diameter dial face ø = 78 mm for easy reading
Supplied with limit markers and a bezel clamp as standard
0,001" / 0,0001" graduation

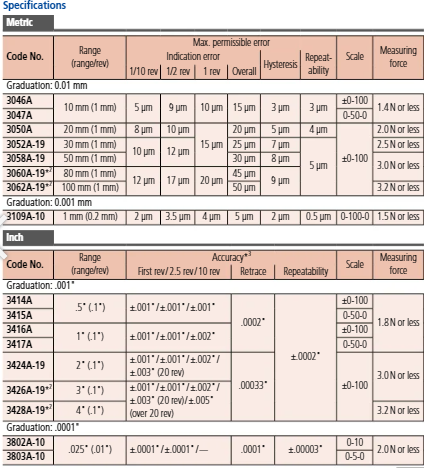

Product Information
Part Number	3803A-10
Measuring Range	0.025"
Graduation	.0001"
Accuracy	.0001"
Unit of Measurement	Inch
Measuring Force	≤2N
Type	Lug Back
Repeatability	±.00003"
Dial Reading	0-5-0
Hysteresis	.0001"
Stem	9.52mm/3/8"
Stem Diameter	3/8"
Back	Centre Lug Back
Range Per Rev	.01"
Scale	0-5-0
Stem	9.52mm/3/8"

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	With certificate of inspection, bezel clamp
Range:	0,025 "
Range per rev.:	0,01"
Graduation:	0.0001"
Accuracy:	±0.0001"
H MPE (Hysteresis):	0,0001"
R MPE (Repeatability):	±0,00003"
Error of indication one revolution:	±0.0001"
MPE first one revolution:	±0,0001"
MPE first 2 1/2 revolutions:	±0,0001"
Type:	ANSI/AGD Standard
Measuring force:	0,4-2 N
Mass:	245 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Balanced dial:	Yes
Continuous dial:	Yes
Shockproof:	Yes
