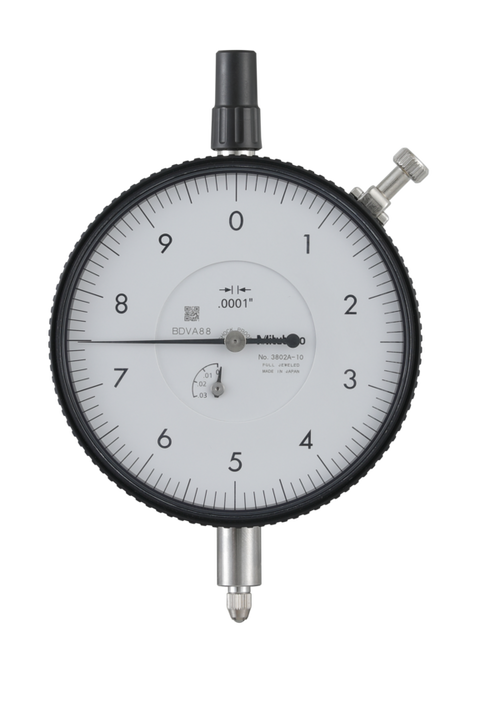

Dial Gauge, Lug Back, ANSI/AGD Type 3802S-10

Name: Dial Gauge, Lug Back, ANSI/AGD Type 3802S-10
Brand: Mitutoyo
SKU: 3802S-10
Price: 115.0 EUR
Availability: InStock

MitutoyoSKU: 3802S-10

Price:

€115.00 €193.00

Quantity:

This is a standard, inch dial indicator. It offers you the following benefits:

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	With certificate of inspection, bezel clamp
Range:	0,025 "
Range per rev.:	0,01"
Graduation:	0.0001"
Accuracy:	±0.0001"
H MPE (Hysteresis):	0,0001"
R MPE (Repeatability):	±0,00003"
Error of indication one revolution:	±0.0001"
MPE first one revolution:	±0,0001"
MPE first 2 1/2 revolutions:	±0,0001"
Type:	ANSI/AGD Standard
Measuring force:	0,4-2 N
Mass:	260 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Continuous dial:	Yes
Shockproof:	Yes
