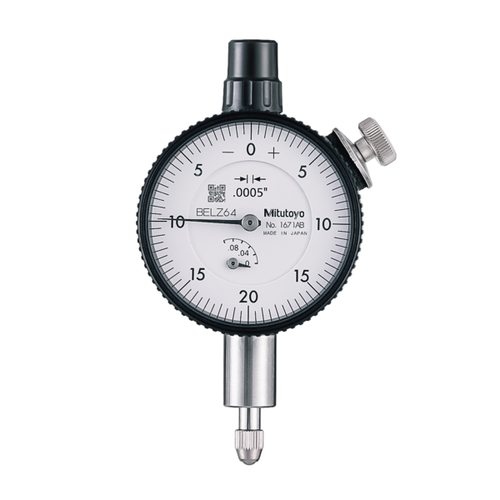

Dial Gauge, Lug Back, ANSI/AGD Type 0,1", 0,0005" 1671A

Name: Dial Gauge, Lug Back, ANSI/AGD Type 0,1", 0,0005" 1671A
Brand: Mitutoyo
SKU: 1671A
Price: 90.0 EUR
Availability: InStock

MitutoyoSKU: 1671A

Price:

€90.00 €120.00

Quantity:

Compact Type, Small Diameter - Inch

This is a compact, inch dial indicator with a bezel Ø 40 mm. It offers you the following benefits:

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	With certificate of inspection, bezel clamp
Range:	0,1 "
Range per rev.:	0,04"
Graduation:	0,0005"
H MPE (Hysteresis):	0,00016"
R MPE (Repeatability):	±0,0001"
MPE first one revolution:	±0,0005"
MPE first 2 1/2 revolutions:	±0,0005"
Type:	ANSI/AGD Standard
Measuring force:	0,4-1,4 N
Mass:	90 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Continuous dial:	Yes
