Dial Gauge, Lug Back, ANSI/AGD Type Jewelled Bearing, 0,25", 0,001" 1410A-10

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ANSI/AGD Type Jewelled Bearing, 0,25", 0,001" 1410A-10

Name: Dial Gauge, Lug Back, ANSI/AGD Type Jewelled Bearing, 0,25", 0,001" 1410A-10
Brand: Mitutoyo
SKU: 1410A-10
Price: 96.73 EUR
Availability: InStock

MitutoyoSKU: 1410A-10

Price:

€96.73 €132.50

Quantity:

Compact Type, Small Diameter - Inch

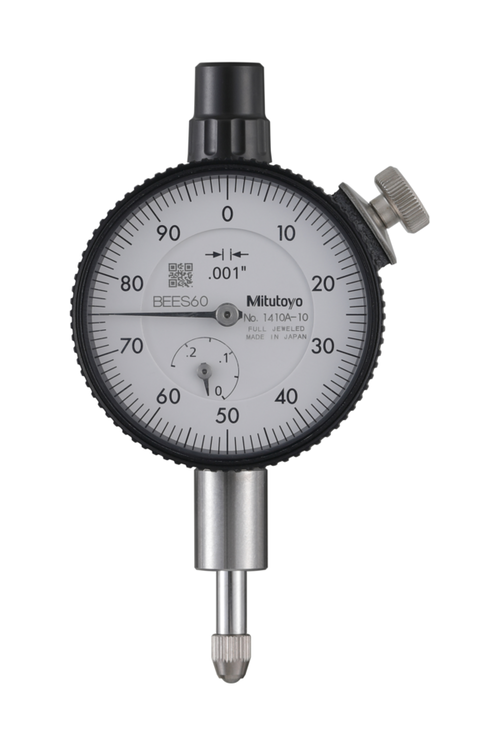

This is a compact, inch dial indicator with a bezel Ø 40 mm. It offers you the following benefits:

It is ideal for use in applications where space is limited.
Green limit markers are a standard accessory.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

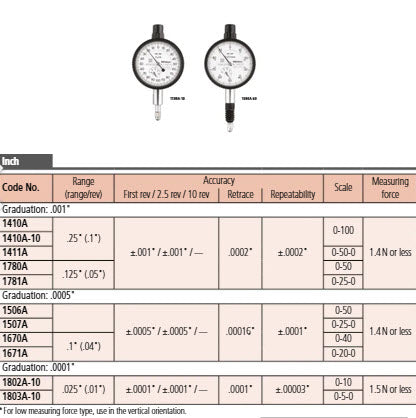

Product Information
Part Number	1410A-10
Measuring Range	0.250"
Resolution	["0.001\""]
Graduation	.001"
Accuracy	.001"
Unit of Measurement	Inch
Measuring Force	≤1.4N
Type	Lug Back
Repeatability	±.0002"
Dial Face Size Ø	40mm
Hysteresis	.0002"
Stem	9.52mm/3/8"
Back	Centre Lug Back
Range Per Rev	.1"
Scale	0-100
Calibration Code	CAL14 B1
Stem	9.52mm/3/8"

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	With certificate of inspection, bezel clamp
Range:	0,25 "
Range per rev.:	0,1"
Graduation:	0,001"
H MPE (Hysteresis):	0,0002"
R MPE (Repeatability):	±0,0002"
MPE first one revolution:	±0,001"
MPE first 2 1/2 revolutions:	±0,001"
Type:	ANSI/AGD Standard
Measuring force:	0,4-1,4 N
Mass:	90 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Continuous dial:	Yes
