Dial Gauge, Lug Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910A-10

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910A-10

Name: Dial Gauge, Lug Back, ANSI/AGD Type One Revolution, Jewelled Bearing, Shockproof, 0,008", 0,0001" 2910A-10
Brand: Mitutoyo
SKU: 2910A-10
Price: 117.0 EUR
Availability: InStock

MitutoyoSKU: 2910A-10

Price:

€117.00 €155.42

Quantity:

Graduation 0,001 mm

This is a one revolution dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side.
No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.
It eliminates the possibility of reading errors due to miscounting multiple revolutions.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

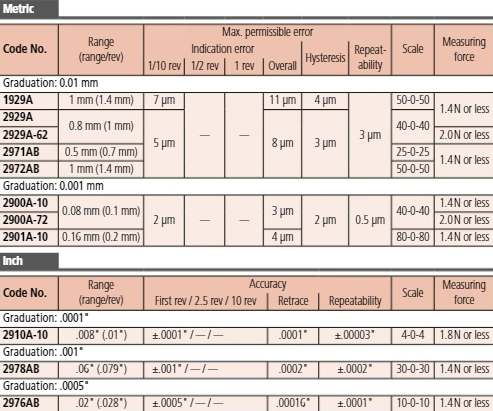

Product Information
Part Number	2910A-10
Measuring Range	0.008"
Graduation	.0001"
Accuracy	.0001"
Unit of Measurement	Inch
Measuring Force	≤1.8N
Type	Lug Back
Repeatability	±.00003"
Dial Reading	4-0-4
Dial Face Size Ø	57mm
Hysteresis	.0001"
Stem	9.52mm/3/8"
Stem Diameter	3/8"
Back	Centre Lug Back
Range Per Rev	.01"
Scale	4-0-4
Calibration Code	CAL14 B1
Stem	9.52mm/3/8"

Digital/Analog:	Analog
Inch-Metric:	Metric
Functions:	ISO type
Delivered:	With certificate of inspection
Range:	0.08 mm
Plunger Stroke:	4 mm
Range per rev.:	0.1 mm
Dial reading:	40-0-40
Graduation:	0.001 mm
Measuring force:	0.4-2 N
MPE any 1/10 revolution:	2 µm
MPE measuring range:	3 µm
H MPE (Hysteresis):	2 µm
R MPE (Repeatability):	1 µm
Mass:	150 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
One revolution:	Yes
Shockproof:	Yes
