Mitutoyo SKU: 3416S
List price: €149.00 Offer price: €116.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

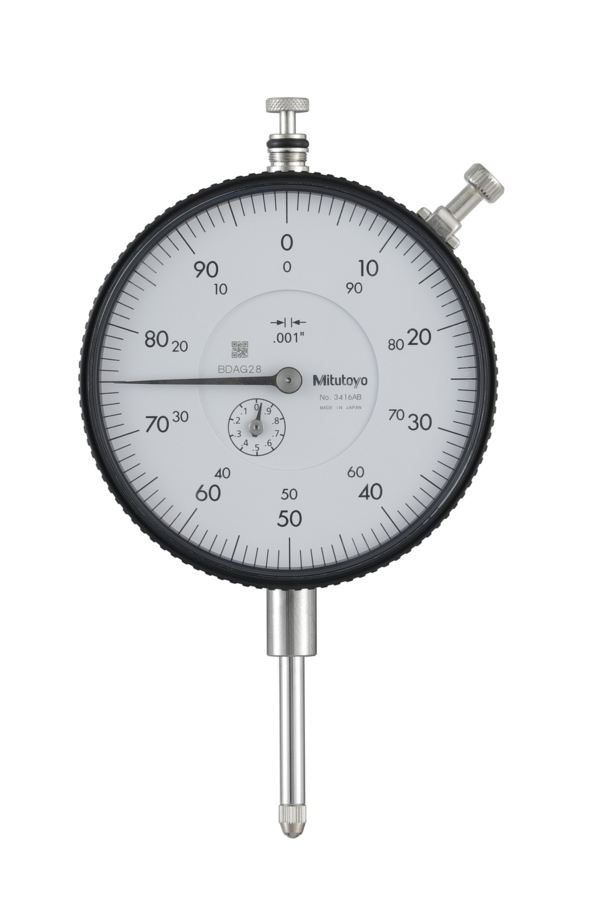

This is a standard, inch dial indicator. It offers you the following benefits:
  • Large-diameter dial face ø = 78 mm for easy reading
  • Supplied with limit markers and a bezel clamp as standard
  • 0,001" / 0,0001" graduation

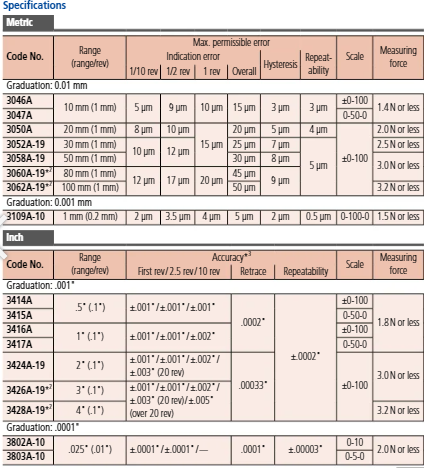

Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Delivered:
With certificate of inspection, bezel clamp
Range:
1 "
Range
per rev.:
0,1"
Graduation:
0.001"
Accuracy:
±0.002"
H MPE (Hysteresis):
0,0002"
R MPE (Repeatability):
±0,0002"
Error of indication one revolution:
±0.002"
MPE first one revolution:
±0,001"
MPE first 2 1/2 revolutions:
±0,001"
MPE > 2 1/2-10 revolutions:
±0,002"
Type:
ANSI/AGD Standard
Measuring force:
0,4-1,8 N
Mass:
258 g
Stem:
9.52 mm / 0.375"
Contact point:
Carbide tipped, thread: 4-48UNF
Continuous dial:
Yes

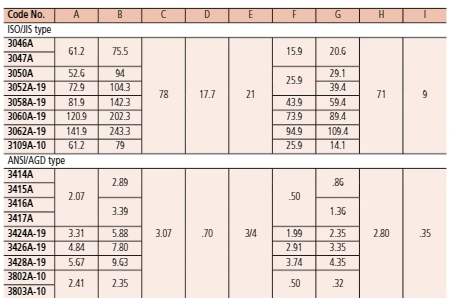

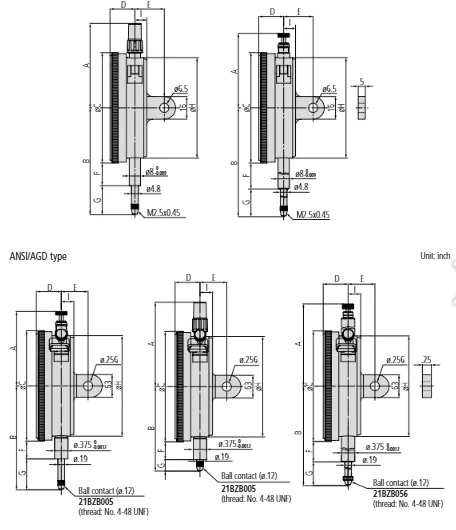

Dimensions

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
