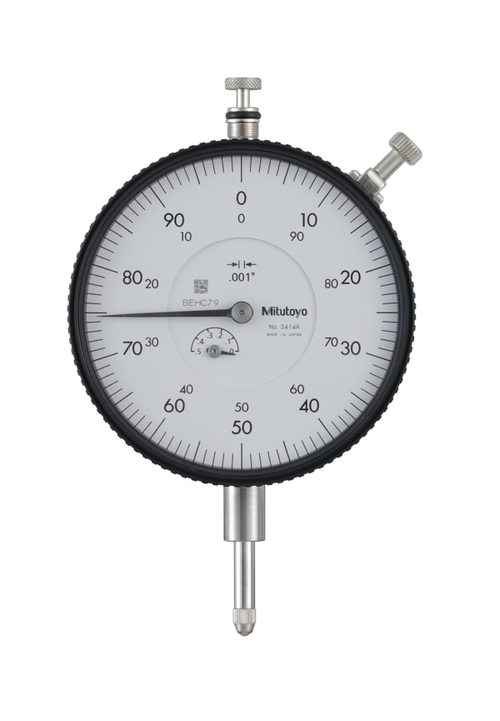

Dial Gauge, Lug Back, ANSI/AGD Type 0,5", 0,001" 3414S

Name: Dial Gauge, Lug Back, ANSI/AGD Type 0,5", 0,001" 3414S
Brand: Mitutoyo
SKU: 3414S
Price: 99.0 EUR
Availability: InStock

MitutoyoSKU: 3414S

Price:

€99.00 €156.00

Quantity:

This is a standard, inch dial indicator. It offers you the following benefits:

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	With certificate of inspection, bezel clamp
Range:	0,5 "
Range per rev.:	0,1"
Graduation:	0.001"
Accuracy:	±0.001"
H MPE (Hysteresis):	0,0002"
R MPE (Repeatability):	±0,0002"
Error of indication one revolution:	±0.001"
MPE first one revolution:	±0,001"
MPE first 2 1/2 revolutions:	±0,001"
MPE > 2 1/2-10 revolutions:	±0,001"
Type:	ANSI/AGD Standard
Measuring force:	0,4-1,8 N
Mass:	259 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Continuous dial:	Yes
