Dial Gauge, Lug Back, ANSI/AGD Type 0,5", 0,001" 2415S-10

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ANSI/AGD Type 0,5", 0,001" 2415S-10

Name: Dial Gauge, Lug Back, ANSI/AGD Type 0,5", 0,001" 2415S-10
Brand: Mitutoyo
SKU: 2415S-10
Price: 55.0 EUR
Availability: InStock

MitutoyoSKU: 2415S-10

Price:

€55.00 €83.50

Quantity:

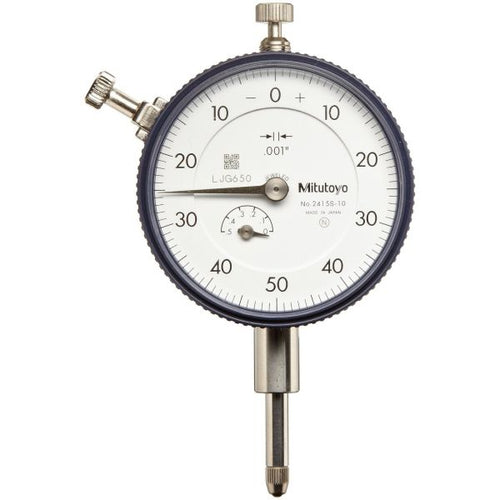

A Mitutoyo multi-revolution dial indicator suited to comparison measurement applications.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	2415S-10
Measuring Range	0.5"
Graduation	.001"
Accuracy	.001"
Unit of Measurement	Inch
Measuring Force	≤1.8N
Type	Lug Back
Repeatability	±.0002"
Dial Reading	0-50-0
Dial Face Size Ø	57mm
Hysteresis	.0002"
Stem	9.52mm/3/8"
Stem Diameter	3/8"
Back	Centre Lug Back
Range Per Rev	.1"
Scale	0-50-0
Calibration Code	CAL14 B2
Stem	9.52mm/3/8"

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	With certificate of inspection, bezel clamp
Range:	0,5 "
Range per rev.:	0,1"
Graduation:	0,001"
H MPE (Hysteresis):	0,0002"
R MPE (Repeatability):	±0,0002"
MPE first one revolution:	±0,001"
MPE first 2 1/2 revolutions:	±0,001"
MPE > 2 1/2-10 revolutions:	±0,001"
Type:	ANSI/AGD Standard
Measuring force:	0,4-1,8 N
Mass:	164 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Balanced dial:	Yes
Continuous dial:	Yes
