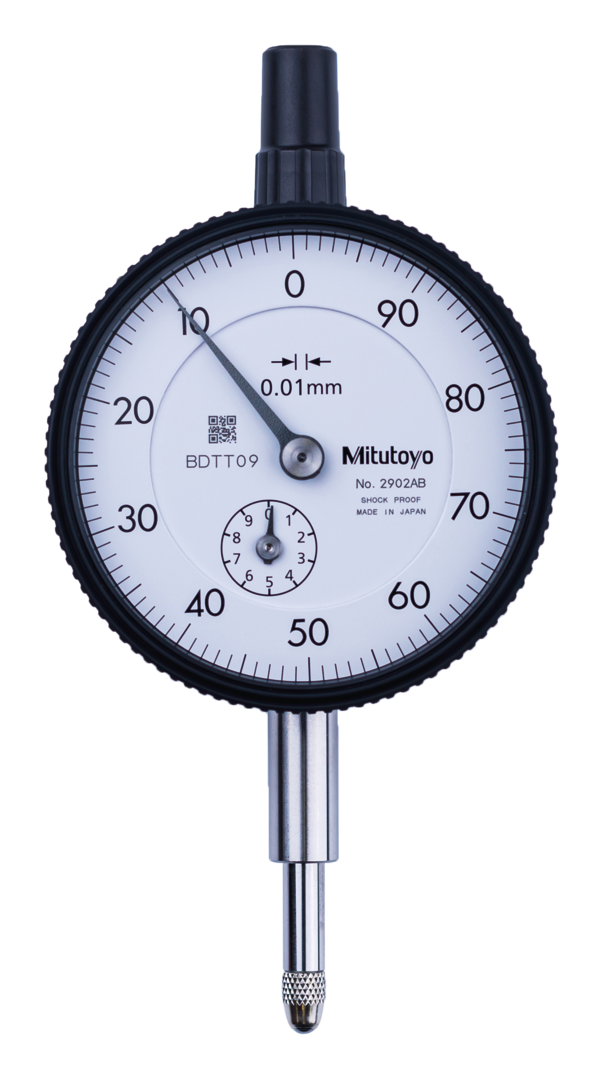

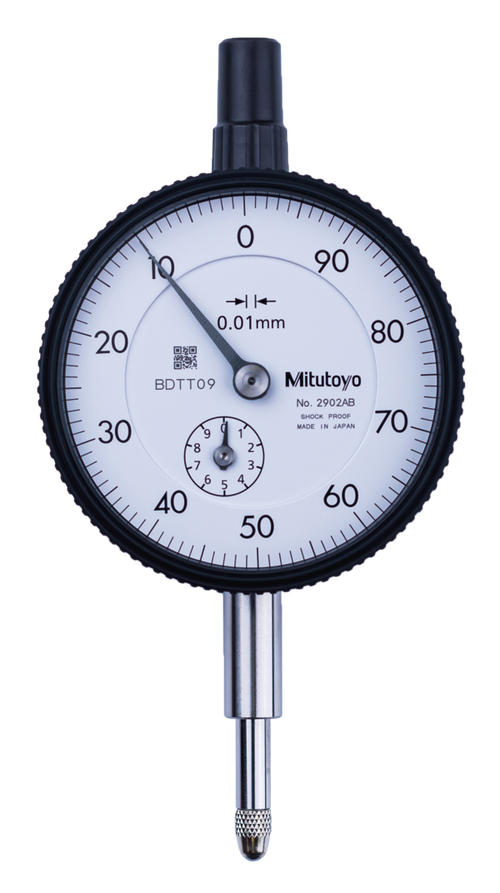

Dial Gauge, Flat Back, ISO Type Reverse Dial Face, 10mm, 0,01mm 2902AB

Roll over image to zoom in Click on image to zoom

Dial Gauge, Flat Back, ISO Type Reverse Dial Face, 10mm, 0,01mm 2902AB

Name: Dial Gauge, Flat Back, ISO Type Reverse Dial Face, 10mm, 0,01mm 2902AB
Brand: Mitutoyo
SKU: 2902AB
Price: 64.0 EUR
Availability: InStock

MitutoyoSKU: 2902AB

Price:

€64.00 €85.30

Quantity:

This is a standard dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	2902AB
Measuring Range	10mm
Graduation	.01mm
Accuracy	.013mm
Unit of Measurement	Metric
Measuring Force	≤1.4N
Type	Flat Back
Repeatability	.003mm

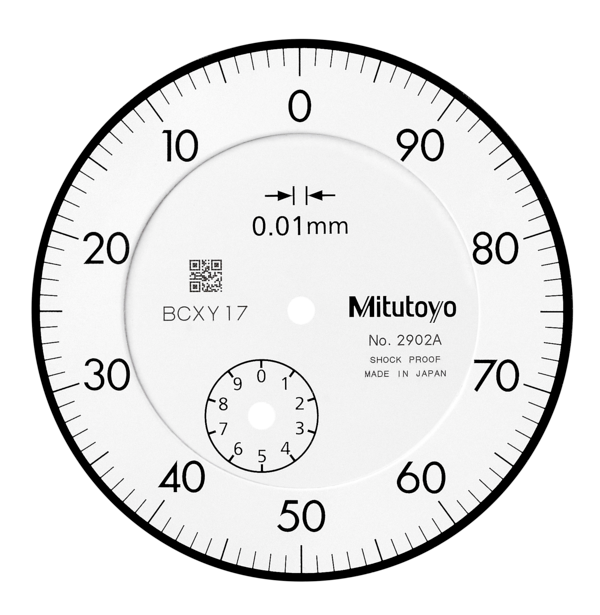

Dial Reading	100-0
Dial Face Size Ø	57mm
Hysteresis	.003mm
Stem	8mm
Stem Diameter	8mm
Back	Flat back
Range Per Rev	1mm
Scale	100-0
Calibration Code	CAL14 B1
Stem	8mm

Digital/Analog:	Analog
Inch-Metric:	Metric
Functions:	ISO type
Delivered:	With certificate of inspection
Range:	10 mm
Range per rev.:	1 mm
Dial reading:	100-0
Graduation:	0.01 mm
Measuring force:	0,4 - 1,4 N
MPE any 1/10 revolution:	5 µm
MPE any 1/2 revolution:	9 µm
MPE any 1 revolution:	10 µm
MPE measuring range:	13 µm
H MPE (Hysteresis):	3 µm
R MPE (Repeatability):	3 µm
Mass:	144 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:	Yes
Reverse reading:	Yes 3
