Dial Gauge, Flat Back, ISO Type Jewelled Bearing, Shockproof, 1mm, 0,001mm 3109AB-10

Roll over image to zoom in Click on image to zoom

Dial Gauge, Flat Back, ISO Type Jewelled Bearing, Shockproof, 1mm, 0,001mm 3109AB-10

Name: Dial Gauge, Flat Back, ISO Type Jewelled Bearing, Shockproof, 1mm, 0,001mm 3109AB-10
Brand: Mitutoyo
SKU: 3109AB-10
Price: 163.34 EUR
Availability: InStock

MitutoyoSKU: 3109AB-10

Price:

€163.34 €223.75

Quantity:

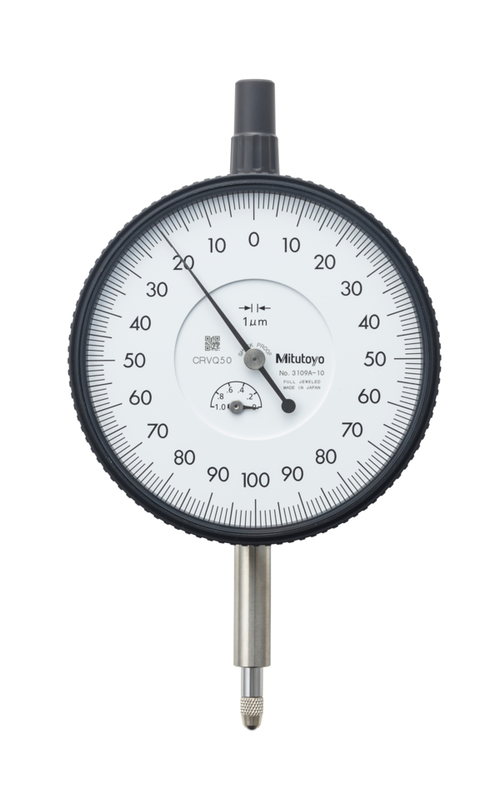

This is a standard dial indicator. It offers you the following benefits:

Large-diameter dial face ø = 78 mm for easy reading
0,01 / 0,001 mm graduation

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

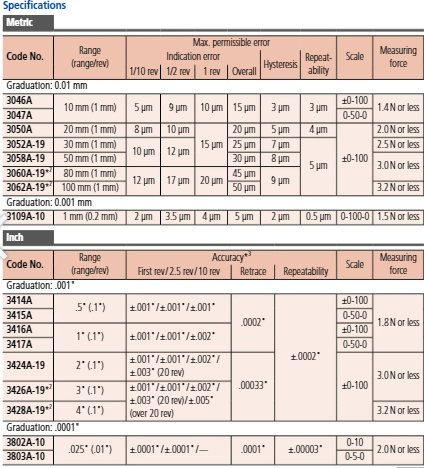

Product Information
Part Number	3109AB-10
Measuring Range	1mm
Resolution	0.001mm
Graduation	.01mm
Accuracy	.005mm
Unit of Measurement	Metric
Measuring Force	≤1.5N
Type	Flat Back
Repeatability	.0005mm
Dial Face Size Ø	78mm
Hysteresis	.002mm
Stem	8mm
Back	Flat back
Range Per Rev	1mm
Scale	±0-100
Calibration Code	CAL14 B1
Stem	8mm

Digital/Analog:	Analog
Inch-Metric:	Metric
Type:	EN ISO Standard
Delivered:	With certificate of inspection
Range:	1 mm
Range per rev.:	0,2 mm
Dial reading:	0-100-0
Graduation:	0.001 mm
MPE any 1/10 revolution:	2.5 µm
MPE any 1/2 revolution:	4 µm
MPE any 1 revolution:	4.5 µm
MPE measuring range:	5 µm
H MPE (Hysteresis):	2 µm
R MPE (Repeatability):	1 µm
Measuring force:	0,4-1,5 N
Mass:	270 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Balanced dial:	Yes
Shockproof:	Yes
