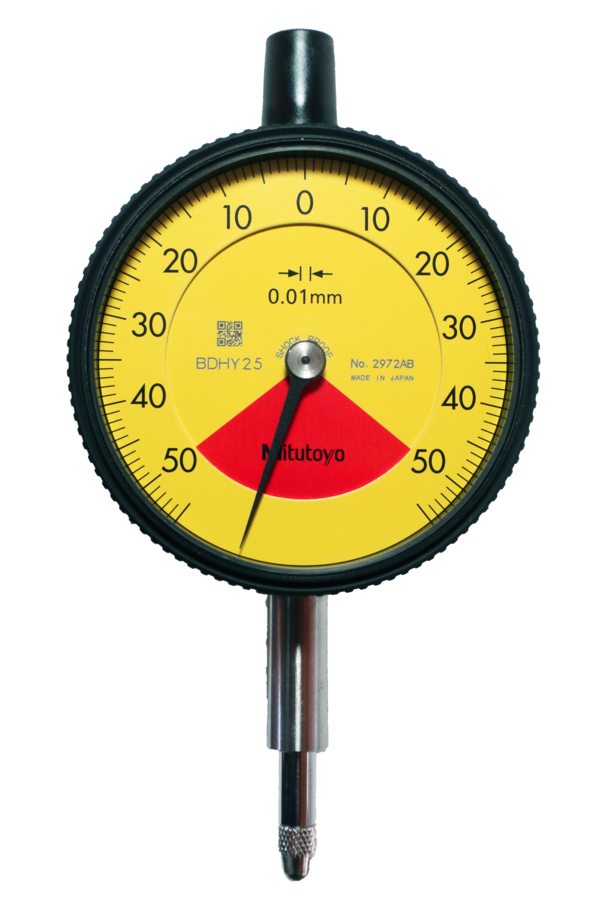

Dial Gauge, Flat Back, ISO Type One Revolution, Shock- & Dustproof, 1mm, 0,01mm 2972AB

Roll over image to zoom in Click on image to zoom

Dial Gauge, Flat Back, ISO Type One Revolution, Shock- & Dustproof, 1mm, 0,01mm 2972AB

Name: Dial Gauge, Flat Back, ISO Type One Revolution, Shock- & Dustproof, 1mm, 0,01mm 2972AB
Brand: Mitutoyo
SKU: 2972AB
Price: 56.76 EUR
Availability: InStock

MitutoyoSKU: 2972AB

Price:

€56.76 €77.75

Quantity:

Lightweight type

This is a one revolution dial indicator. It offers you the following benefits:

Excellent water and drip-proof characteristics
It eliminates the possibility of reading errors due to miscounting multiple revolutions.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

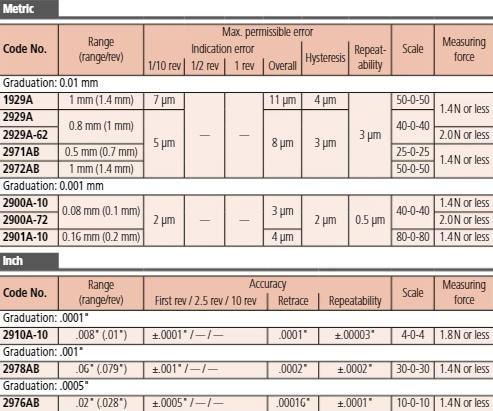

Product Information
Part Number	2972AB
Measuring Range	1mm
Graduation	.01mm
Accuracy	.008mm
Unit of Measurement	Metric
Measuring Force	≤1.4N
Type	Flat Back
Repeatability	.003mm
Dial Reading	50-0-50
Dial Face Size Ø	57mm
Hysteresis	.003mm
Stem	8mm
Stem Diameter	8mm
Back	Centre Lug Back
Range Per Rev	1.4mm
Scale	50-0-50
Calibration Code	CAL14 B1
Stem	8mm

Digital/Analog:	Analog
Inch-Metric:	Metric
Functions:	ISO type
Range:	1 mm
Plunger Stroke:	3.5 mm
Range per rev.:	1.4 mm
Graduation:	0.01 mm
Graduation:	0.01
MPE any 1/10 revolution:	5 µm
MPE measuring range:	7 µm
H MPE (Hysteresis):	3 µm
R MPE (Repeatability):	3 µm
Mass:	75 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
One revolution:	Yes
Cushioned end point:	Yes
Shockproof:	Yes
