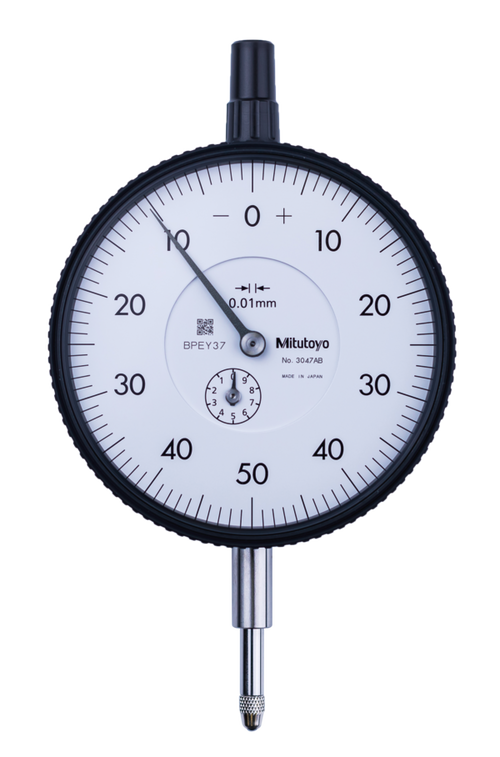

Dial Gauge, Flat Back, ISO Type 10mm, 0,01mm 3047AB , 0-50-0
Dial Gauge, Flat Back, ISO Type 10mm, 0,01mm 3047AB , 0-50-0
Dial Gauge, Flat Back, ISO Type 10mm, 0,01mm 3047AB , 0-50-0
Dial Gauge, Flat Back, ISO Type 10mm, 0,01mm 3047AB , 0-50-0
Roll over image to zoom in Click on image to zoom
Dial Gauge, Flat Back, ISO Type 10mm, 0,01mm 3047AB , 0-50-0Dial Gauge, Flat Back, ISO Type 10mm, 0,01mm 3047AB , 0-50-0Dial Gauge, Flat Back, ISO Type 10mm, 0,01mm 3047AB , 0-50-0Dial Gauge, Flat Back, ISO Type 10mm, 0,01mm 3047AB , 0-50-0

Dial Gauge, Flat Back, ISO Type 10mm, 0,01mm 3047AB , 0-50-0

Mitutoyo SKU: 3047AB
List price: €159.00 Offer price: €123.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.
This is a standard dial indicator. It offers you the following benefits:
  • Large-diameter dial face ø = 78 mm for easy reading
  • 0,01 / 0,001 mm graduation

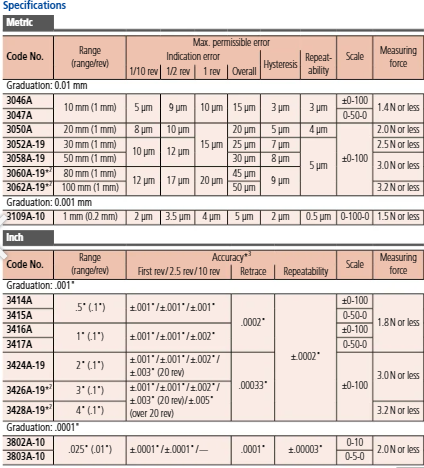

Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Type:
EN ISO Standard
Delivered:
With certificate of inspection
Range:
10 mm
Range
per rev.:
1 mm
Dial reading:
0-50-0
Graduation:
0.01 mm
MPE any 1/10
revolution:
5 µm
MPE any 1/2
revolution:
9 µm
MPE any 1
revolution:
10 µm
MPE measuring range:
15 µm
H MPE
(Hysteresis):
3 µm
R MPE
(Repeatability):
3 µm
Measuring force:
0,4-1,4 N
Mass:
252 g
Stem:
8 mm
Contact point:
Carbide tipped, thread: M 2.5 x 0.45 mm
Balanced dial:
Yes

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
