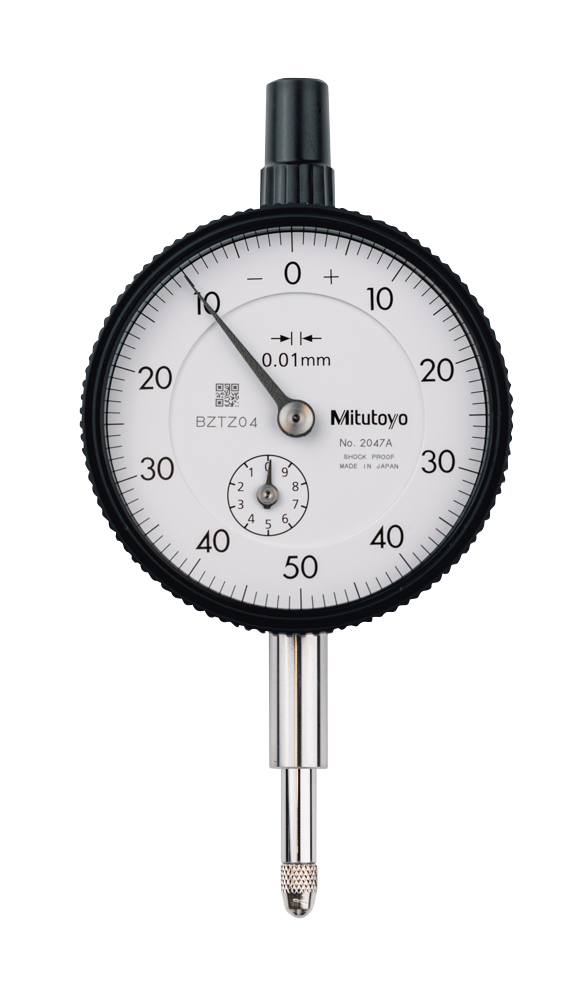

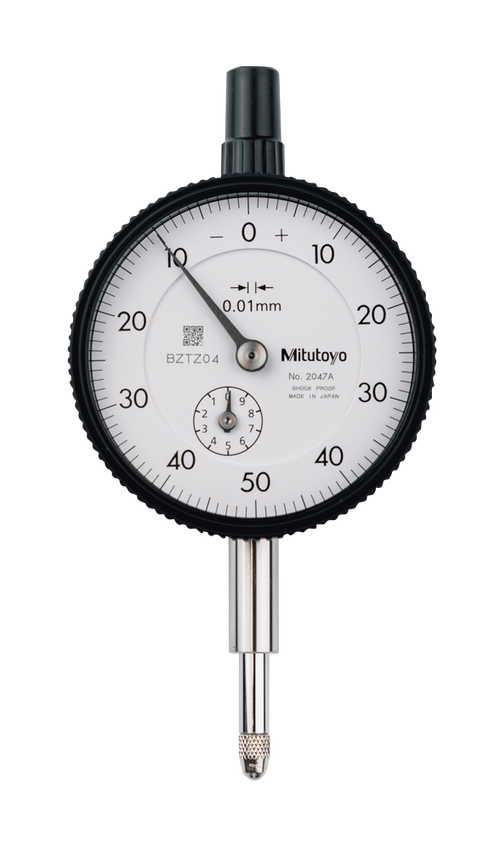

Dial Gauge, Flat Back, ISO Type 10mm, 0,01mm 2047AB

Name: Dial Gauge, Flat Back, ISO Type 10mm, 0,01mm 2047AB
Brand: Mitutoyo
SKU: 2047AB
Price: 54.57 EUR
Availability: InStock

MitutoyoSKU: 2047AB

Price:

€54.57 €74.75

Quantity:

Standard Type, 10 mm Range, 0,01 mm Graduation

This is a standard dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.

Digital/Analog:	Analog
Inch-Metric:	Metric
Functions:	ISO type
Delivered:	With certificate of inspection
Range:	10 mm
Range per rev.:	1 mm
Dial reading:	0-50-0
Graduation:	0.01 mm
Measuring force:	0,4 - 1,4 N
MPE any 1/10 revolution:	5 µm
MPE any 1/2 revolution:	9 µm
MPE any 1 revolution:	10 µm
MPE measuring range:	13 µm
H MPE (Hysteresis):	3 µm
R MPE (Repeatability):	3 µm
Mass:	144 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Balanced dial:	Yes
