Dial Gauge, Flat Back, ANSI/AGD Type 3428AB-19, Face Diameter 3.07", Grad .001" x 4" Travel (Copy)

Roll over image to zoom in Click on image to zoom

Dial Gauge, Flat Back, ANSI/AGD Type 3428AB-19, Face Diameter 3.07", Grad .001" x 4" Travel (Copy)

Name: Dial Gauge, Flat Back, ANSI/AGD Type 3428AB-19, Face Diameter 3.07", Grad .001" x 4" Travel (Copy)
Brand: Mitutoyo
SKU: 3428AB-19
Price: 330.33 EUR
Availability: InStock

MitutoyoSKU: 3428AB-19

Price:

€330.33 €452.50

Quantity:

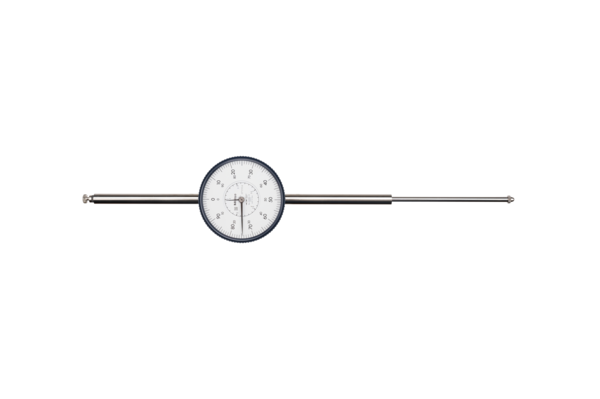

A Mitutoyo shockproof, multi-revolution dial indicator suited to general measurement applications in a vertical orientation. The jewelled movement provides lowest friction and stiction for smooth and precise operation and the bi-directional scale aids measurement in both directions.

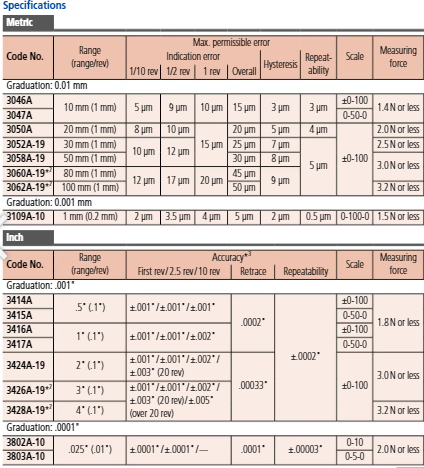

Product Information
Part Number	3428AB-19
Measuring Range	4"
Graduation	.001"
Accuracy	.00033"
Unit of Measurement	Inch
Measuring Force	≤3.2N
Type	Flat Back
Repeatability	±.0002"
Dial Reading	+/-0-100
Hysteresis	.00033"
Stem	9.52mm/3/8"
Stem Diameter	3/8"
Back	Flat back
Range Per Rev	.1"
Scale	±0-100
Stem	9.52mm/3/8"

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	With certificate of inspection, bezel clamp, limit hands
Range:	4 "
Range per rev.:	0,1"
Graduation:	0,001"
Accuracy:	±0,002"
H MPE (Hysteresis):	0,00033"
R MPE (Repeatability):	±0,0002"
Error of indication one revolution:	±0,002"
MPE first one revolution:	±0,001"
MPE first 2 1/2 revolutions:	±0,001"
MPE > 2 1/2-10 revolutions:	±0,002"
Type:	ANSI/AGD Standard
Mass:	366 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Continuous dial:	Yes
Coaxial revolution counter:	Yes
Shockproof:	Yes
