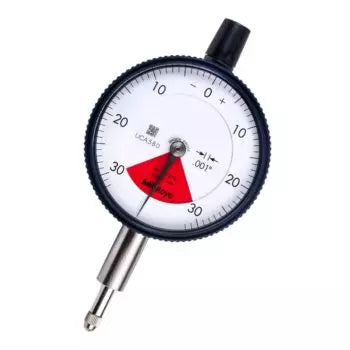

2978AB Mitutoyo Dial Indicator Standard One Rev Type for Error-free Reading: 0-.06″
The Mitutoyo 2978AB Dial Indicator One Revolution Type for Error-free reading has the following specifications:
- Range: 0-.06″
- Full Stroke: 0-.079″
- Graduations: .001″
- Dial Reading: 30-0-30
- Type: flat back
- Accuracy: +/- .001″
- Measuring Force: 0.4-1.4N
- Stem/Shank: 3/8″
- Contact Point: #4-48 UNF Thread
- Type: ANSI/AGD
- One Revolution Type: Yes
- Shockproof Type: Yes
- Dustproof Type: Yes
- Jewelled Bearing Type: No
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
