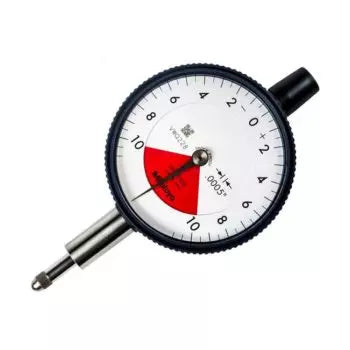

2976AB Mitutoyo Dial Indicator Standard One Rev Type for Error-free Reading: 0-.02″

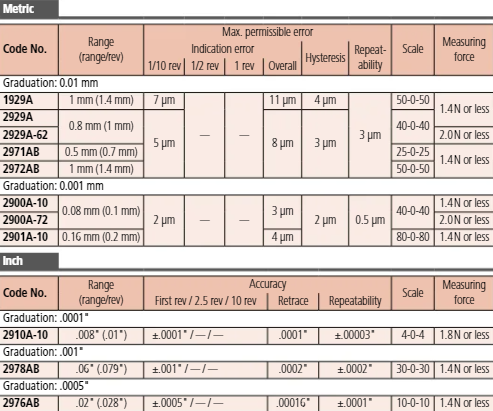

The Mitutoyo 2976AB Dial Indicator One Revolution Type for Error-free reading has the following specifications:
- Range: 0-.02″
- Full Stroke: 0-.028″
- Graduations: .0005″
- Dial Reading: 10-0-10
- Type: flat back
- Accuracy: +/- .0005″
- Measuring Force: 0.4-1.4N
- Stem/Shank: 3/8″
- Contact Point: #4-48 UNF Thread
- Type: ANSI/AGD
- One Revolution Type: Yes
- Shockproof Type: Yes
- Dustproof Type: Yes
- Jewelled Bearing Type: No
The Mitutoyo 2976AB one revolution dial indicator allows the entire spindle travel, or range, with one sweep of the hand. This eliminates the possibility of reading errors from miscounting multiple hand revolutions. The one-revolution indicator is ideal for determining if a spindle range is within or outside a tolerance. The jewelled bearing provides great wear resistance and low friction movements for smooth, precise operations. The stem and spindle are constructed of hardened steel for better durability. The glare-free crystal has a scratch-resistant coating for clearer readings and better durability. A revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping range.
