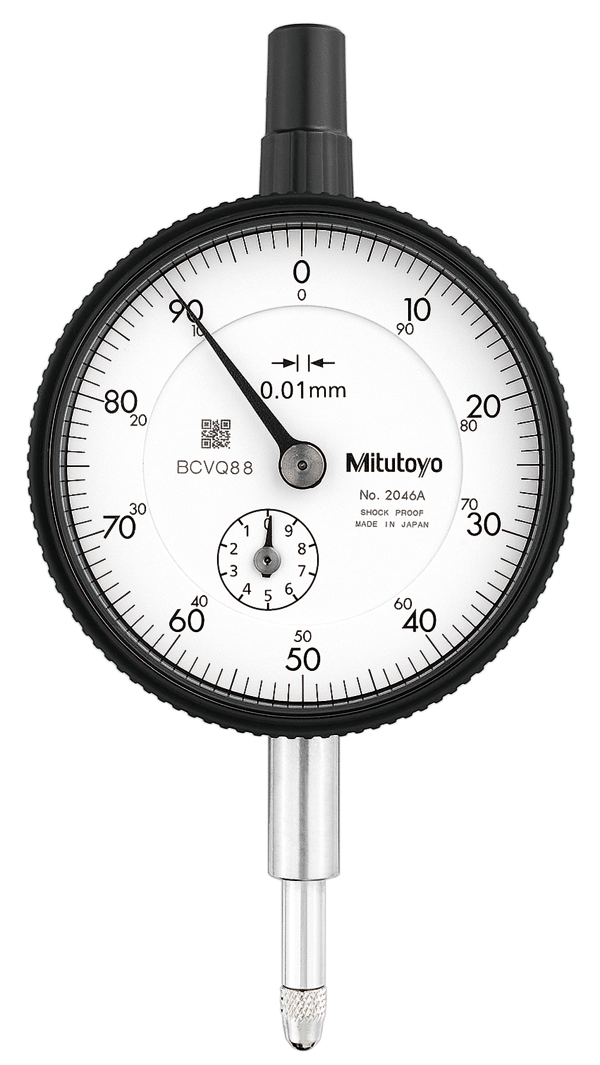

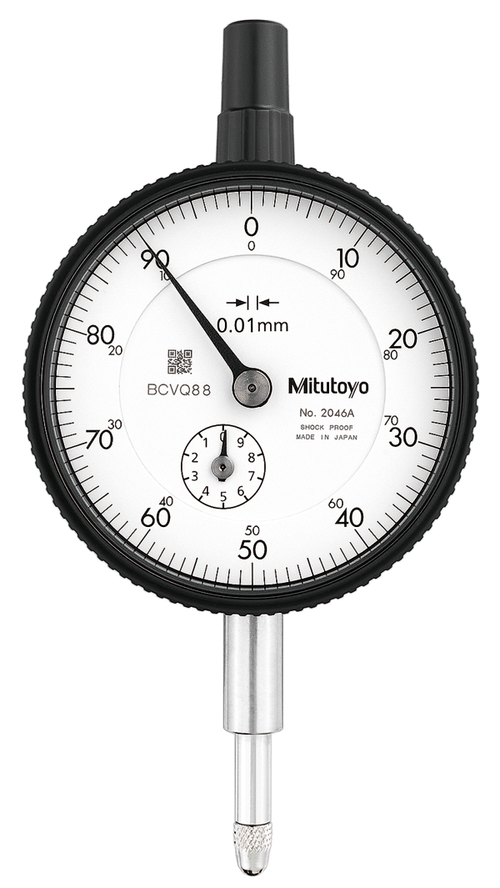

Dial Gauge, Flat Back, ANSI/AGD Type 10mm, 0,01mm 2046AB-01 3/8" Stem

Roll over image to zoom in Click on image to zoom

Dial Gauge, Flat Back, ANSI/AGD Type 10mm, 0,01mm 2046AB-01 3/8" Stem

Name: Dial Gauge, Flat Back, ANSI/AGD Type 10mm, 0,01mm 2046AB-01 3/8" Stem
Brand: Mitutoyo
SKU: 2046AB-01
Price: 72.0 EUR
Availability: InStock

MitutoyoSKU: 2046AB-01

Price:

€72.00 €95.42

Quantity:

Digital/Analog:	Analog
Inch-Metric:	Metric
Delivered:	With certificate of inspection, bezel clamp
Range:	10 mm
Range per rev.:	1 mm
Dial reading:	±0-100
Graduation:	0,01 mm
MPE any 1/10 revolution:	5 µm
MPE any 1/2 revolution:	9 µm
MPE any 1 revolution:	10 µm
MPE first one revolution:	±10 µm
MPE first 2 1/2 revolutions:	±10 µm
MPE > 2 1/2-10 revolutions:	±13 µm
H MPE (Hysteresis):	3 µm
R MPE (Repeatability):	±3 µm
Type:	ANSI/AGD Standard
Measuring force:	0,4-1,4 N
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Continuous dial:	Yes

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	2046AB-01
Measuring Range	10mm
Graduation	.01mm
Accuracy	.013mm
Measuring Force	≤1.4N
Type	Flat Back
Repeatability	.003mm
Dial Reading	+/-0-100
Dial Face Size Ø	57mm
Hysteresis	.003mm
Stem Diameter	3/8"
Back	Flat back
Calibration Code	CAL14 B1
