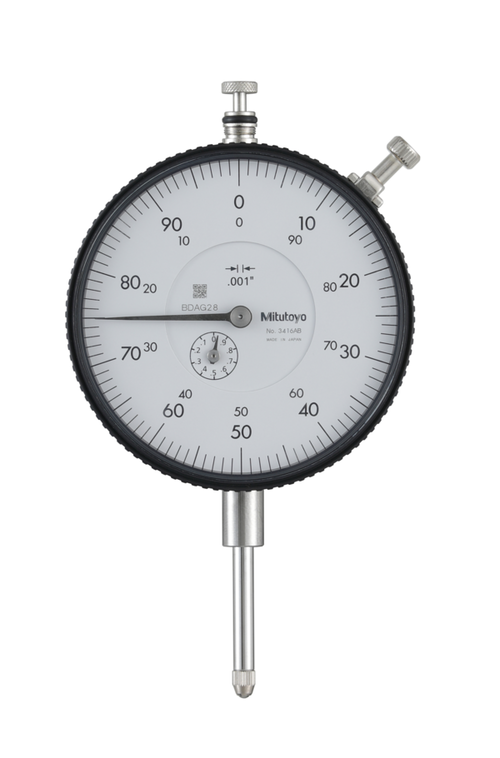

Dial Gauge, Flat Back, ANSI/AGD Type 1", 0,001" 3416AB Face Dian 3.07"

Roll over image to zoom in Click on image to zoom

Dial Gauge, Flat Back, ANSI/AGD Type 1", 0,001" 3416AB Face Dian 3.07"

Name: Dial Gauge, Flat Back, ANSI/AGD Type 1", 0,001" 3416AB Face Dian 3.07"
Brand: Mitutoyo
SKU: 3416AB
Price: 110.16 EUR
Availability: InStock

MitutoyoSKU: 3416AB

Price:

€110.16 €153.00

Quantity:

This is a standard, inch dial indicator. It offers you the following benefits:

Large-diameter dial face ø = 78 mm for easy reading
Supplied with limit markers and a bezel clamp as standard
0,001" / 0,0001" graduation

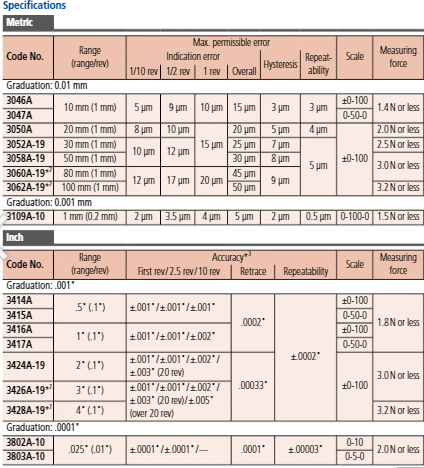

Product Information
Part Number	3416AB
Measuring Range	1"
Accuracy	["±.0002\""]
Graduation	.001"
Accuracy	+/-.0002"
Unit of Measurement	Inch
Measuring Force	≤1.8N
Type	Flat Back
Repeatability	±.0002"
Dial Reading	+/-0-100
Dial Face Size Ø	78mm
Hysteresis	.0002"
Stem	9.52mm/3/8"
Stem Diameter	3/8"
Back	Flat back
Range Per Rev	.1"
Scale	±0-100
Calibration Code	CAL14 B4
Stem	9.52mm/3/8"

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	With certificate of inspection, bezel clamp
Range:	1 "
Range per rev.:	0,1"
Graduation:	0.001"
Accuracy:	±0.002"
H MPE (Hysteresis):	0,0002"
R MPE (Repeatability):	±0,0002"
Error of indication one revolution:	±0.002"
MPE first one revolution:	±0,001"
MPE first 2 1/2 revolutions:	±0,001"
MPE > 2 1/2-10 revolutions:	±0,002"
Type:	ANSI/AGD Standard
Measuring force:	0,4-1,8 N
Mass:	258 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Continuous dial:	Yes
