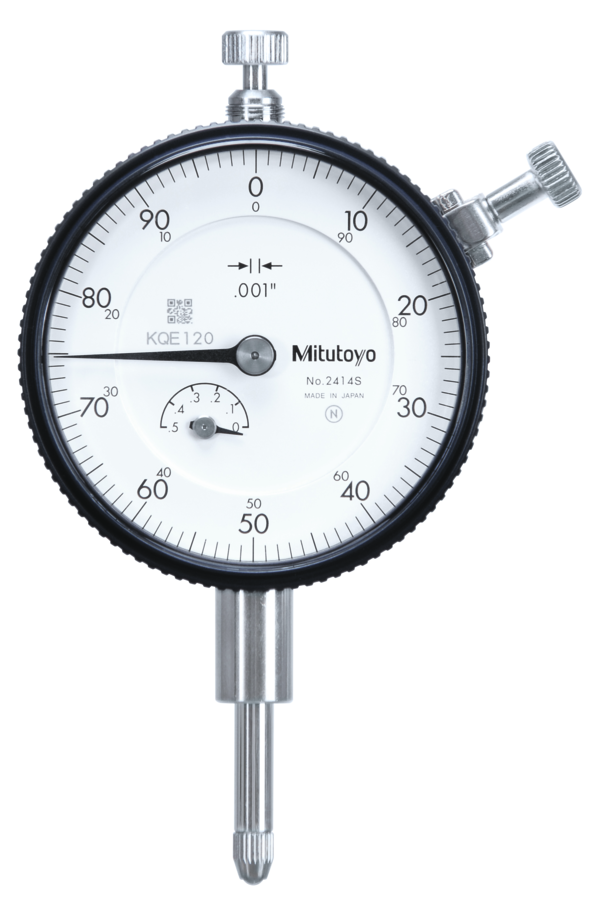

Dial Gauge, Flat Back, ANSI/AGD Type 0,5", 0,001" 2414AB

Roll over image to zoom in Click on image to zoom

Dial Gauge, Flat Back, ANSI/AGD Type 0,5", 0,001" 2414AB

Name: Dial Gauge, Flat Back, ANSI/AGD Type 0,5", 0,001" 2414AB
Brand: Mitutoyo
SKU: 2414AB
Price: 76.19 EUR
Availability: InStock

MitutoyoSKU: 2414AB

Price:

€76.19 €104.38

Quantity:

Standard Type, 0,5" / 0,125" Range, 0,001" / 0,005" Graduation - Inch

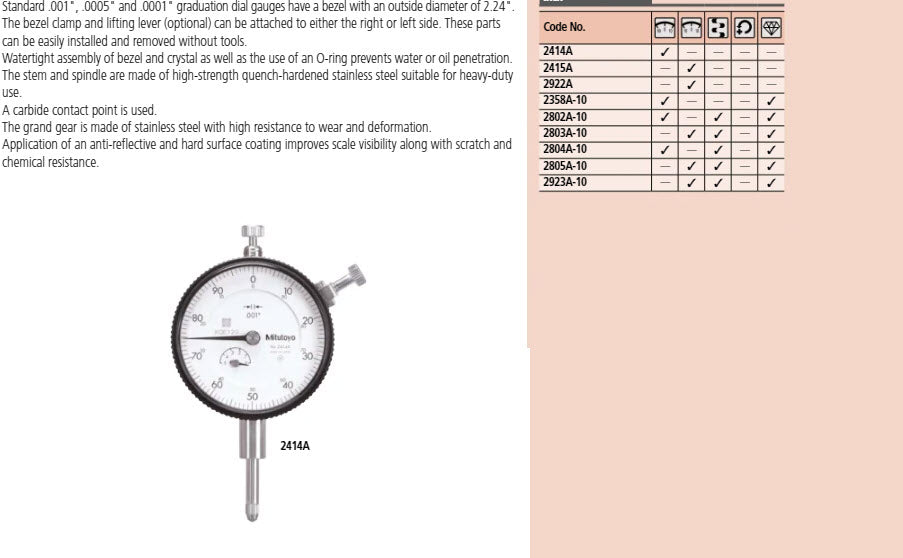

This is a standard, inch dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Product Information
Part Number	2414AB
Measuring Range	0.5"
Graduation	.001"
Accuracy	.001"
Unit of Measurement	Metric
Measuring Force	≤1.8N
Type	Flat Back
Repeatability	±.0002"
Dial Reading	+/-0-100
Dial Face Size Ø	57mm
Hysteresis	.0002"
Stem	9.52mm/3/8"
Stem Diameter	3/8"
Back	Flat back
Range Per Rev	.1"
Scale	±0-100
Calibration Code	CAL14 B2
Stem	9.52mm/3/8"

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	With certificate of inspection, bezel clamp
Range:	0,5 "
Range per rev.:	0,1"
Graduation:	0,001"
H MPE (Hysteresis):	0,0002"
R MPE (Repeatability):	±0,0002"
MPE first one revolution:	±0,001"
MPE first 2 1/2 revolutions:	±0,001"
MPE > 2 1/2-10 revolutions:	±0,001"
Type:	ANSI/AGD Standard
Measuring force:	0,4-1,8 N
Mass:	164 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Continuous dial:	Yes
