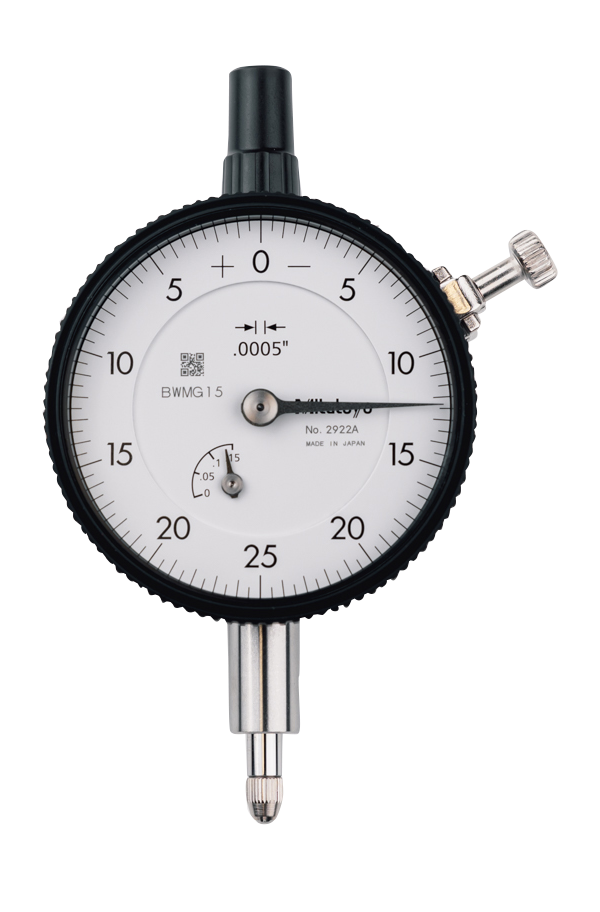

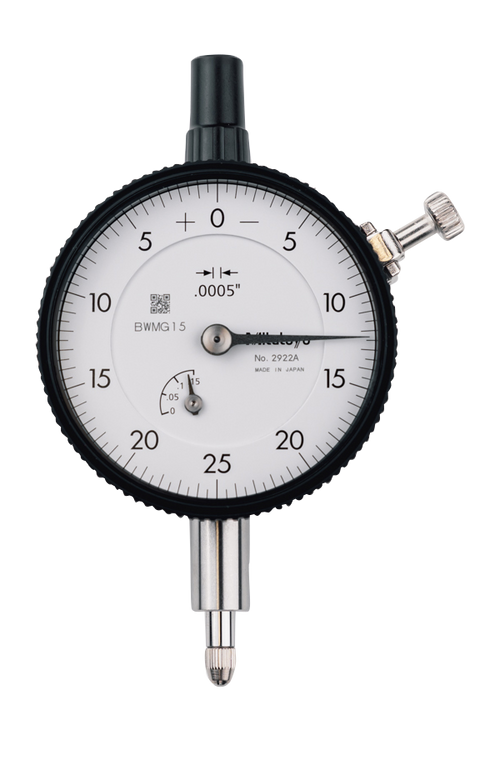

Dial Gauge, Flat Back, ANSI/AGD Type 0,125", 0,0005" 2922AB

Roll over image to zoom in Click on image to zoom

Dial Gauge, Flat Back, ANSI/AGD Type 0,125", 0,0005" 2922AB

Name: Dial Gauge, Flat Back, ANSI/AGD Type 0,125", 0,0005" 2922AB
Brand: Mitutoyo
SKU: 2922AB
Price: 80.39 EUR
Availability: InStock

MitutoyoSKU: 2922AB

Price:

€80.39 €110.13

Quantity:

Standard Type, 0,5" / 0,125" Range, 0,001" / 0,005" Graduation - Inch

This is a standard, inch dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

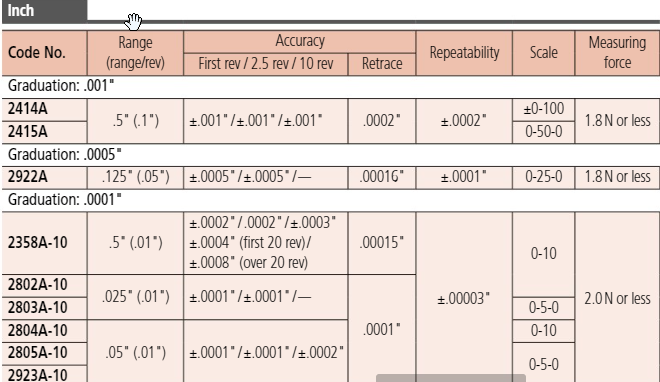

Product Information
Part Number	2922AB
Measuring Range	0.125"
Graduation	.0005"
Accuracy	.0005"
Unit of Measurement	Inch
Measuring Force	≤1.8N
Type	Lug Back
Repeatability	±.0001"
Dial Reading	0-25-0
Dial Face Size Ø	57mm
Hysteresis	.00016"
Stem	9.52mm/3/8"
Stem Diameter	3/8"
Back	Flat back
Range Per Rev	.05"
Scale	0-25-0
Calibration Code	CAL14 B1
Stem	9.52mm/3/8"

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	With certificate of inspection, bezel clamp
Range:	0,125 "
Range per rev.:	0,05"
Graduation:	0,0005"
Accuracy:	±0,0005"
H MPE (Hysteresis):	0,00016"
R MPE (Repeatability):	±0,0001"
Error of indication one revolution:	±0,0005"
MPE first one revolution:	±0,0005"
MPE first 2 1/2 revolutions:	±0,0005"
Type:	ANSI/AGD Standard
Measuring force:	0,4-1,8 N
Mass:	164 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Balanced dial:	Yes
Continuous dial:	Yes
