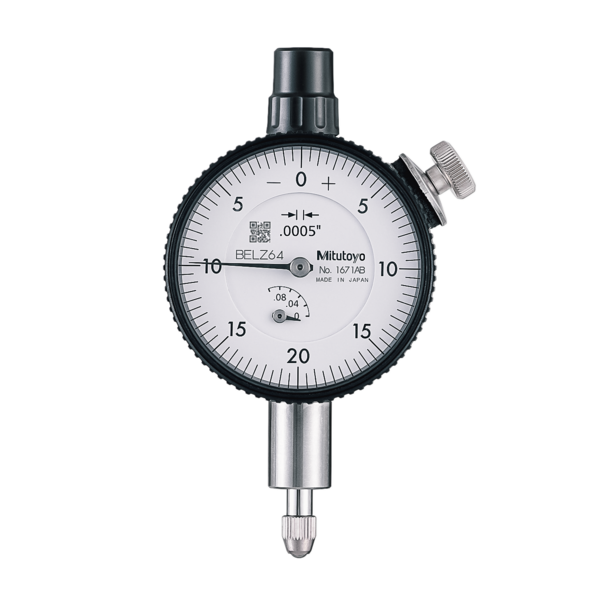

Dial Gauge, Flat Back, ANSI/AGD Type 0,1", 0,0005" 1671AB

Roll over image to zoom in Click on image to zoom

Dial Gauge, Flat Back, ANSI/AGD Type 0,1", 0,0005" 1671AB

Name: Dial Gauge, Flat Back, ANSI/AGD Type 0,1", 0,0005" 1671AB
Brand: Mitutoyo
SKU: 1671AB
Price: 69.12 EUR
Availability: InStock

MitutoyoSKU: 1671AB

Price:

€69.12 €96.00

Quantity:

Compact Type, Small Diameter - Inch

This is a compact, inch dial indicator with a bezel Ø 40 mm. It offers you the following benefits:

It is ideal for use in applications where space is limited.
Green limit markers are a standard accessory.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

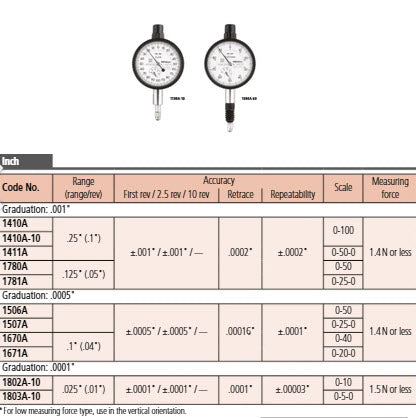

Product Information
Part Number	1671AB
Measuring Range	.01"
Resolution	["0.0005\""]
Graduation	.0005"
Accuracy	.0005"
Unit of Measurement	Inch
Measuring Force	≤1.4N
Type	Flat Back
Repeatability	±.0001"
Hysteresis	.00016"
Stem	9.52mm/3/8"
Back	Flat back
Range Per Rev	.04"
Scale	0-20-0
Calibration Code	CAL14 B1
Stem	9.52mm/3/8"

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	With certificate of inspection, bezel clamp
Range:	0,1 "
Range per rev.:	0,04"
Graduation:	0,0005"
H MPE (Hysteresis):	0,00016"
R MPE (Repeatability):	±0,0001"
MPE first one revolution:	±0,0005"
MPE first 2 1/2 revolutions:	±0,0005"
Type:	ANSI/AGD Standard
Measuring force:	0,4-1,4 N
Mass:	90 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Continuous dial:	Yes
