Dial Gauge, ANSI/AGD Type Back Plunger Design, One Revolution, Shockproof, 0,04", 0,0005" 2961A
Dial Gauge, ANSI/AGD Type Back Plunger Design, One Revolution, Shockproof, 0,04", 0,0005" 2961A
Dial Gauge, ANSI/AGD Type Back Plunger Design, One Revolution, Shockproof, 0,04", 0,0005" 2961A
Dial Gauge, ANSI/AGD Type Back Plunger Design, One Revolution, Shockproof, 0,04", 0,0005" 2961A
Roll over image to zoom in Click on image to zoom
Dial Gauge, ANSI/AGD Type Back Plunger Design, One Revolution, Shockproof, 0,04", 0,0005" 2961ADial Gauge, ANSI/AGD Type Back Plunger Design, One Revolution, Shockproof, 0,04", 0,0005" 2961ADial Gauge, ANSI/AGD Type Back Plunger Design, One Revolution, Shockproof, 0,04", 0,0005" 2961ADial Gauge, ANSI/AGD Type Back Plunger Design, One Revolution, Shockproof, 0,04", 0,0005" 2961A

Dial Gauge, ANSI/AGD Type Back Plunger Design, One Revolution, Shockproof, 0,04", 0,0005" 2961A

Mitutoyo SKU: 2961A
List price: €258.00 Offer price: €200.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

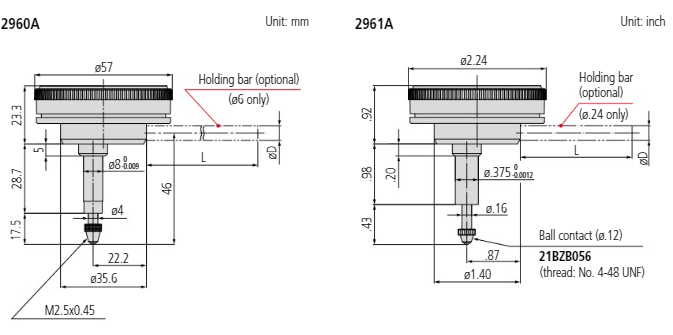

This is a back plunger type dial indicator with bezel ø 57 mm.

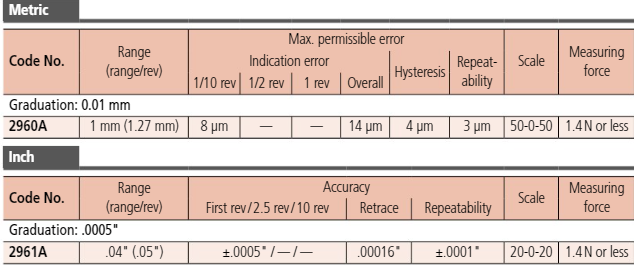

Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Type:
ANSI/AGD Standard
Delivered:
With certificate of inspection, bezel clamp, limit hands
Range:
0,04 "
Range
per rev.:
0,04"
Graduation:
0,0005"
Accuracy:
±0,001"
H MPE (Hysteresis):
0,00016"
R MPE (Repeatability):
±0,0001"
Error of indication one revolution:
±0,001"
MPE first one revolution:
±0,0005"
Mass:
115 g
Stem:
9.52 mm / 0.375"
Contact point:
Carbide tipped, thread: 4-48UNF

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
