Dial Gauge, ANSI/AGD Type Back Plunger Design, 0,2", 0,001" 1167A

Roll over image to zoom in Click on image to zoom

Dial Gauge, ANSI/AGD Type Back Plunger Design, 0,2", 0,001" 1167A

Name: Dial Gauge, ANSI/AGD Type Back Plunger Design, 0,2", 0,001" 1167A
Brand: Mitutoyo
SKU: 1167A
Price: 129.58 EUR
Availability: InStock

MitutoyoSKU: 1167A

Price:

€129.58 €177.50

Quantity:

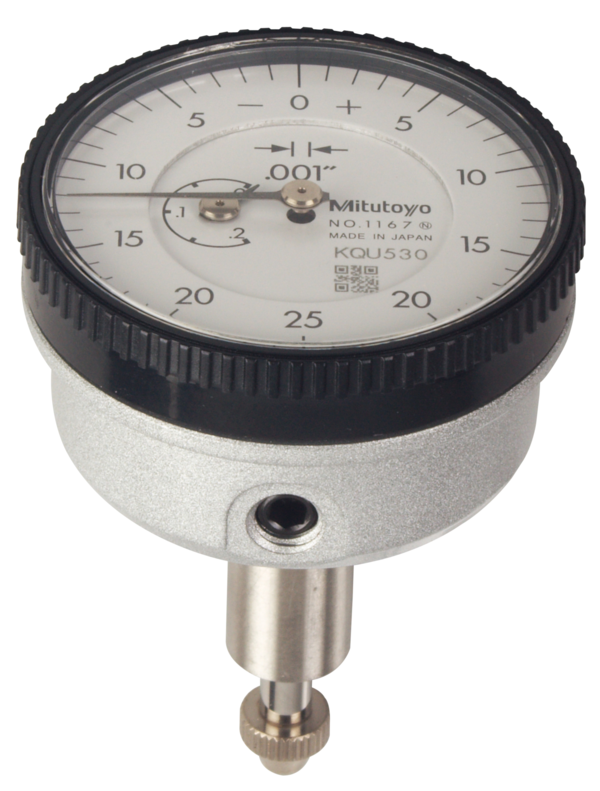

This is a back plunger, dial indicator with bezel ø 40 mm. It offers you the following benefits:

It is ideal for use in applications where space is limited.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

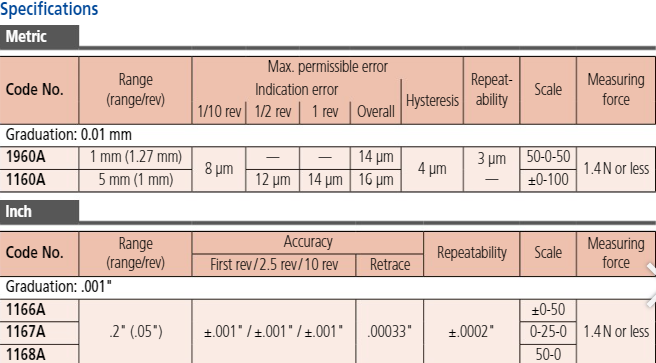

Product Information
Part Number	1167A
Measuring Range	0.2"
Graduation	.001"
Accuracy	.001"
Unit of Measurement	Inch
Measuring Force	≤1.4N
Type	Back Plunger
Repeatability	±.0002"
Dial Reading	0-25-0
Dial Face Size Ø	40mm
Hysteresis	.00033"
Stem	.375"/3/8"
Stem Diameter	3/8"
Range Per Rev	.05"
Scale	0-25-0
Calibration Code	CAL14 B1
Stem	.375"/3/8"

Digital/Analog:	Analog
Inch-Metric:	Inch
Type:	ANSI/AGD Standard
Delivered:	With certificate of inspection
Range:	0,2 "
Range per rev.:	0,05"
Graduation:	0.001"
H MPE (Hysteresis):	0,00033"
R MPE (Repeatability):	±0,0002"
MPE first one revolution:	±0,001"
MPE first 2 1/2 revolutions:	±0,001"
MPE > 2 1/2-10 revolutions:	±0,001"
Measuring force:	0,4-1,4 N
Mass:	80 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
