Mitutoyo Depth Micrometer, Interchangeable Rods 0-6", 2,5" Base 129-128

Mitutoyo SKU: 129-128
List price: €235.00 Offer price: €164.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

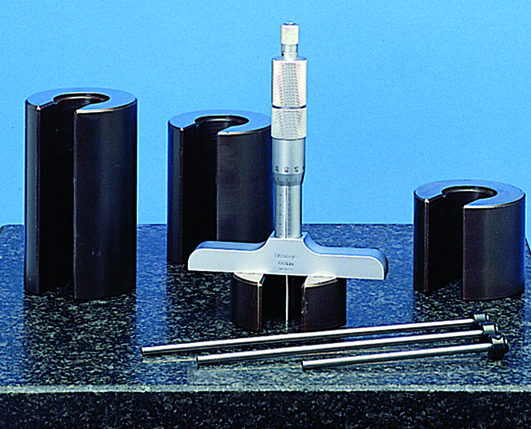

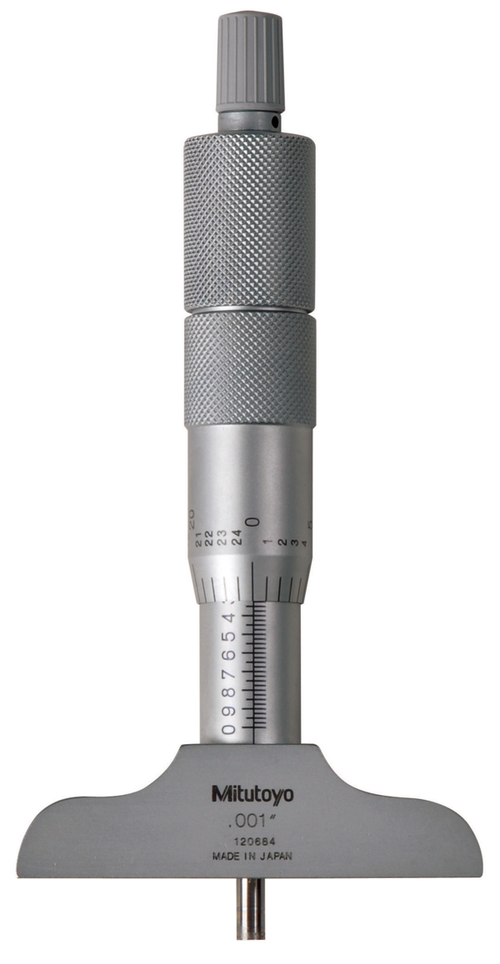

A non-digital Mitutoyo depth micrometer using interchangeable measuring rods to cover a wide measuring range. The 2.5‰Û base is made from tool steel, hardened and ground with a micro-lapped reference surface.

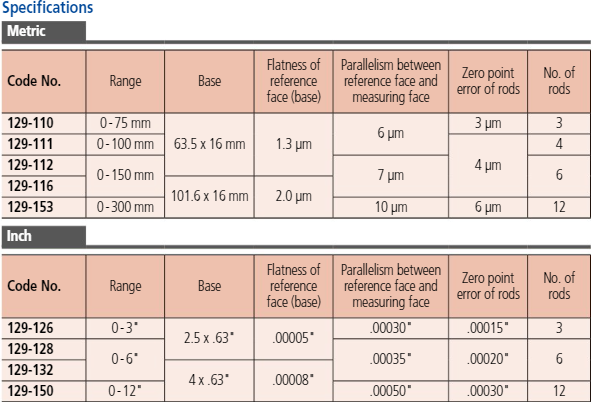

Specification
Digital/Analog:
Analog
Graduation:
0,001"
Inch-Metric:
Inch
Range:
0 - 6 "
Measuring span:
25 mm
Spindle pitch:
0,5 mm
Micrometer Head Feed (0-25 mm):
±3 µm
Zero point errors of rods:
±4 µm (0-150 mm)
±6 µm (0-300 mm)
Parallelism base/rod:
(4+ L/50) µm L=max. measuring length (mm)
Measuring face:
Hardened, precision ground, micro-lap finish
Base:
Hardened tool steel

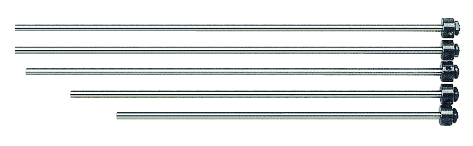

Number of rods:
6
Scale:
Thimble and sleeve satin chrome finish ∅18 mm
Measuring force:
5-10 N
Delivered:
Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863
Mass:
370 g
Delivered:
Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863
