Mitutoyo Depth Micrometer 0-75mm 63mm Base 129-110

Mitutoyo SKU: 129-110
List price: €227.80 Offer price: €159.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

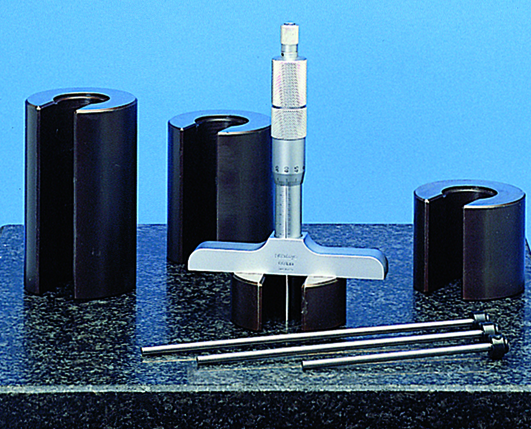

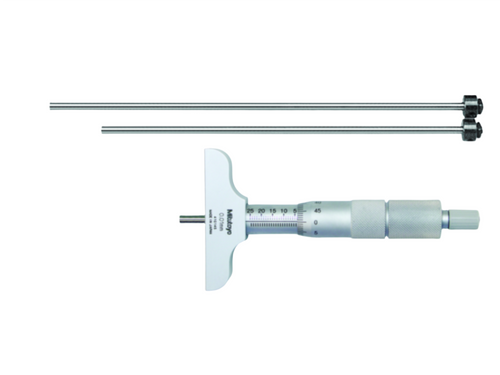

A Mitutoyo non-digital depth micrometer using interchangeable measuring rods to cover a wide measuring range. The 60mm base is made from tool steel, hardened and ground with a micro-lapped reference surface.
Specification
Digital/Analog:
Analog
Graduation:
0,01 mm
Inch-Metric:
Metric
Measuring span:
25 mm
Spindle pitch:
0,5 mm
Micrometer Head Feed (0-25 mm):
±3 µm
Zero point errors of rods:
±3 µm
Flatness base:
1.3 µm
Flatness rod:
0,3 µm
Parallelism base/rod:
6 µm
Measuring face:
Hardened, precision ground, micro-lap finish
Base:
Hardened tool steel

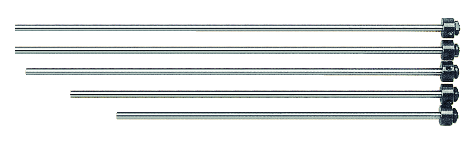

Number of rods:
3
Scale:
Thimble and sleeve satin chrome finish ∅18 mm
Measuring force:
5-10 N
Delivered:
Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863
Mass:
280 g
Delivered:
Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863
