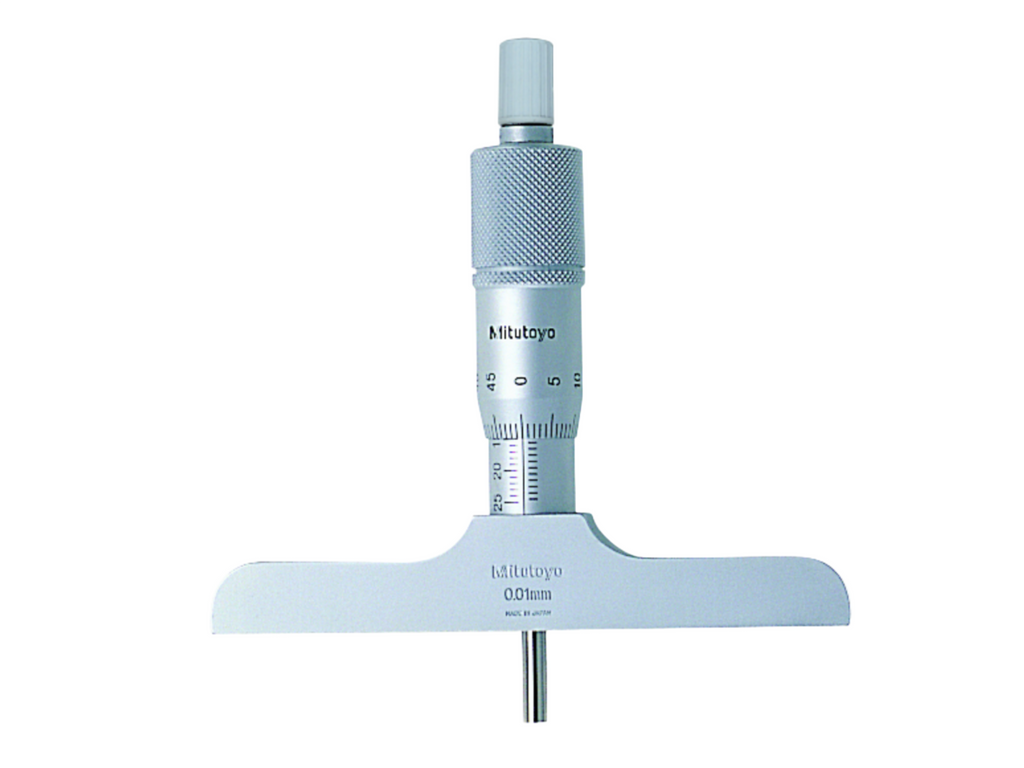

Mitutoyo Depth Micrometer 0-25mm 128-102

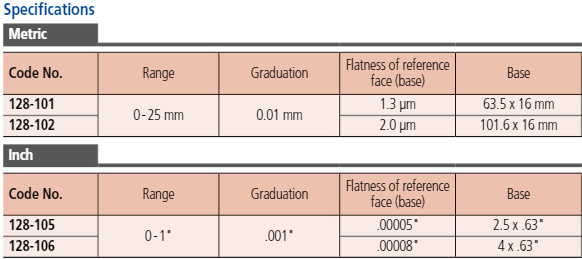

Features
- Digital/Analog: Analog
- Graduation: 0,01 mm
- Inch-Metric: Metric
- Measuring span: 25 mm
- Spindle pitch: 0,5 mm
- Flatness base: 1.3 µm
- Flatness rod: 0.3 µm
- Parallelism base/rod: 5 µm
- Measuring face: Hardened, precision ground, micro-lap finish
- Base: Hardened tool steel
- Base (W x T): 101.6 x 16 mm
- Scale: Thimble and sleeve satin chrome finish, ∅ 18 mm
- Measuring force: 5-10 N
- Mass: 200 g
All images are for representation only.
