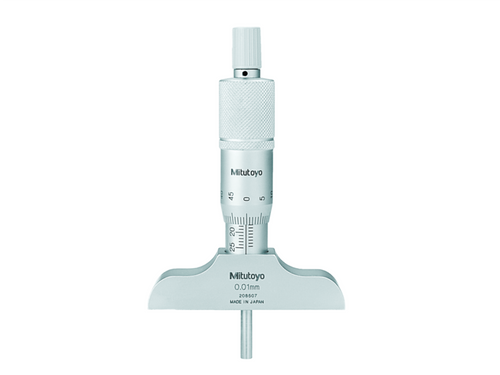

Mitutoyo Depth Micrometer 0-1" 4" Base 128-106

Name: Mitutoyo Depth Micrometer 0-1" 4" Base 128-106
Brand: Mitutoyo
SKU: 128-106
Price: 152.39 EUR
Availability: InStock

MitutoyoSKU: 128-106

Price:

€152.39 €208.75

Quantity:

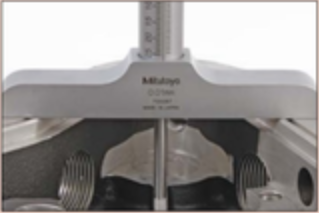

A Mitutoyo non-digital depth micrometer. The 4" base is made from tool steel, hardened and ground with a micro-lapped reference surface.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

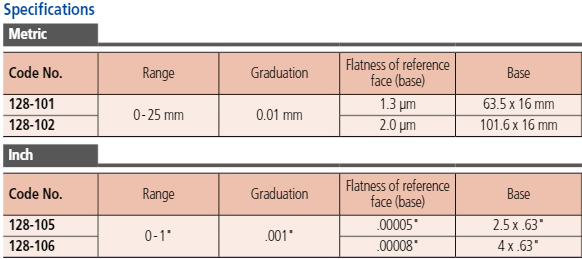

Product Information
Part Number	128-106
Measuring Range	0-1"
Accuracy	["±.00015\""]
Graduation	.001"
Accuracy	+/-.00015"
Unit of Measurement	Inch
Display Type	Analogue
Type	Depth Micrometer
Graduation on Vernier Sleeve /Dial	.001"
Flatness	.000012"
Parallelism	.00012"
Calibration Code	CAL10 B1

Digital/Analog:	Analog
Graduation:	0,001"
Inch-Metric:	Inch
Range:	0 - 1 "
Measuring face:	Hardened, precision ground, micro-lap finish
Measuring span:	25 mm
Base:	Hardened tool steel
Base (W x T):	4 x 0.63"
Scale:	Thimble and sleeve satin chrome finish, ∅ 18 mm
Measuring force:	5-10 N
Mass:	250 g
Delivered:	Including box and spanner 301336
Delivered:	Including box and spanner 301336
Spindle pitch:	0,5 mm
