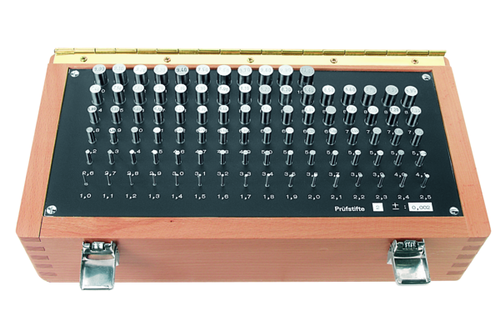

Mitutoyo; Measuring Pin Set
This is a complete incremental set of plug (or pin) gauges, that offers you the following benefits:
- It includes 91 pieces that you can use in the inspection room, or on the shop floor in tool and fixture making.
All images are for representation only.
| Accuracy: |
DIN 2269
error limit of diameter grade 1: ±1 µm grade 2: ±2 µm |
| Grade: |
1
|
| Finish: |
Very fine ground,
from Ø 3 mm inscribed |
| Hardness: |
HRC 60-62
|
| Roughness: |
RA ≤ 0,1 µm
|
| Length: |
up to Ø 6 mm = 50 mm
over Ø 6 mm = 70 mm |
| Remarks: |
1-10 mm, rising by 0.1 mm
|
| Delivered: |
In a wooden box
|
| Mass: |
3 kg
|
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
