Mitutoyo Crimp Height Micrometer 0-25mm 112-401
Mitutoyo Crimp Height Micrometer 0-25mm 112-401
Mitutoyo Crimp Height Micrometer 0-25mm 112-401
Roll over image to zoom in Click on image to zoom
Mitutoyo Crimp Height Micrometer 0-25mm 112-401Mitutoyo Crimp Height Micrometer 0-25mm 112-401Mitutoyo Crimp Height Micrometer 0-25mm 112-401

Mitutoyo Crimp Height Micrometer 0-25mm 112-401

Mitutoyo SKU: 112-401
List price: €255.00 Offer price: €198.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

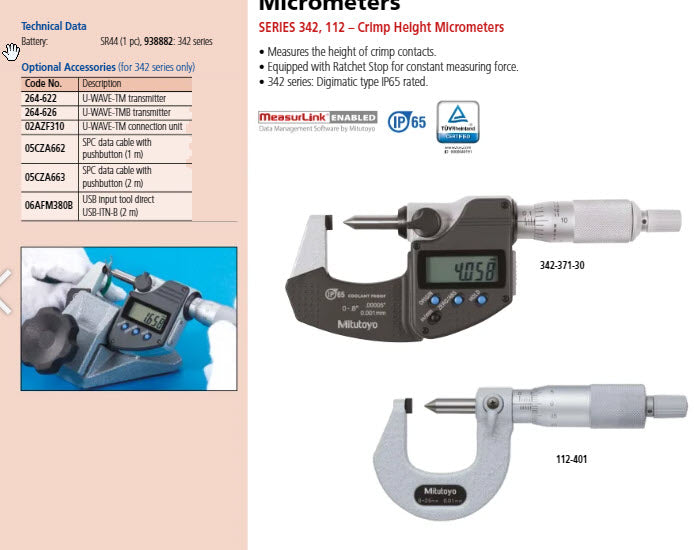

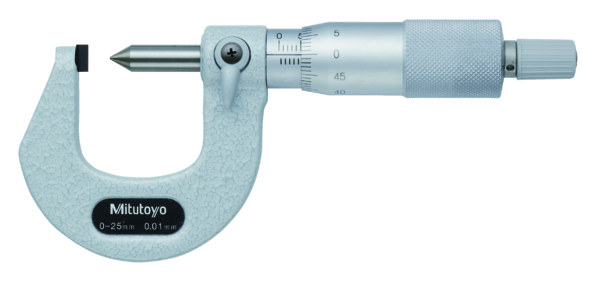

A Mitutoyo non-digital micrometer provided with pointed spindle to enable measurement of the crimp height of electrical contacts. A ratchet stop guarantees repeatable measurement.

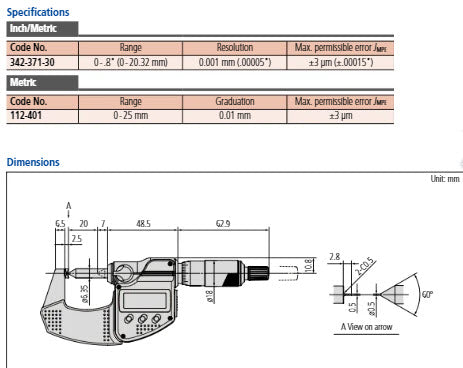

Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner
Inch-Metric:
Metric
Range:
0 - 25 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±3 µm
Measuring face:
Hardened steel, micro-lap finish
Measuring spindle:
With spindle lock,
ø 6.35 mm, spindle pitch 0.5 mm (342-271-30, 112-401)
without spindle lock
ø 6.35 mm, spindle pitch (342-451-20) 10 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
3 - 8 N
Power supply:
1 battery SR-44
Battery life:
Appr. 2.4 years (342-271-30),
5 years under normal use
(342-451-20)
Delivered:
Including box, 1 battery
Mass:
165 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
