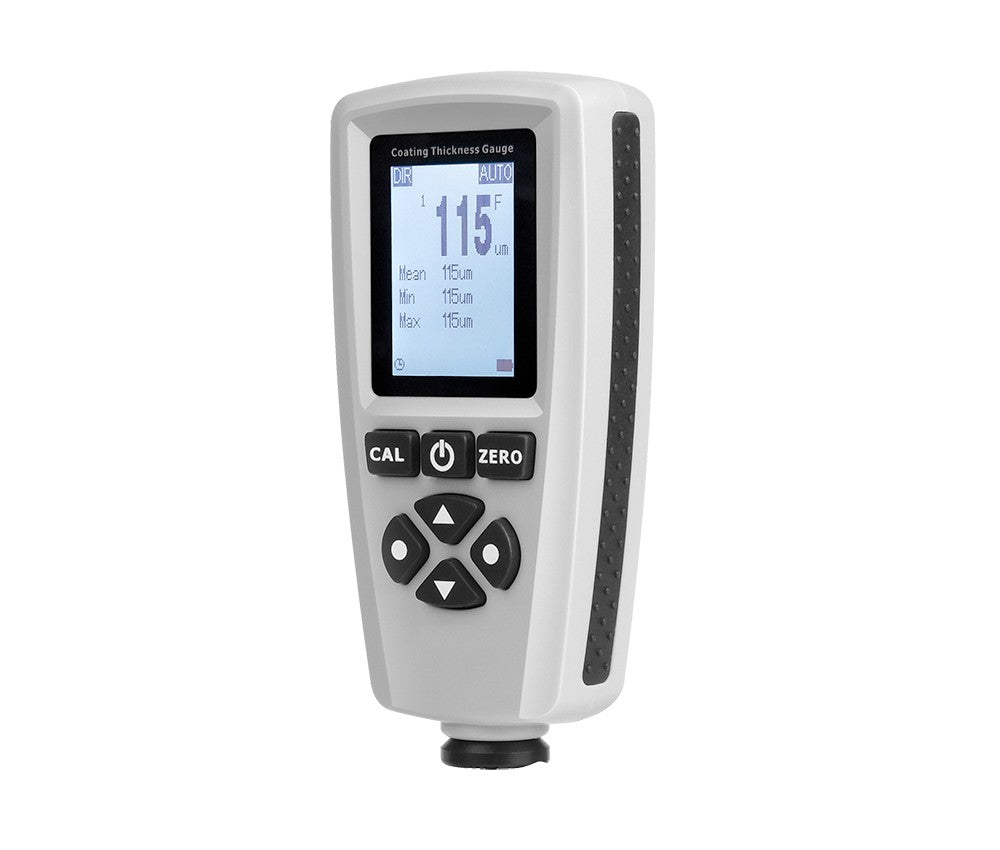

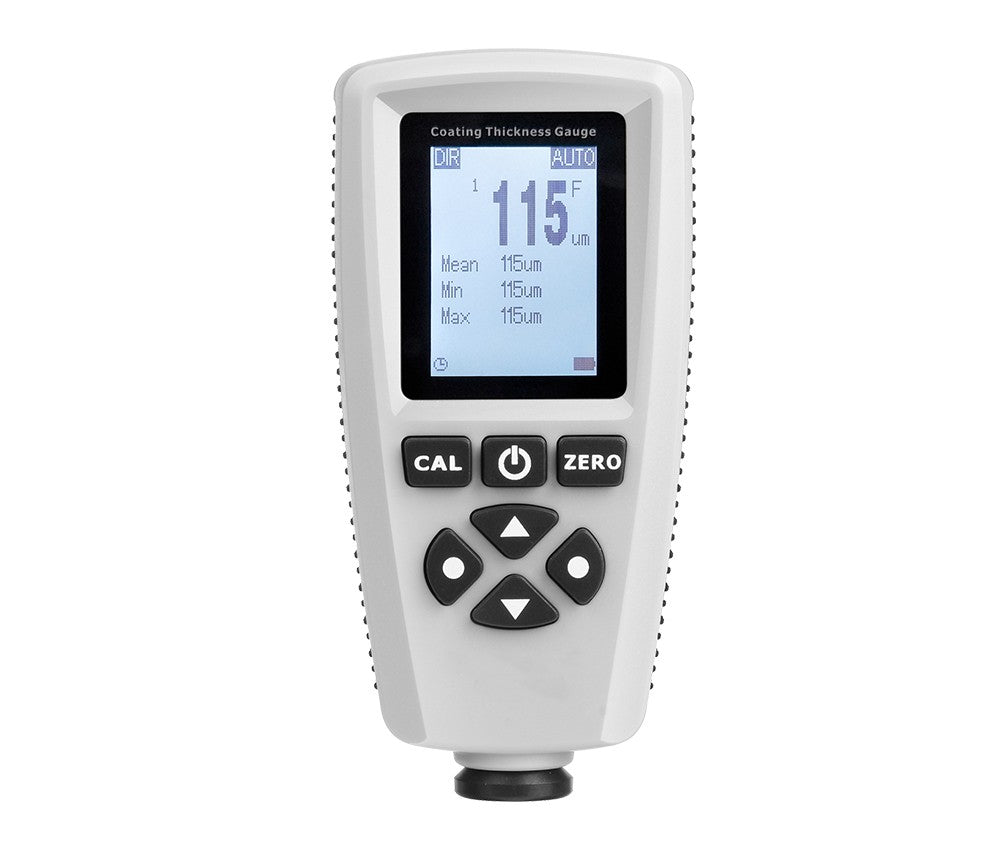

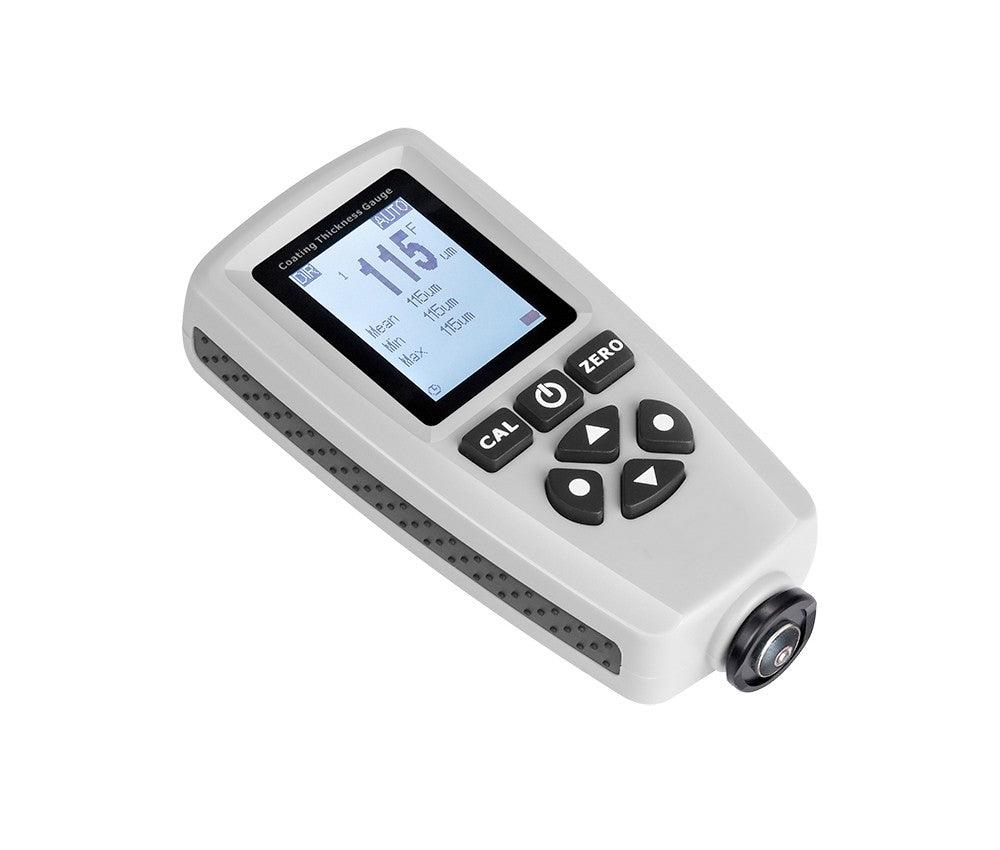

These gauges can be used for non-destructive coating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, and insulating coatings, e.g. paint and anodizing coatings on non-ferrous metals.
【Features and Functions】
· Range 0~1500um, accuracy ±(1%±1)um
· 128*128dots LCD display
· Menu interface

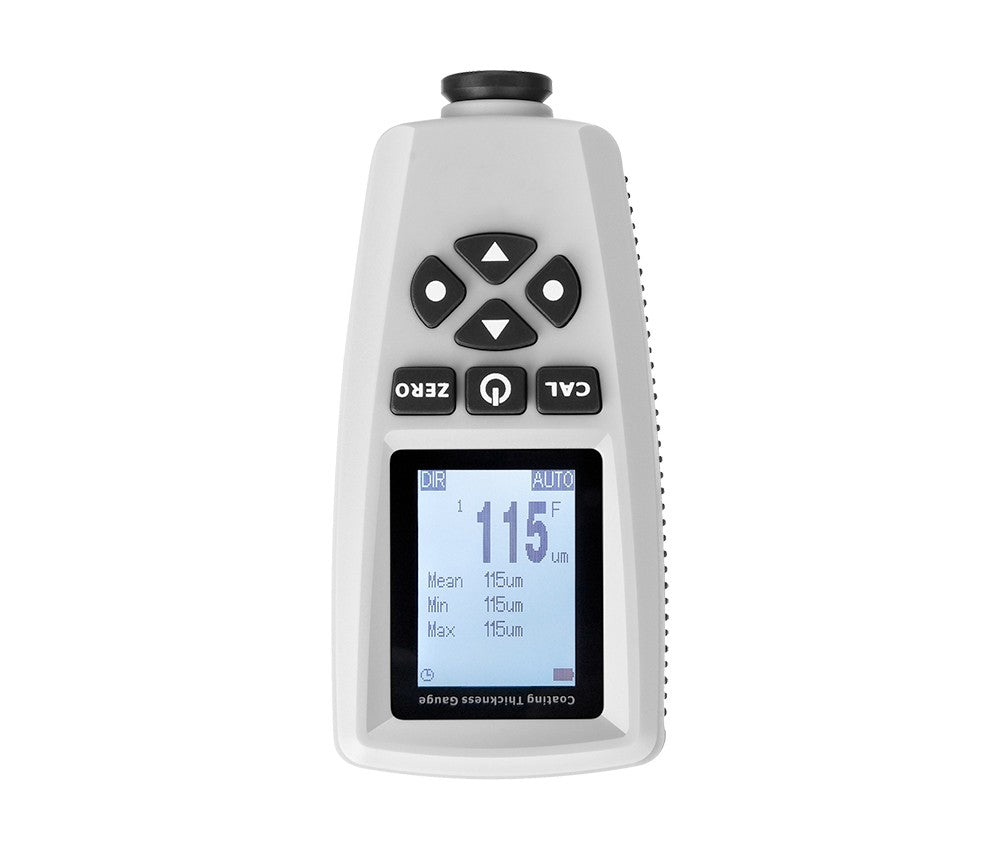

· LCD can be rotated to be used easily
· Red LED alarm indication
· LCD shows mean, maximum, minimum and standard deviation
· User can set alarm limit
· Readings can be stored, recalled and deleted
· Easy to do zero calibration and support multi-point calibration
· Connect with PC via USB and download readings
· Multi-language supported
· Up to 5 measurement groups supported
· Automatically detect the substrates type(F or N)
· Unit optional: um, mm and mils
【APPLICATION】
Coating thickness testing for car paint, electroplating, surface technology, pipeline anticorrosion coating, mechanical equipment surface anticorrosion, chemical equipment and quality control.
【Specifications and Selection Guide】
|
Model no.
|
PT-770
|
PT-770S
|
PT-770E
(with external probe)
|
PT-500APT
|
PT-500AE
(with external probe)
|
PT-500E
|
|
Probe type
|
Fe
NFe
|
Fe
NFe
|
Fe
NFe
|
Fe
NFe
|
Fe
NFe
|
Fe
NFe
|
|
Principle
|
Magnetic induction
Eddy currents
|
Magnetic induction
Eddy currents
|
Magnetic induction
Eddy currents
|
Magnetic induction
Eddy currents
|
Magnetic induction
Eddy currents
|
Magnetic induction
Eddy currents
|
|
Range
|
0~2000um
|
0~2000um
|
0~2000um
|
0~1500um
|
0~1500um
|
0~1500um
|
|
Accuracy
|
±(2.5%+1um)
|
±(2%+1um)
|
±(2.5%+1um)
|
±(3%+1um)
|
±(3%+1um)
|
±(3%+1um)
|
|
Resolution
|
0~99.9um(0.1m),
others(1um)
|
0~99.9um(0.1m),
others(1um)
|
0~99.9um(0.1m),
others(1um)
|
0~99.9um(0.1m),
others(1um)
|
0~99.9um(0.1m),
others(1um)
|
0~99.9um(0.1m),
others(1um)
|
|
Readings memory
|
320
|
2000
|
320
|
|
|
|
|
Interface
|
USB
|
USB
|
USB
|
|
|
|
|
Size/Weight
|
113X53X24mm/80g
|
113X53X24mm/80g
|
113X53X24mm/144g
|
116X53X24mm/84g
|
116X53X24mm/146g
|
116X53X24mm/144g
|
|
Power supply: 2pcs 1.5v AAA batteries
Operation environment: -10 to 50℃
Storage environment: -10 to 60℃
Certificate and standard: CE, ROHS, ISO 2178, 2360, GB/T 4956-2003, 4957-2003
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Interface: USB
Power supply: Two 1.5v AAA batteries
Operation environment: -10 to 50℃
Storage environment: -10 to 60℃
Certificate and standard: CE, ROHS, ISO 2178, 2360, GB/T 4956-2003, 4957-2003
Size and weight: 113mmX53mmX24mm 80g
|
