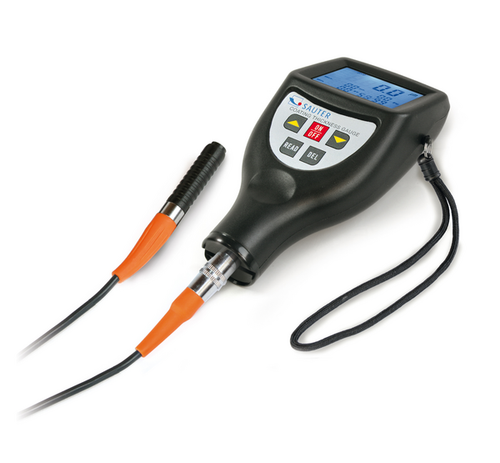

- External sensor for difficult-to-access measuring points

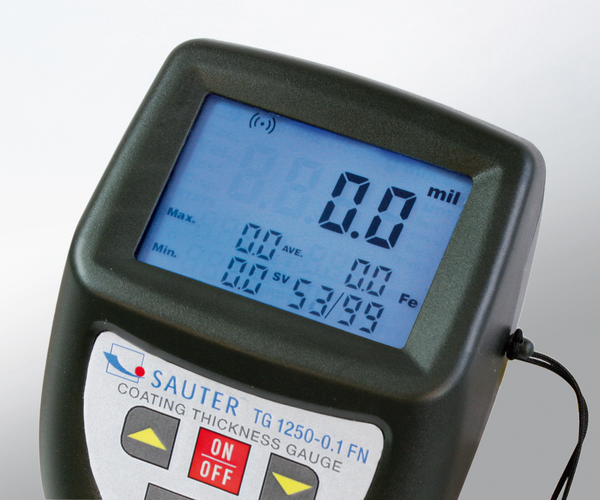

- LCD display, backlit, display of all information at a glance
- Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of 1 % (or less) of the measured value
- Two different measuring modes: single measurement and scan mode for continuous measurement
- Mini Statistics Kit: displays the measured result, the average value and the max and the min value
- Internal memory for up to 99 measurement values
- Selectable measuring units: µm inch (mil)
- Base plate and calibration foils included
- Data interface RS-232 as standard
- Delivered in a robust carrying case
-
Measuring range coating thickness [d] (µm) 100 µm; 1250 µm Readability coating thickness [d] (µm) 0,1 µm; 1 µm Tolerance (% of [Max]) 3% Units µm, inch (mil) Coating thickness gauge sensor type FE, NFE Test object thickness coating Non-magnetic coatings on iron, steel, Type F, Coatings on non-magnetic metals, type N Battery 2×1.5 V AAA Memory function Statistic function Increase in measurement accuracy possible Continuous capture possible Material housing plastic Dimensions completely mounted (W×D×H) 130×64×32 mm Cable length 1 m Sensor placement position external GTIN/EAN number 4045761140110
