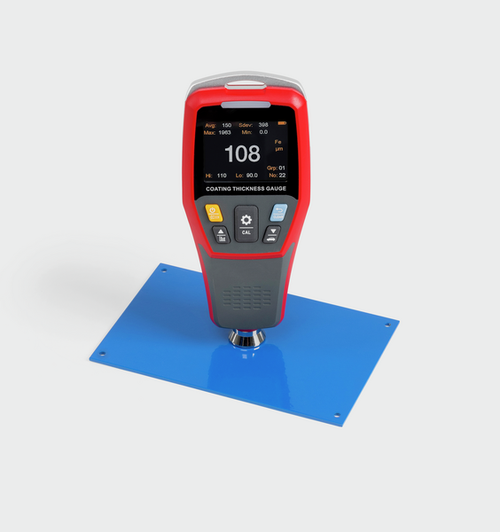

Coating thickness gauge - FE/NFE intern JCT 100 Measuring range coating thickness [d] (µm) 2000 µm

Kern SKU: JCT 100
Price: €440.00 Excluding VAT
  • Accurately determines the thickness of coats of paint or varnish on iron or non-iron base material
  • Combination of magnetic and eddy current measuring methods enables particularly high levels of precision and flexibility. The base material is detected automatically
  • Stable, reliable performance as well as non-destructive measuring
  • Measuring range up to 2000 µm
  • Low-wear sensor thanks to state-of-the-art technologies
  • Single and two-point calibration
  • Single and repeated measurements for pass/fail assessment. The three-colour LED display shows the current value attribute (green: qualified, red: below the limit value, yellow: above the limit value)
  • The display rotates automatically and makes it easier for the user to read the measured values from many different angles, or alternatively it can be locked in place manually
  • Selection of functions with automotive mode, voice transmission, Bluetooth App (for Android, no iOS support) and LED torch
  • Main application areas: Coating thickness measurement on metals in industry and research, for example in the automobile industry, metal processing, painting and inspection
  • Delivery in a practical box
Measuring range coating thickness [d] (µm) 2000 µm
Readability coating thickness [d] (µm) 0,1 µm
Tolerance (% of [Max]) 2%
Units µm, inch (mil)
Coating thickness gauge sensor type FE, NFE
Test object thickness coating Non-magnetic coatings on iron, steel, Type F, Coatings on non-magnetic metals, type N
Memory function
Statistic function
Continuous capture possible
Material housing plastic
Dimensions completely mounted (W×D×H) 152×65×35 mm
Interfaces Bluetooth, USB 2.0
Sensor placement position internal
GTIN/EAN number 4045761367760
