Accurately determines the thickness of coats of paint or varnish on iron or non-iron base material
Combination of magnetic and eddy current measuring methods enables particularly high levels of precision and flexibility. The base material is detected automatically
Stable, reliable performance as well as non-destructive measuring
Measuring range up to 2000 µm
Low-wear sensor thanks to state-of-the-art technologies
Single and two-point calibration
Single and repeated measurements for pass/fail assessment. The three-colour LED display shows the current value attribute (green: qualified, red: below the limit value, yellow: above the limit value)

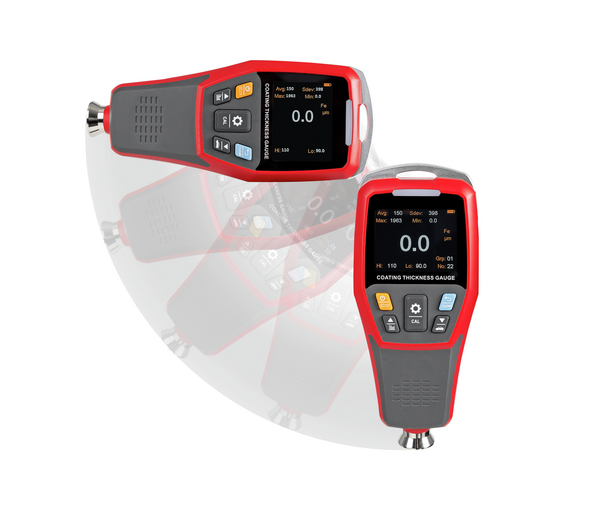

The display rotates automatically and makes it easier for the user to read the measured values from many different angles, or alternatively it can be locked in place manually
Selection of functions with automotive mode, voice transmission, Bluetooth App (for Android, no iOS support) and LED torch
Main application areas: Coating thickness measurement on metals in industry and research, for example in the automobile industry, metal processing, painting and inspection
Delivery in a practical box
Measuring range coating thickness [d] (µm)
2000 µm
Readability coating thickness [d] (µm)
0,1 µm
Tolerance (% of [Max])
2%
Units
µm, inch (mil)
Coating thickness gauge sensor type
FE, NFE
Test object thickness coating
Non-magnetic coatings on iron, steel, Type F, Coatings on non-magnetic metals, type N
Memory function
Statistic function
Continuous capture possible
Material housing
plastic
Dimensions completely mounted (W×D×H)
152×65×35 mm
Interfaces
Bluetooth, USB 2.0
Sensor placement position
internal
GTIN/EAN number
4045761367760
