Product Features:

 Full English interface operation, more convenient;

 2.7 inch OLED highlight screen, display clear, similar products show the largest size;

 excellent design, the host side of the design of a large non-slip, comfortable grip, patent protection;

 Menu-style operation, easy to operate

 The instrument uses two kinds of magnetic and eddy thickness method

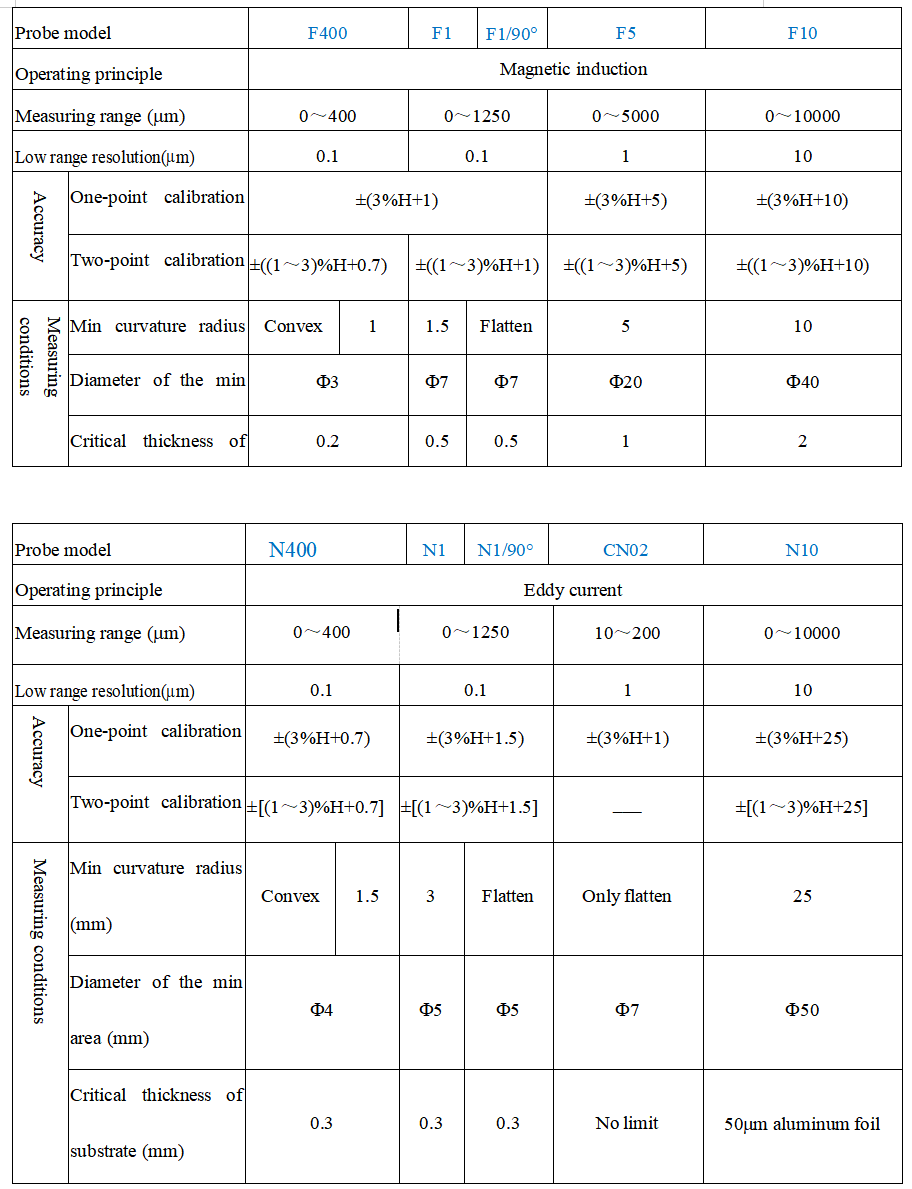

 can be equipped with seven kinds of probe F400, F1, F1 / 90 °, F10, CN02, N1

 Storage of 495 measurement results;

Limits Set: the limits of the measured value can automatically alarm; and histograms can be used to analyze a number of measurements;

 With the PC communication function: the measured value, statistical value can be transmitted to the PC, in order to further processing the data; USB connection to PC

 There are two ways to shut down: manual shutdown mode and automatic shutdown mode.

† Technic Parameter：

Testing Principle：   Magnetic induction (F) and eddy current (N).

Probe connection ：   Split wire connection (replaceable)

Temperature and Humidity：         0-40℃  20%RH～90%RH

Statistic function：mean (MEAN), maximum (MAX), minimum (MIN), number of tests (NO), standard deviation (S.DEV)

Work:   Direct mode (DIRECT) and group mode (Appl)

Measurement method:  continuous measurement method (CONTINUE) and a single measurement mode (SINGLE)

Upper and lower limit settings: Yes

Storage capacity:      495 measured values

Connect to a computer: connect to a computer

Shutdown:            manual and automatic

Power supply:         Li-ion battery

Integrated with printer for convenient use

Low battery indication

Standard Configuration:

Main unit
Calibration foil set: (50um, 100um, 200um, 500um, 1000um)；
Substrate metal
Probe
Instruction manual
Calibration certificate
Warranty card

Connection cable and Data -view software

†Optional Accessories :

Different probes：

F400、F1/90°、F10、CN02。
