Test principle: Magnetic method, eddy current method (two switchable)
• Compact structure, small size, and built-in sensor.
• Dot-matrix LCD display with a backlight.
• Easy to calibration (software calibration)
• USB data transmission.
• Multiple calibration modes, with more flexible use and more accurate measurement.
• Data statistics function.

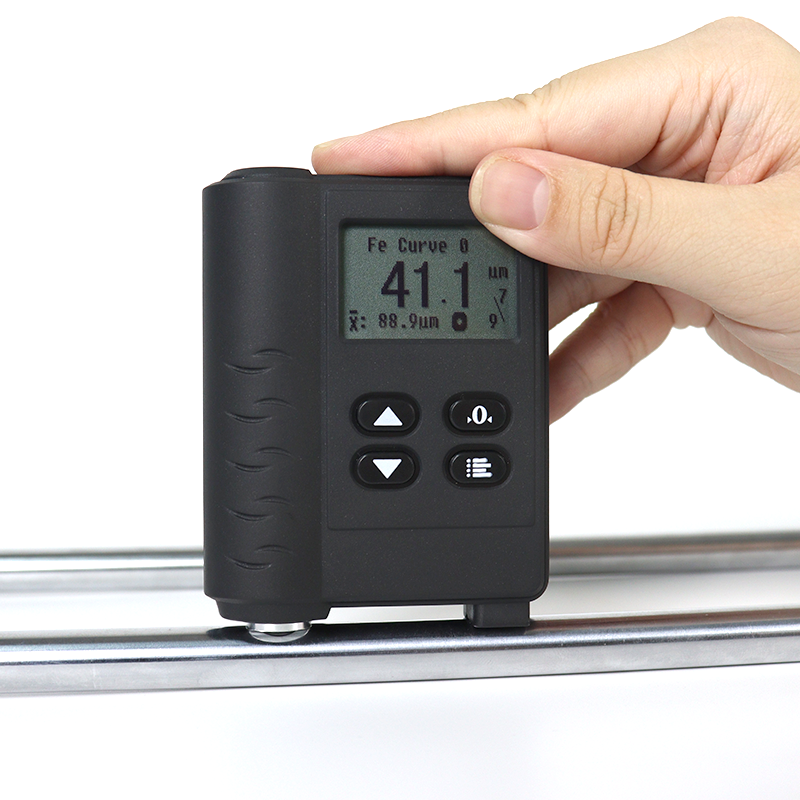

ACT210A Dual-use coating thickness gauge is a kind of portable measuring instrument, it can
quickly, no damage, precision coating, coating thickness measurement. It can be used in both the
laboratory and in the engineering site. This instrument adopts two thickness measurement methods,
magnetic and eddy current, can measure the thickness (aluminum, chromium, aluminum, copper,
enamel, rubber, paint, etc.), and copper, copper, aluminum, zinc, tin on magnetic metal substrate,
etc.) (enamel, rubber, paint, paint, plastic, etc.). The instrument can be widely used in electroplating,
anti-corrosion, aerospace, chemical industry, automobile, shipbuilding, light industry, commodity
inspection and other testing fields.
main features:
• Test principle: Magnetic method, eddy current method (two switchable)
• Compact structure, small size, and built-in sensor.
• Dot-matrix LCD display with a backlight.
• Easy to calibration (software calibration)
• USB data transmission.
• Multiple calibration modes, with more flexible use and more accurate measurement.
• Data statistics function.
technical parameter:
The test principle
Magnetic property method, eddy current method
measuring range: 0~1500μm (0 ~60 mil)display resolution
0~ 999μm: 0.1μm, ≥1000μm: 1μm
accuracy: 0~ 100μm: ± 1.5μm；101 ~ 1500μm: ≤ 1.5 %
data storage: 1500 Articles
indicator: Dot-matrix LCD with a backlight
source : 1.5V * 3 (3 # 7 alkaline dry cells).
working temperature: 0~ 50°C
size: 88 X 67 X 30 mm
standard delivery:
Coating thickness gauge, measuring matrix (iron matrix,
aluminum matrix), one set of (6 pieces) calibration sheet,
3 number 7 alkaline dry battery, USB communication line,
instruction manual
