Description
Optional Extras
3006238 OMRON Optical probe for height measurement
Standard: Beam φ100μm (S703) Price €6,950
1036040 CAD Importing software module €2,250
Description
-

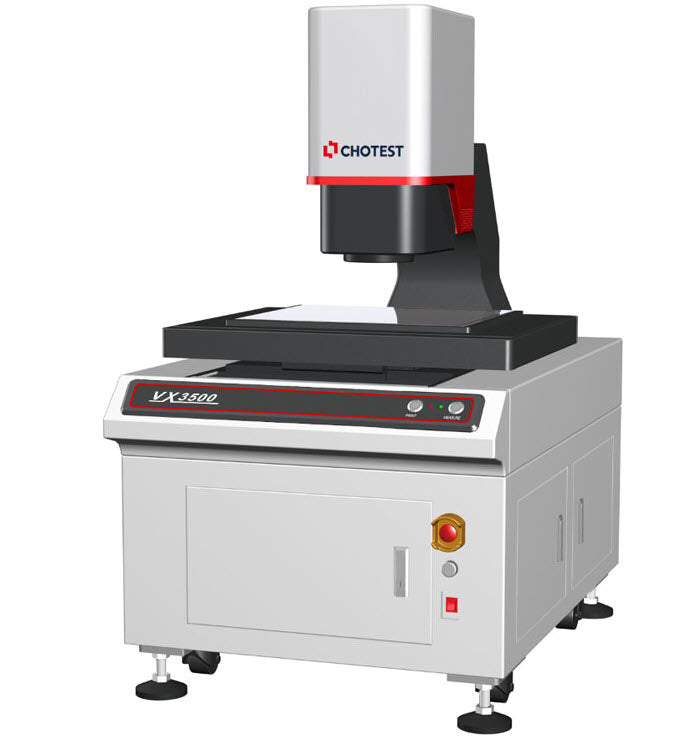

Item No.: VX8500Product name: Flash Measuring Machine
-
Image Senor: Industrial camera 20MP CMOS
-
Field of view：500*400mm/430*330mmAccuracy: ±3μm(Without Stitching)/±1.5μm(Without Stitching)Resolution: 0.1μmLoading Capacity: 20kgSize(LxWxH): 900×1340×1600mmWeight: 950kg
-
Based on visual measurement principle with precision image analysis algorithms, equipped with double telecentric optical lens with high depth of field, Flash Measuring Machines VX8500 achieve fast dimensional measurement by one-key operation. VX8500 is suitable for precise dimensional measurement in the fields of machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, printed circuit boards, medical equipment, watches, cutting tools, etc.
Parameters
Model VX8500 Image Senor 20M CMOS Monitor 24" LCD (XGA:1920×1080) Acceptance Lens Double Telecentric Lens Light Ring light Four-segment illumination(White Light/Green Light) Back light Telecentric transmission illumination(Green Light) Field of View Large field 500×400mm(4 Angle R50) High precision 430×430mm Resolution 0.1um Repeatability
of Image Meas.Wide field Without Stitching*1 ±1um With Stitching*2 ±2um High precision Without Stitching*1 ±0.5um With Stitching*2 ±1.5um Accuracy
of Image Meas.Wide field Without Stitching*1 ±3um With Stitching*2 ±(5+0.02L)μm High precision Without Stitching*1 ±1.5um With Stitching*2 ±(3+0.02L)μm Horizontal
Rotary Unit
(Optional)Rotation Angle Range 360°, Resolution 0.02° Rotation Speed 0.2~2rev/s Max Diameter Φ60mm Height Meas.
(Optical probe)
(Optional)Measuring Range(XY) 300*300mm Max Hole-Depth Ratio(h/φ) 1.64 Dia. of Beam Φ100μm(Φ18μm optional) Resolution 0.25μm Z Non-movement Range(Z) ±2mm Accuracy ±2μm Z Movement Range(Z) 200mm Accuracy ±(6+0.01H)μm, H is Z moving height in mm XY Object Table X Travel range 410mm Y Travel range 310mm Loading Capacity 20kg Z-Axis Travel range 200mm Size(LxWxH) 900×1340×1600mm Weight 950kg Input AC100~240V,50/60Hz,10A,2500W Working Environment Temp.10℃~35℃, Humidity 20%～80%, Vibration<0.002g, Less than 15Hz Note::
*1 In the focus position, the environment temperature is +20 °C ± 1.0 °C
*2 In the focus position, the environment temperature is +20 ℃ ± 1.0 ℃, and the load on the table is 2 kg or less; L is the moving range of the table (mm).Applications
VisionX Pro software provides up to 80 extraction analysis tools, including [Feature Extraction] (such as maximum points, centerlines, arcs, peaks, etc.), [Accessory Tools] (such as any dot & line & circle, fitted straight line, Fit circle, tangent, inscribed circle, etc.), [Smart Labeling], [shape tolerance] , special [Application Tool] (such as pitch distance, pitch angle, slot, thread, round cross, down Angle, rounded corners, etc.) The measurement results and their main statistical values (such as average, σ, 3σ, 6σ, Ca, Cp, Cpk, etc.) will be automatically recorded and archived. Operators can select different filter conditions for history extraction.
Stratistics
The trend graph displays the regular trend of the measured values, such as the monotonic and periodic change of the measured values, which can be used for monitoring the abnormality of the production process of producing equipment. Reflecting the status and distribution of fluctuations in product quality, the histogram can intuitively expose information about the quality situation in producing process, which can be used to predict product quality and failure rate. Through quality diagnosis and analysis with statistical methods, SPC can monitor the product quality and changing trend of the producing process. With SPC we can find the preventive solution in the producing process, so that the subsequent inspection and repair are reduced. Consequently, the producing process control and product quality improvement are achieved.
More Applications
