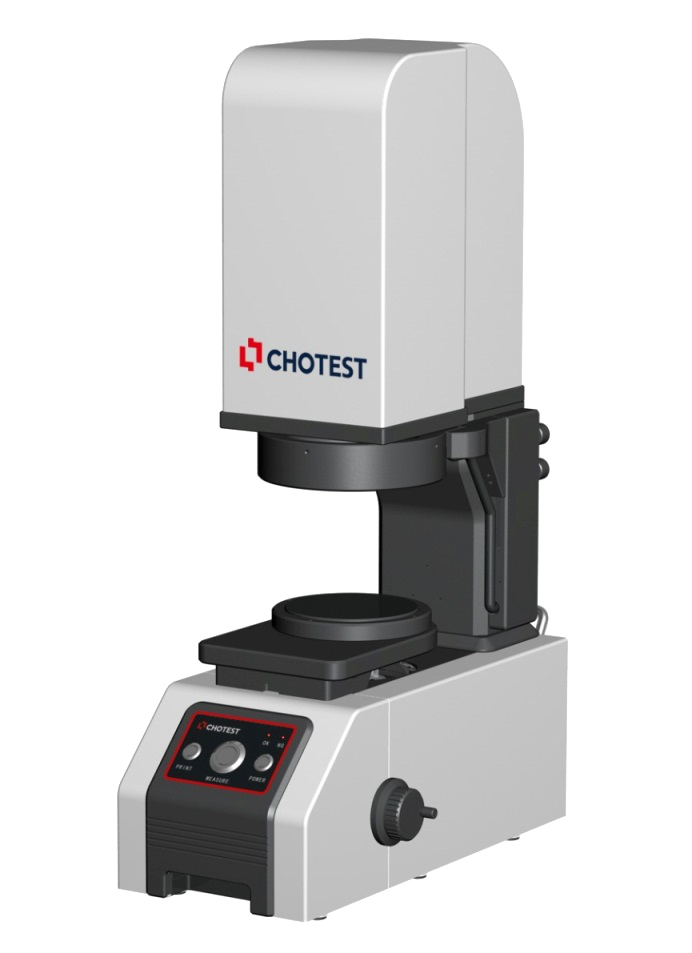

Chotest VX1100 Flash Measuring Machine Φ100mm FOV Accuracy ±3um, 20M CMOS

Optional Extras

3006238 OMRON Optical probe for height measurement
Standard: Beam φ100μm (S703) Price €6,950

1036040 CAD Importing software module €2,250

•

  Based on visual measurement principle with precision image analysis algorithms, equipped with double telecentric optical lens with high depth of field, VX3000 series of Flash Measuring Machines achieve fast dimensional measurement by one-key operation. VX3000 series are suitable for precise dimensional measurement in the fields of machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, printed circuit boards, medical equipment, watches, cutting tools, etc.



  Parameters

  Model No.		VX1060	VX1100
  Image Senor		20M CMOS
  Monitor		24" LCD (XGA:1920×1080)
  Acceptance Lens		Double Telecentric Lens
  Light	Ring Light	Four-segment illumination(White Ligh,Manual up & down)
  	Back Light	Telecentric transmission illumination(Green Light)
  F.O.V.		Φ60mm	Φ100mm
  Repeatability of Image Meas.		±1um	±1μm
  Accuracy of Image Meas.*1		±2um	±3um
  Software		VisionX
  Resolution		0.1μm
  Z-Axis Travel Range		35mm
  Loading Capacity		5KG
  Size(LxWxH)		500×280×670mm
  Weight		25kg
  Input		AC100~240V, 50~60Hz,10A,300W
  Working Environment		Temp.10℃~35℃, Humidity 20%～80%, Vibration<0.002g, Less than 15Hz
  Remark: *1 In the focus position, the environment temperature is +20 °C ± 1.0 °C

  Applications

  VisionX software provides up to 80 extraction analysis tools, including [Feature Extraction] (such as maximum points, centerlines, arcs, peaks, etc.), [Accessory Tools] (such as any dot & line & circle, fitted straight line, Fit circle, tangent, inscribed circle, etc.), [Smart Labeling], [shape tolerance] , special [Application Tool] (such as pitch distance, pitch angle, slot, thread, round cross, down Angle, rounded corners, etc.)
  The measurement results and their main statistical values (such as average, σ, 3σ, 6σ, Ca, Cp, Cpk, etc.) will be automatically recorded and archived. Operators can select different filter conditions for history extraction.



  Stratistics

  The trend graph displays the regular trend of the measured values, such as the monotonic and periodic change of the measured values, which can be used for monitoring the abnormality of the production process of producing equipment. Reflecting the status and distribution of fluctuations in product quality, the histogram can intuitively expose information about the quality situation in producing process, which can be used to predict product quality and failure rate.
  Through quality diagnosis and analysis with statistical methods, SPC can monitor the product quality and changing trend of the producing process. With SPC we can find the preventive solution in the producing process, so that the subsequent inspection and repair are reduced. Consequently, the producing process control and product quality improvement are achieved.





  • • Item No.: VX1060 & VX1100
      Product name: Flash Measuring Machine
    • Image Senor: 20M CMOS
    • Resolution: 0.1μm
      Loading Capacity: 5kg
      Weight: 25kg



  •
