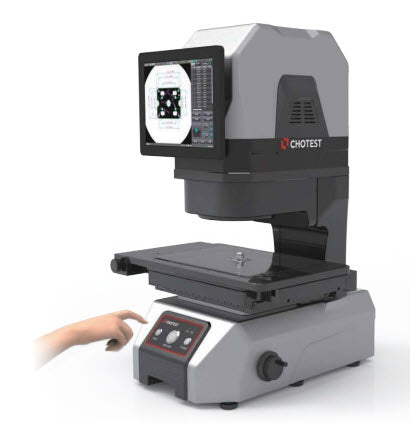

Chotest Flash Measuring Machine VX8300 Accuracy: ±3um, Image Senor: 20M CMOS, Measuring Range(XY) 120×110mm

Optional Extras

3006238 OMRON Optical probe for height measurement
Standard: Beam φ100μm (S703) Price €6,950

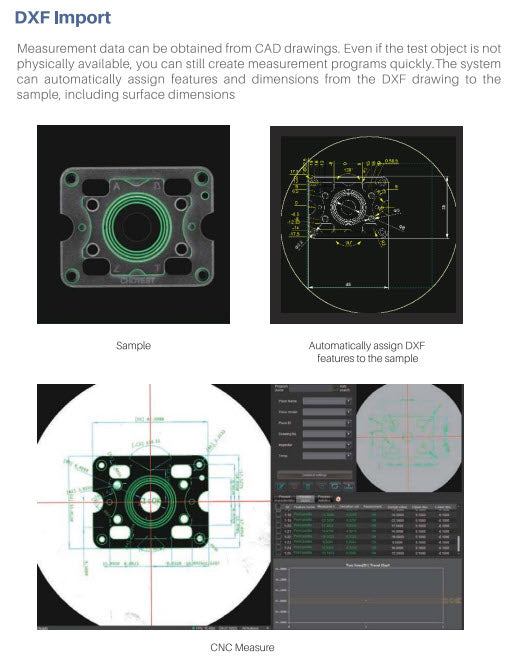

1036040 CAD Importing software module €2,250

PDF of VX8300 please click

• Item No.: VX8300
  Product name: Flash Measuring Machine
• Image Senor: 20MP CMOS
• Field of view： 300*200mm(Wide Field) / 230*130mm(High Precision)
  Resolution: 0.1μm
  Loading Capacity: 7.5kg
  Size(LxWxH): 531×503×731mm
  Weight: 75kg

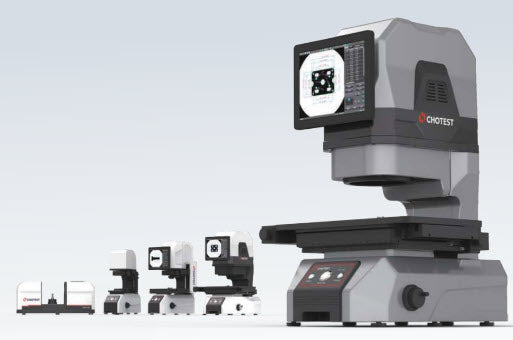

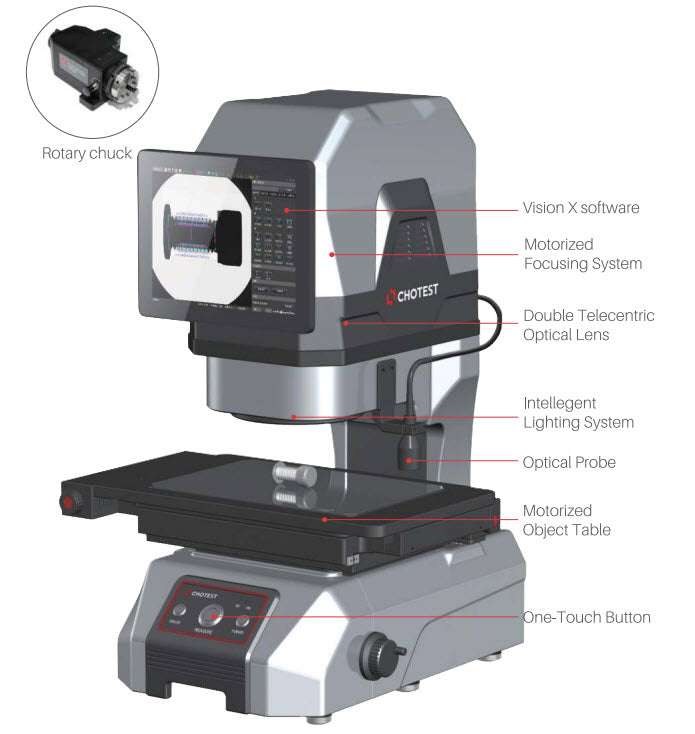

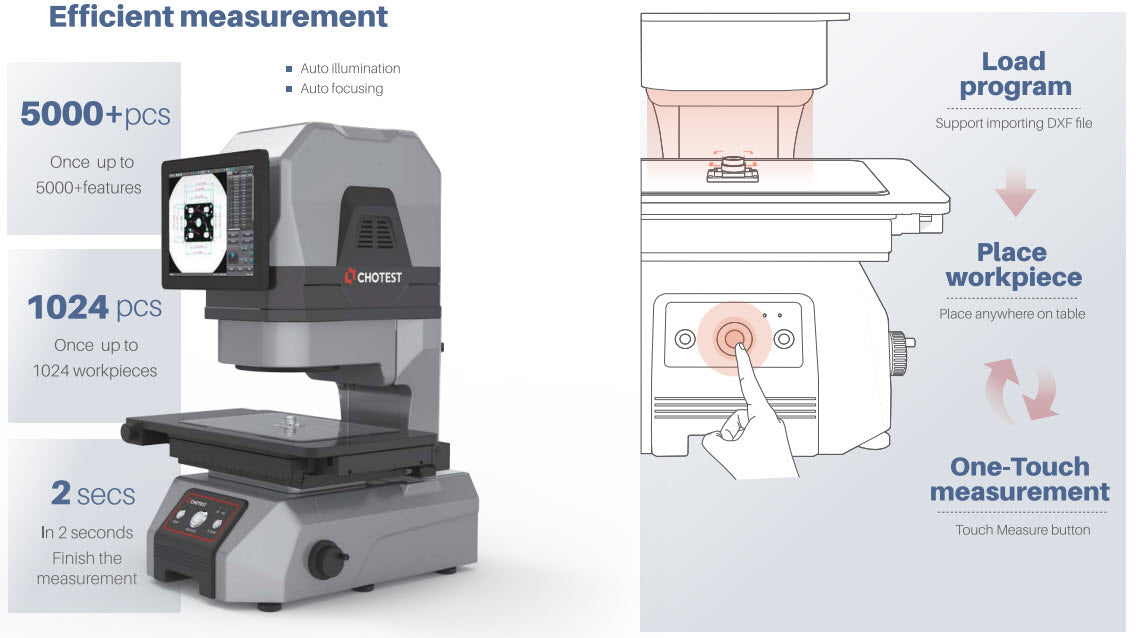

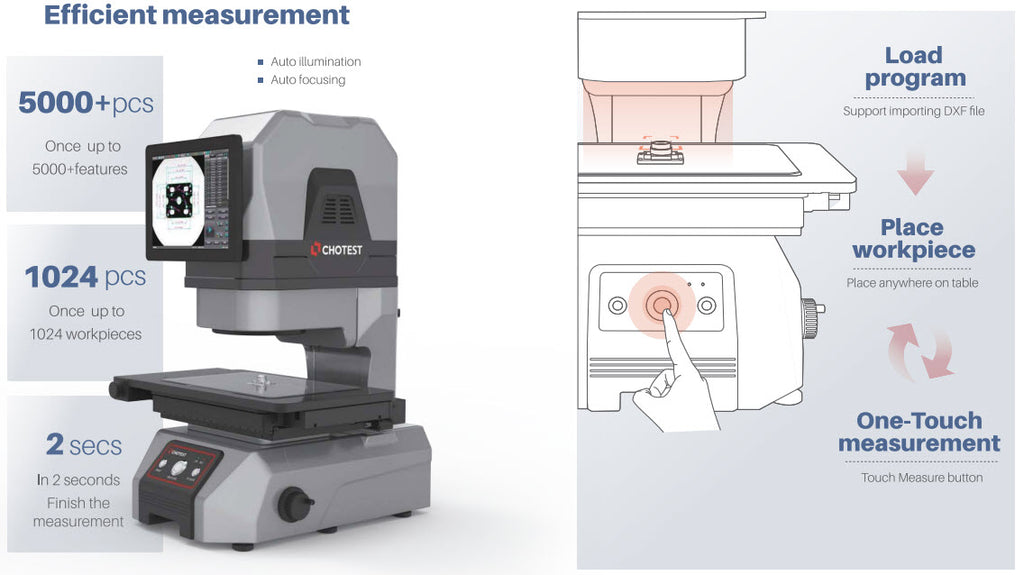

  Based on visual measurement principle with precision image analysis algorithms, equipped with double telecentric optical lens with high depth of field, VX8000 series of Flash Measuring Machines achieve fast dimensional measurement by one-key operation. VX8000 series are suitable for precise dimensional measurement in the fields of machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, printed circuit boards, medical equipment, watches, cutting tools, etc.





  Parameters

  Model			VX8300
  Image Senor			20MP CMOS
  Monitor	Built-in		10.4" LCD (XGA:1024×768)
  	Outside		24" LCD (XGA:1920×1080)(Optional)

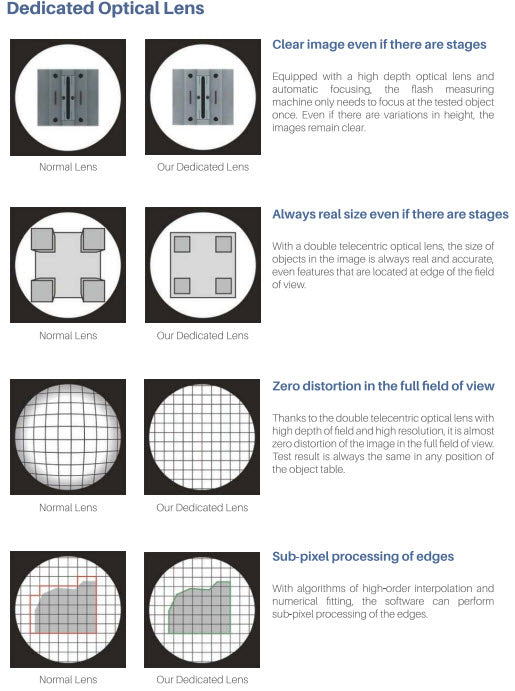

  Acceptance Lens			Double Tlecentric Lens

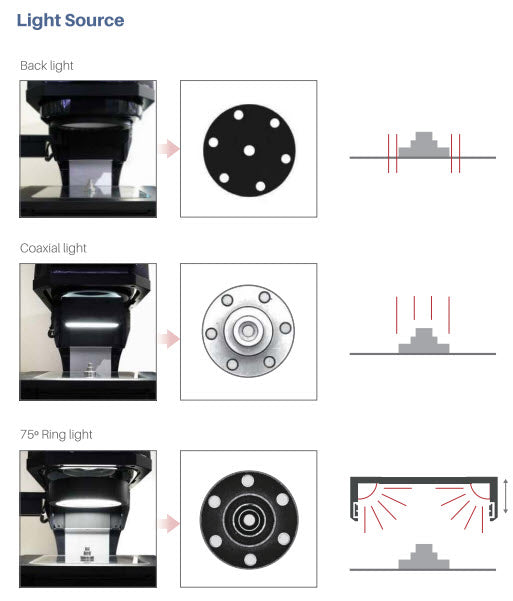

  Light	Ring Light		Four-segment illumination(White Light)
  	Back Light		Telecentric transmission illumination(Green Light)
  	Coaxial Light(optional)		LED parallel light
  F.O.V.	Wide Field		300*200mm
  	High Precision		230*130mm
  Resolution			0.1um
  Repeatability of Image Meas.	Wide Field	Without Stitching*1	±1um
  		With Stitching*2	±2um
  	High Precision	Without Stitching*1	±0.5um
  		With Stitching*2	±1.5um
  Accuracy of Image Meas.	Wide Field	Without Stitching*1	±3um
  		With Stitching*2	±(5+0.02L)μm
  	High Precision	Without Stitching*1	±1.5um
  		With Stitching*2	±(3+0.02L)μm
  Horizontal Rotary Unit (Optional)	Rotation Angle		Range 360°, Resolution 0.02°
  	Rotation Speed		0.2~2rev/s
  	Max Diameter		Φ60mm

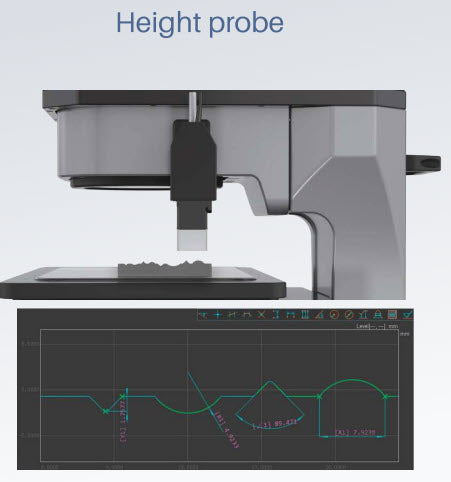

  Height Meas. (Optical probe) (Optional)	Measuring Range(XY)		120×110mm
  	Max Hole-Depth Ratio(h/φ)		1.64
  	Dia. of Beam		Φ100μm(Φ18μm optional)
  	Resolution		0.25μm
  	Z Non-movement	Range(Z)	±2mm
  		Accuracy	±2μm
  	Z Movement	Range(Z)	75mm
  		Accuracy	±(6+0.01H)μm, H is Z moving height in mm
  XY Object Table	X Travel range		210mm
  	Y Travel range		110mm
  	Loading Capacity		7.5kg
  Z-Axis Travel range			75mm
  Size(LxWxH)			531×503×731mm
  Weight			75kg
  Input			AC100~240V, 50/60Hz,2A,300W
  Working Environment			Temp.10℃~35℃, Humidity 20%～80%, Vibration<0.002g, Less than 15Hz

  Remark:

  *¹ In the focus position, the environment temperature is +20 °C ± 1.0 °C

  *²  In the focus position, the environment temperature is +20 °C ± 1.0 °C, and the load on the table is 2 kg or less; L is the moving range of the table (mm)

  Applications

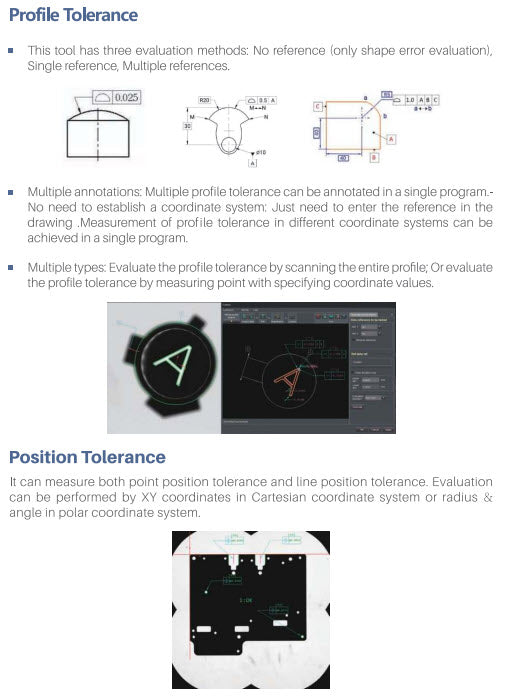

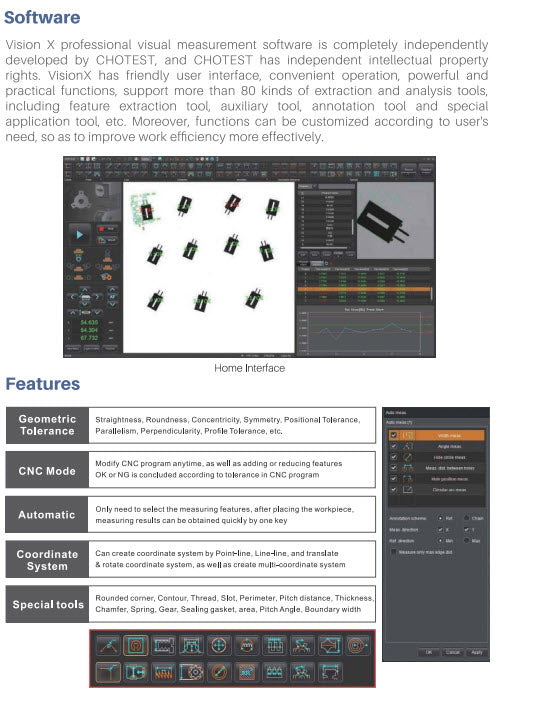

  VisionX software provides up to 80 extraction analysis tools, including [Feature Extraction] (such as maximum points, centerlines, arcs, peaks, etc.), [Accessory Tools] (such as any dot & line & circle, fitted straight line, Fit circle, tangent, inscribed circle, etc.), [Smart Labeling], [shape tolerance] , special [Application Tool] (such as pitch distance, pitch angle, slot, thread, round cross, down Angle, rounded corners, etc.)

  The measurement results and their main statistical values (such as average, σ, 3σ, 6σ, Ca, Cp, Cpk, etc.) will be automatically recorded and archived. Operators can select different filter conditions for history extraction.





  Stratistics

  The trend graph displays the regular trend of the measured values, such as the monotonic and periodic change of the measured values, which can be used for monitoring the abnormality of the production process of producing equipment. Reflecting the status and distribution of fluctuations in product quality, the histogram can intuitively expose information about the quality situation in producing process, which can be used to predict product quality and failure rate.

  Through quality diagnosis and analysis with statistical methods, SPC can monitor the product quality and changing trend of the producing process. With SPC we can find the preventive solution in the producing process, so that the subsequent inspection and repair are reduced. Consequently, the producing process control and product quality improvement are achieved.
