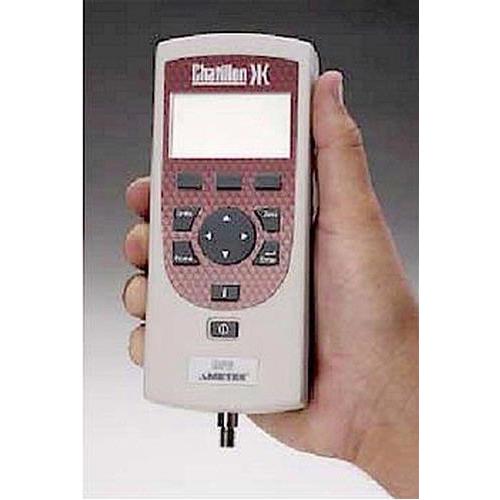

The Chatillon DFE series digital force gauge This compact, easy to use force gauge is designed for economy applications without compromising functionality. The Chatillon DFE digital force gauge is ideal for both hand held and test stand applications. The DFE gauge is available in capacities from 2 pounds (10 N) to 500 pounds (2500 N). The DFE features an integral loadcell with a measurement accuracy of better than 0.25% full scale.
A large, easy to read, high resolution dot matrix LCD display supports a variety of standard gauge functions, including normal and peak readings, high / low limits, setpoints, pass / fail results, statistical results, loadcell actuation and direction. Loads are displayed in oz, g, lb, kg and N units. The display can be inverted and displayed results may be hidden from the operator.
The Chatillon DFE digital force gauge may be specified with or without RS232 serial communication. All DFE gauges come with a carrying case, adapter / charger, testing accessories and NIST Certificate of Calibration with data.
Features:
- Two models and 7 capacities each
- DFE Series (no outputs)
- E-DFE Series (with digital and analog outputs)
- Advanced Operating Modes
- Normal
- Peak tension and compression
- Load limits
- Pass-fail limits
- Statistical Calculations
- Mean with maximum and minimum values
- Coefficient of variation with mean and standard deviation
- Standard deviation with variance and mean
- Percent differentiation
- Integral Loadcells
- Accuracy ±0.25% full scale
- Mechanical overload protection to 150% full scale
- Simple Operator Interface
- High resolution display
- Menus, prompts and function keys for easy use
- Optional Outputs (standard on E-DFE models): RS-232 serial data, Mitutoyo Digimatic, ±2Vdc Analog
- NIST Calibration with Data - available IEC/ISO17025 cert with uncertainty
- 2 year warranty
| Model |
DFE Series Without Outputs |
| ounce |
gram |
pound |
kilogram |
Newton |
| DFE-002 |
32 x 0.04 |
1000 x 1 |
2 x 0.002 |
1 x 0.001 |
10 x 0.01 |
| DFE-010 |
160 x 0.2 |
5000 x 5 |
10 x 0.01 |
5 x 0.005 |
50 x 0.05 |
| DFE-025 |
400 x 0.5 |
10000 x 10 |
25 x 0.02 |
10 x 0.01 |
100 x 0.1 |
| DFE-050 |
800 x 1 |
25000 x 20 |
50 x 0.05 |
25 x 0.02 |
250 x 0.2 |
| DFE-100 |
1600 x.2 |
50000 x 50 |
100 x 0.1 |
50 x 0.05 |
500 x 0.5 |
| DFE-200 |
3200 x 4 |
- |
200 x 0.2 |
100 x 0.1 |
1000 x 1 |
| DFE-500 |
8000 x 10 |
- |
500 x 0.5 |
250 x 0.2 |
2500 x 2 |
| Model |
E-DFE Series with RS232, Mitutoyo and Analog Outputs |
| E-DFE-002 |
32 x 0.04 |
1000 x 1 |
2 x 0.002 |
1 x 0.001 |
10 x 0.01 |
| E-DFE-010 |
160 x 0.2 |
5000 x 5 |
10 x 0.01 |
5 x 0.005 |
50 x 0.05 |
| E-DFE-025 |
400 x 0.5 |
10000 x 10 |
25 x 0.02 |
10 x 0.01 |
100 x 0.1 |
| E-DFE-050 |
800 x 1 |
25000 x 20 |
50 x 0.05 |
25 x 0.02 |
250 x 0.2 |
| E-DFE-100 |
1600 x.2 |
50000 x 50 |
100 x 0.1 |
50 x 0.05 |
500 x 0.5 |
| E-DFE-200 |
3200 x 4 |
- |
200 x 0.2 |
100 x 0.1 |
1000 x 1 |
| E-DFE-500 |
8000 x 10 |
- |
500 x 0.5 |
250 x 0.2 |
2500 x 2 |
Specifications
-
Accuracy: ±0.25% of full scale ± LSC
-
Certification: calibration with NIST data, IEC/ISO17025 optional
-
Data Sampling Rate: 5000 Hz
-
Peak Capture Rate: 5000 Hz
-
Display Update Rate: 10 Hz
-
Tare Capacity: 10% full scale
-
Overload Protection: 150% full scale
-
Display Characteristics: high resolution, dot matrix LCD, 8 lines, 40 characters, adjustable contrast, invert and hide capability
-
Automatic Shut Down: configurable time. May be disabled.
|
-
Data Storage: 10 results, optional NEXYGEN software for unlimited storage and automated testing and analysis.
-
Test Stand Control: Compatible with Chatillon TCD series test stands
-
Outputs (E-DFE models) : RS-232, Mitutoyo (Digimatic) and ±2Vdc analog
-
Power: Battery or direct AC operation. Universal Power: 120V / 230V, Rechargeable nickel metal hydride (supplied)
-
Battery Life: 30 hours, continuous use. Gauge may be operated with direct AC power source
- Instrument Weight: 1.5 lbs
-
Operating Temperature: 40 to 100 F (4 to 38 C)
-
Warranty: 2 years
|
