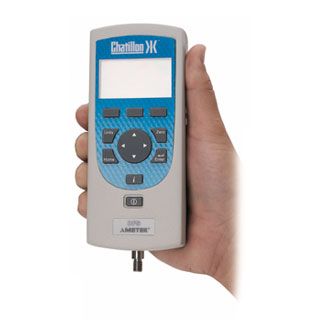

The Chatillon DFS series offers the best price performance of any digital force gauge available today. This compact, easy to use force gauge is designed for basic and complex applications. Ideal for hand held or test stand applications, the DFS may be equipped with integral loadcells or smart remote sensors for load measurement or torque measurement. Measurement accuracy is better than 0.1% full scale. A large, easy to read, high resolution dot matrix LCD display supports a variety of standard gauge functions including normal and peak readings, high/low limits, setpoints, pass/fail results, statistical results, load averaging, load comparisons, percentage and sharp break detection, loadcell actuation and direction. Loads are displayed in ozf, gf, lbf, kgf and N units. The display can be inverted and displayed results may be hidden from the operator.
The Chatillon DFS force gauge comes standard with an RS-232 cable, carrying case, battery adapter / charger, testing accessories and NIST Certificate of Calibration with data.
Features:
- Eight models and capacities
- Advanced Operating Modes
- Normal
- Peak tension and compression
- Percentage or sharp break detection
- Load comparisons and load averaging
- Contact closure
- Load limits
- Pass-fail limits
- Statistical Calculations
- Mean with maximum and minimum values
- Coefficient of variation with mean and standard deviation
- Standard deviation with variance and mean
- Percent differentiation
- Integral Loadcells
- Accuracy ±0.1% full scale
- Mechanical overload protection to 150% full scale
- Simple Operator Interface
- High resolution display
- Menus, prompts and function keys for easy use
- Standard Outputs - RS-232 serial data, Mitutoyo Digimatic, ±2Vdc Analog
